Ss Cs Ms Copper Metal Fiber Laser Cutter With Raycus Laser Source Precitec Head
Ss Cs Ms Copper Metal Fiber Laser Cutter With Raycus Laser Source Precitec Head
Specifications
Brand Name :
keyi
Model Number :
KY-C3015
Certification :
CE
Place of Origin :
hubei
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
5-7 working days
Packaging Details :
wooden packing
Cutting Thickness: :
0-30mm
Cutting Speed: :
500mm/min
Control Software: :
Cypcut Control System
Servo motor :
France Schneider
Function: :
Cutting Metal Materials
Laser Type: :
fiber laser
Cutting Area :
1300*2500mm
Description

High-Speed Precision Fiber Laser Cutting Machine 500W 1000W

Features of metal laser cutting machines

  • The medium-power laser cutting machine with the highest precision in China, it can cut small metal bike design with size of half a coin and good cut 6mm mild steel,120 holes can be cut within one minute.
  • 600℃ heat treatment, 24 hours cooling in the oven, 8 meters gantry milling, accurate CO2 protection welding, to make sure 20 years usage without deformation.
  • Using laser electrical cabinet integration design, cover small area , save space, minimalist design.
  • Scrap car symmetrical design, both sides can clean up the waste; Put machine to the romm has no left and right requirements; Pneumatic lifter device to prevent the material from scratching.
  • Specially used for cutting 0.5-6mm carbon steel, 0.5-5mm stainless steel, galvanized steel, electrolytic zinc-coated steel sheet, silicon steel and other kinds of thin metal sheets.1000W can cut 3mm aluminum and 2mm copper.

Applied Fields of laser cutting machine:

Laser Metal Cutting machine is widely used in hardware, precise machinery, automobile components, glasses clocks and watches, precise cutting, medical equipment, instrument and other metal related industry.

It can zarry on non-contact cutting on metal sheet, pipe, especially for stainless steel, sttel plate,diomond saw blades and othermetal materials, it has excellent processiong for the various high-brittle hard alloys. In the lines of hardware and metal sheet industries, laser cutting technology can be partially replace the line cutting.

Product specification

Fiber Laser Cutting Machine Technical Parameters
Laser Type Fiber laser
Laser Brand IPG / Raycus
Laser Power 500W (750W / 1000W /2000W/3000W/4000W optional)
Working area 1500mmX3000mm 1300x2500mm 2000*4000mm Optional
Working Table Fixed Working Table
Control System PMAC full-closed loop servo control
Driving Mode Double gear rack driving
Positioning Accuracy 0.05mm
Protection System Enclosure protection
Cutting Head Precitec / Laser Mech /
Power Supply AC380V ± 5% 50 / 60Hz
Total Power 7KW~11KW
Standard Collocation

Metal nesting software, dual-pressure
gas route of 3 kind gas sources, dynamic focus, remote controller, etc.
Software CutMax Laser Cutting Software or PA8000 software, Metal Nesting Software
Supported Format PLT, DXF, BMP, AI, DST, DWG, etc.

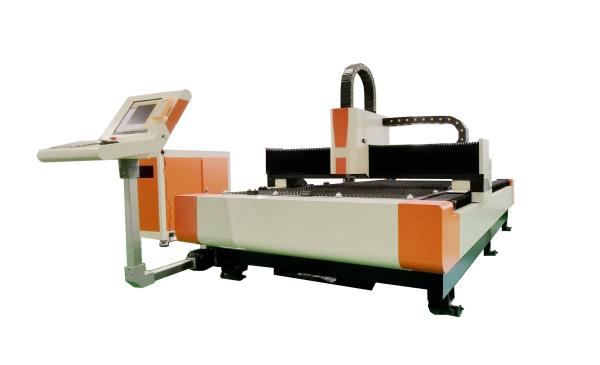

Product picture:
Ss Cs Ms Copper Metal Fiber Laser Cutter With Raycus Laser Source Precitec Head
Ss Cs Ms Copper Metal Fiber Laser Cutter With Raycus Laser Source Precitec Head


Sample show:
Ss Cs Ms Copper Metal Fiber Laser Cutter With Raycus Laser Source Precitec Head
