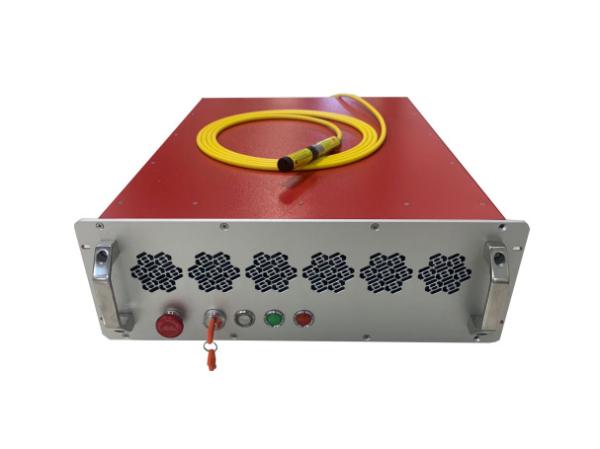

CS QCW Fiber Laser Source 75W-1500W For PCB Welding
CS QCW Fiber Laser Source 75W-1500W For PCB Welding
CS QCW Fiber Laser Source 75W-1500W For PCB Welding
CS QCW Fiber Laser Source 75W-1500W For PCB Welding
CS QCW Fiber Laser Source 75W-1500W For PCB Welding
CS QCW Fiber Laser Source 75W-1500W For PCB Welding
CS QCW Fiber Laser Source 75W-1500W For PCB Welding
CS QCW Fiber Laser Source 75W-1500W For PCB Welding
Specifications
Brand Name :
CS
Model Number :
CS-1500W
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Can be negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Laser model :
CS-1500W
Laser brand :
CS
The warranty time :
1 year
After-sales service :
Solve online
Description

Product introduction

The QCW fiber laser series developed by us ranges from 75W to 1500W, with higher electro-optical conversion efficiency, better optical quality and lower maintenance cost. This series product is a perfect alternative of existing light-pumped YAG laser and is an ideal choice for spot welding, seam welding, boring and other industrial applications,which requires wide pulse and high peak out power due to its diversified compatibility and the convenience for most YAG systems to use with simple transformation. we has a number of R&D teams with outstanding innovation ability and it can meet diversified demands of the customers for this series product to the greatest extent and provide specialized customized services.

Product features

♦Low average power

♦High peak value

♦High single pulse energy

product application

♦Alternative of Light-Pumped YAG Lasers

♦Spot/Seam Welding

♦Ceramics Cutting

♦Precision Welding /Cutting

♦Electronic Parts Processing

♦Power Battery Welding

♦Soldering

♦PCB Welding

Product specification

♦Optical characteristics

N Characteristics Value (Range) Unit
1 Central Wavelength 1070-1090 nm
2 Spectral width @ 3dB < 5 nm
3 Max. Avg Power CW Mode 300 W
Pulsed Mode 150 W
4 Max. Peak Power 1500 W
5 Max. Pulse Energy 15 J
6 Operation Mode Pulsed / CW /
7 Power Turning Range 10 - 100 %
8 Pulse Duration 0.02-50 ms
9 Operation Frequency ≤5 kHz
10 Duty Cycle ≤50 %
11 Laser switching ON/OFF time < 10 μs
12 Output Power Instability < 3 %
13 Beam Quality (M2) < 1.2 /
14 Polarization Random /
15 Red Guide Laser Power 1-2 mW
16 Output Fiber Termination QCS or QBH(Default) /
17 QBH Beam Divergence <120 mrad
18 QCS collimated beam diameter(4σ) 6±0.5 mm
19 Delivery Fiber Length 5 m
20 Output Fiber Core Diameter 14 μm
CS QCW Fiber Laser Source 75W-1500W For PCB Welding Peak Power / %

Electrical characteristics

N Characteristics Value (Range) Unit
21 Analog Power Control 1-10 V
22 Input AC Voltage 220 VAC
23 Laser Operating Current < 10 A
24 Maximum Power Consumption <1680 W
♦Environmental requirements
N Characteristics Value (Range) Unit
25 Operating Ambient Temperature Range 0 - 40 ℃
26 Storage Temperature -10 ~ 60 ℃
27 Cooling Method Forced Air /

Structural characteristics

N Characteristics Value (Range) Unit
28 Laser Color Red /

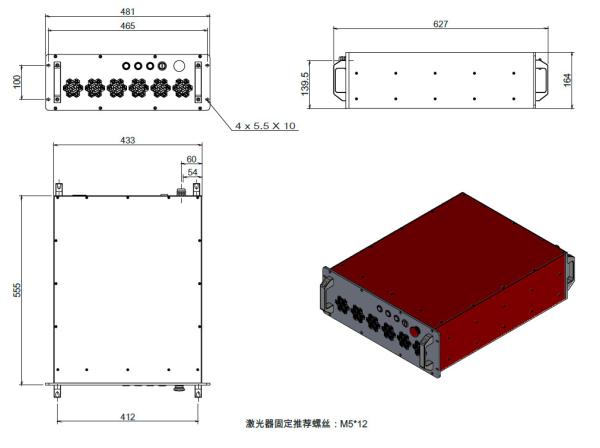

29 Laser Dimensions 555*433*164(not i nclude handle) mm

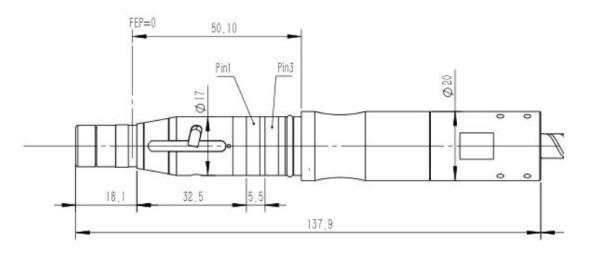

30 QBH Dimension Standard /

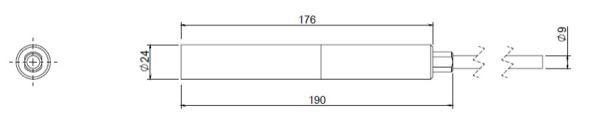

31 QCS Dimension Φ24*190(Optional) mm
32 Net Weight <40 kg
