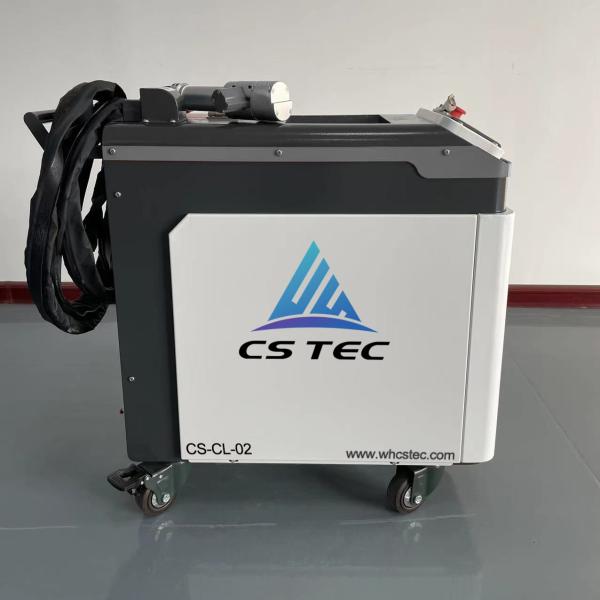

Customized Pulsed 1000w Fiber Laser Cleaner Machine For Metal Descaling
Customized Pulsed 1000w Fiber Laser Cleaner Machine For Metal Descaling
Customized Pulsed 1000w Fiber Laser Cleaner Machine For Metal Descaling
Customized Pulsed 1000w Fiber Laser Cleaner Machine For Metal Descaling
Specifications
Brand Name :
CS
Model Number :
CS-CL-02
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Can be negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Product name :
Cleaning Machine
Application :
Metal Cleaning
Laser Power :
1000W
Logo :
Accept Customized Logo
Package :
Accept Customized Package
After-sales service :
Solve online
Description

Product introduction

CS-CL-02 1000w is the new generation product with a high technology that applies for the purpose of the material surface cleaning application, which is easily to be set up, operated and automated. No need of chemistry, water or other working medias, the equipment can be also applied for removing the resin, grease, stains, dirt, rust material, coating, coating and paint. This device can be auto-focused on a specified area of the target surface of the material, which leads to a high performance of cleanliness result.

Product features

♦Non-contact cleaning, no damage to parts matrix

♦Precise position and size selective cleaning

♦No need of any chemical cleaning liquid, no consumables, safe and environment friendly

♦Simple operation, can achieve automatic cleaning by handheld or with manipulator

Advantages

♦No chemical solution is needed, and there is no environmental pollution caused by chemical cleaning. It is a new technology, new process and new method to replace pickling and phosphating.

♦Laser cleaning is non-contact. It can be transmitted through optical fiber and combined with robots or manipulators to conveniently realize long-distance operation. It can clean parts that are not easily reached by traditional methods. Good choice.

Product application

Widely used shipbuilding, auto repair, rubber molds, high-end machine tools, rails and environmental protection industry.

Product specification

Operating Evironment
Voltage 220V/380V,50/60Hz AC
Overall power consumption 8KW
Operating Temperature 5℃～40℃
Operating Humidity ≤80%
Optical parameters
Average laser power ≥1000W
Power instability ＜2%
Power adjustment range (%) 10-100(The gradient is adjustable)
Repetition frequency (kHz) 20-200(The gradient is adjustable)
Fiber length 5-10m
Cooling way water-cooling
Cleaning head parameters
Scanning range (length * width) 0mm~300m,Continuously adjustable；
Scanning frequency maximum of 300Hz
Focal length of field lens (mm) 500mm
Focal depth maximum of 10mm

Application samples

Customized Pulsed 1000w Fiber Laser Cleaner Machine For Metal DescalingCustomized Pulsed 1000w Fiber Laser Cleaner Machine For Metal Descaling
