Products Description
Product Name
Scanner
Warranty
1 year
Brand Name
SINO-GALVO
Model
SG2206
SG7110
Speed
Marking Speed
6000mm/s
5000mm/s
Positioning Speed
11000mm/s
8000mm/s
Write speed
516cps
450cps
Step response time
(1% of full stroke)
288us
350us
Step response time
(10% of full stroke)
895us
750us
Tracking error
≤164us
≤164us
Accuracy and error
Linearity
99.9%
99.9%
Repeatability
＜8μRad
＜8μRad.
Gain error
＜5mRad.
＜5mRad.
Zero offset (batch origin error)
＜5mRad.
＜5mRad.
Long time drift
(8 hours of continuous work)
＜0.5mRad.
＜0.5mRad.
Scale drift
＜40PPM/℃
＜40PPM/℃
Zero drift
＜15μRad./℃
＜15μRad./℃
Lens damage threshold
K9 matrix
9.1J/cm^2
9.1J/cm^2
Si substrate
10J/cm^2
10J/cm^2
Lens reflection wavelength
10600nm / 1064nm / 355nm
10600nm / 1064nm / 355nm
Power and signal
Input voltage
±15VDC
±15VDC
Average working current
2A
2A
Signal interface
digital:XY2-100
simulation:±5V

XY2-100
Peak current
8A
-
Position signal input impedance

10KΩ±1%
-
Mechanical scanning angle
±11°
±11°
Working current, temperature, size
Operating temperature
0℃--45℃
0℃~45℃
Storage temperature
-10℃--60℃
-10℃~60℃
Laser input aperture
10mm
10mm

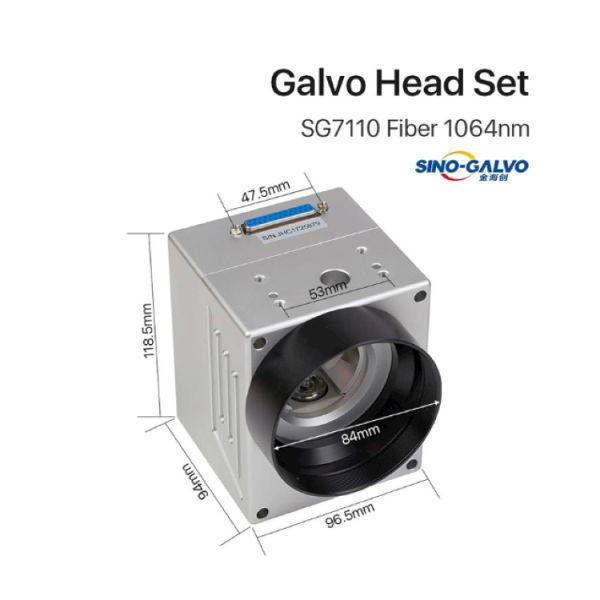

size (length×width×height)
118.5×96.5×94.1mm
118.5×96.5×93.6mm
Weight
≈1.65Kg
≈1.65Kg
