Product introductions

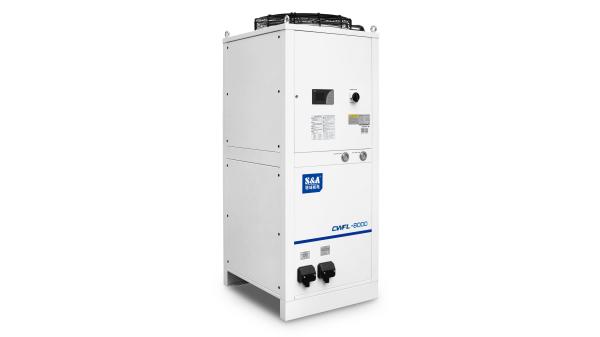

Industrial water cooling system CWFL-8000 is often used to mitigate the heat that is generated in the fiber laser machine up to 8KW. Thanks to its dual temperature control circuit design, both the fiber laser and the optics can be perfectly cooled. The refrigerant circuit system adopts solenoid valve bypass technology to avoid frequent start and stop of the compressor to prolong its service life. Water tank is made of stainless steel with 125L capacity while a fan-cooled condenser features superior energy efficiency. Available in 380V 50HZ or 60hz, CWFL-8000 fiber laser chiller works with Modbus-485 communication, allowing a higher level of connection between the chiller and the laser system.

Product features

♦Dual cooling circuit

♦Active cooling

♦Temperature stability: ±1°C

♦Temperature control range: 5°C ~35°C

♦Refrigerant: R-407C

♦Intelligent digital control panel

♦Integrated alarm functions

♦Back mounted fill port and easy-to-read water level check

♦RS-485 Modbus communication function

♦High reliability, energy efficiency and durability

♦Available in 380V

Product specification

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Details

Dual temperature control

The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the temperature of the optics.

Dual water inlet and water outlet

Water inlets and water outlets are made from stainless steel to prevent potential corrosion or water leakage.

Easy drain port with valve

Draining process can be controlled very easily.

Ventilation Distance

Product Working Principle
