1KW Fiber Laser Machine Parts Dual Circuit Water Cooling Industrial Chiller
1KW Fiber Laser Machine Parts Dual Circuit Water Cooling Industrial Chiller
Specifications
Brand Name :
CS
Model Number :
CWFL-1000
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Can be negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Product name :
Water Chiller
Application :
Laser cooling
After Warranty Service :
Online support
Local Service Location :
None
After-sales Service Provided :
Online support
Description

Product introductions

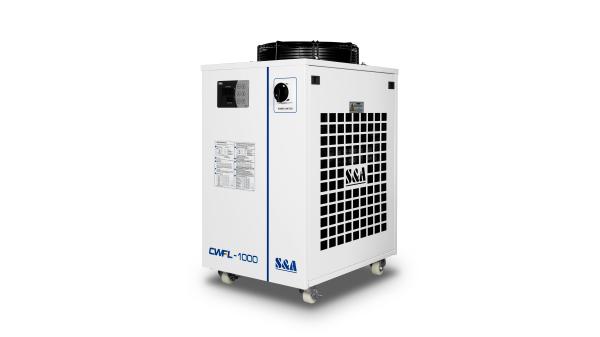

CWFL-1000 is a high efficiency dual circuit process water chiller ideally suited for cooling fiber laser system up to 1KW. Each of the cooling circuit is independently controlled and has its own mission - one serves for cooling the fiber laser and the other serves for cooling the optics. That means you don’t need to buy two separate chillers. This laser water chiller uses nothing but components that conform to CE, REACH and RoHS standards. Providing active cooling featuring ±0.5℃ stability, CWFL-1000 water chiller can increase the lifetime and improve the performance of your fiber laser system.

Product features

♦Dual cooling circuit

♦Active cooling

♦Temperature stability: ±0.5°C

♦Temperature control range: 5°C ~35°C

♦Refrigerant: R-410a

♦User-friendly controller interface

♦Integrated alarm functions

♦Back mounted fill port and visual water level

♦Optimized for high performance at low temperatures

♦Ready for immediate use

Product specification

Model CWFL-1000AN CWFL-1000BN
Voltage AC 1P 220-240V AC 1P 22-2400V
Frequency 50Hz 60Hz
Current 0.9~8.12A 0.9~8.22A
Machine power 2.34kW 2.39kW
Electric assisted power 600W+600W
Precision ±0.5℃
Reducer Capillary
Pump power 0.13kW
Tank capacity 14L
Inlet and outlet Rp1/2"+Rp1/2"
Lift 40M
Rated flow 2L/min + >12L/min
N.W. 44Kgs
G.W. 50Kgs
Dimension 59 X 38 X 74cm (LXW X H)
Package dimension 68 X 53 X 92cm (LXWX H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Details

Dual temperature control

1KW Fiber Laser Machine Parts Dual Circuit Water Cooling Industrial Chiller

The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the temperature of the optics.

Dual water inlet and water outlet

1KW Fiber Laser Machine Parts Dual Circuit Water Cooling Industrial Chiller

Water inlets and water outlets are made from stainless steel to prevent potential corrosion or water leakage.

Caster wheels for easy mobility

1KW Fiber Laser Machine Parts Dual Circuit Water Cooling Industrial Chiller

Four caster wheels offer easy mobility and unmatched flexibility.

Ventilation Distance

1KW Fiber Laser Machine Parts Dual Circuit Water Cooling Industrial Chiller

Product Working Principle

1KW Fiber Laser Machine Parts Dual Circuit Water Cooling Industrial Chiller
