ZOOM High Power Fiber Laser Processing Head For Metal Cutting 12000W 8000W
ZOOM High Power Fiber Laser Processing Head For Metal Cutting 12000W 8000W
Specifications
Brand Name :
Raytool
Model Number :
BM116
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Can be negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Laser Power :
6000/8000/12000W
clear :
50.8mm
Interface :
QBH,QD,Q+
Description

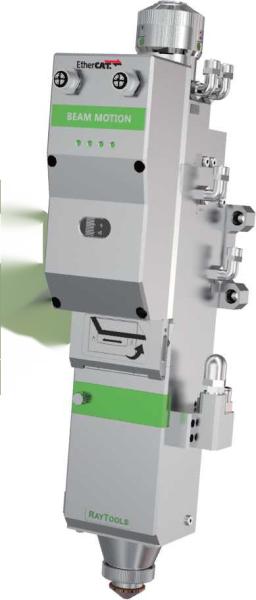

BM116 SERIES

ZOOM High Power Automatic Focusing Cutting Head

Power Rate: 6000/8000/12000W

♦Visual monitoring

External four-color light, real-time monitoring of laser head operation status

♦Excellent Design

Optimized optical configuration and smooth and efficient air flow design significantly improve cutting quality and efficiency

♦Multiple cover glass protection

Collimation adds a protective lens to effectively protect the collimating lens.

♦Drawer lense Assembly

Fast and simple replacement of protective lenses

♦High Adaptability

With QBH, QCS and other types of optical fiber interfaces, it can be adapted to various mainstream laser devices

♦Automatic light spot adjustment

Automatically change focus size.

♦Bus control

EtherCAT bus communication and bus control focusing unit

♦Lens monitoring

Long-lasting protective lens monitoring

Specifications

Auto focus
Magnification of collimated spot 1.2X-4.0X
Focus range

1.2/1.5/2.0/2.5/3.0/3.5/4.0
Accuracy ≤50μm
Fiber Interface QBH,QD,Q+
Clear 50.8mm
Cover glasses
Collimation side Φ37mm * 1.6 mm
Focusing side Φ37mm *7 mm
Nozzle Styles

Single, Double, Custom

Diameter of Nozzle tip

0.8mm,1.0mm,1.2mm,1.5mm,2.0mm,2.5mm,3.0mm,

3.5mm,4.0mm, 4.5mm,5.0mm
Assist gas pressure ≤30 bar
Weight ~7.8kg
