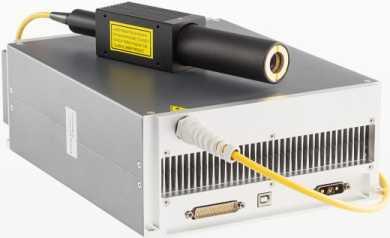

20W 30W Pulsed JPT Mopa Laser Source M1 For Semi Conductor
20W 30W Pulsed JPT Mopa Laser Source M1 For Semi Conductor
Specifications
Brand Name :
JPT
Model Number :
M1+ 20/30W
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Can be negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Product name :
Pulsed Fiber Laser
Laser Brand :
JPT
After Warranty Service :
Online support, Field maintenance and repair service
Local Service Location :
None
Description

Product introduction

JPT M1 + series pulsed fiber lasers make use of master oscillator power amplifier (MOPA) configuration, and show excellent laser performance as well as high level of temporal pulse shaping controllability. As compared to the Q- switching technology, the pulse repetition frequency (PRY) and pulse width can be controlled independently in MOPA configuration, through adjusting different combination of the above parameter, the peak power of laser can be well maintained, and enable JPT laser suitable for more material processing which Q-switch limited.

Product application

♦Metal surface processing, peeling coating

♦Semi-conductor & Electronics industry applications

♦Excellent marking effect on plastic or other sensitive material

♦Alumina black marking

♦Color marking on stainless steel

Product specification

Parameter Unit Parameter

Product Model

 YDFLP-20-M1+-S YDFLP-30-M1+-S
M2 <1.3
Delivery Cable Length 2 m

Nominal Average Output Power

 >20 W >30 W
Maximum Pulse Energy 0.5 mJ

Full Power Repetition Rate Range

 40-2000 kHz 60-2000 kHz

Pulse Repetition Rate Range

 1-2000 kHz

Pulse Duration

 6-250 ns

Longtime Average Power Stability

 <5%

Cooling Method

 Air Cooled

Supply DC Voltage (VDC)

 24 V
Current Consumption <8 A <10A

Full Power Consumption

 120W 140W

Central Emission Wavelength

 1064 nm

3dB Emission Bandwidth@3dB

 <15 nm
Polarization Random
Anti-Reflection Protection YES
Output Beam Diameter 7±0.5 mm
Output Power Tuning Range 0-100%
Operation Temperature 0~40 °C
Storage Temperature -10-60 °C

N.G.

 8 KG
Size (LxWxH) 315x220x99 mm
