Plastic 100w Co2 Laser Marking Machine 30W 50W 100W 150W 200W 250W
Plastic 100w Co2 Laser Marking Machine 30W 50W 100W 150W 200W 250W
Plastic 100w Co2 Laser Marking Machine 30W 50W 100W 150W 200W 250W
Plastic 100w Co2 Laser Marking Machine 30W 50W 100W 150W 200W 250W
Specifications
Brand Name :
DP LASER
Model Number :
Laser Marking Machine
Certification :
CE SGS FDA TUV ROHS
Place of Origin :
China
MOQ :
1 Set
Price :
Please contact us
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300 set/month
Delivery Time :
7-15 Work Days
Packaging Details :
Wooden boxes that meet international export standards
Laser Source :
Synrad Access Coherent Rofin CRD Laser Source
Laser Type :
CO2 Laser
Function :
Nonmetal Materials Engraving Marking Cutting
Galvo :
Sino-Galvo
Laser Power :
15W 30W 50W 100W 150W 200W 250W Optional
Application :
Nonmetal Materials
Marking Speed :
0-8000mm/s
Marking Area :
70mm-400mm Optional
Power Supply :
110V/220V 50HZ
After-sales Service Provided :
Overseas engineers provide door-to-door service
Description

20W 30W 50W 100W Raycus Max IPG JPT Mopa Metal Engraving Optical Fiber Laser Marking Machine

Basic introduction

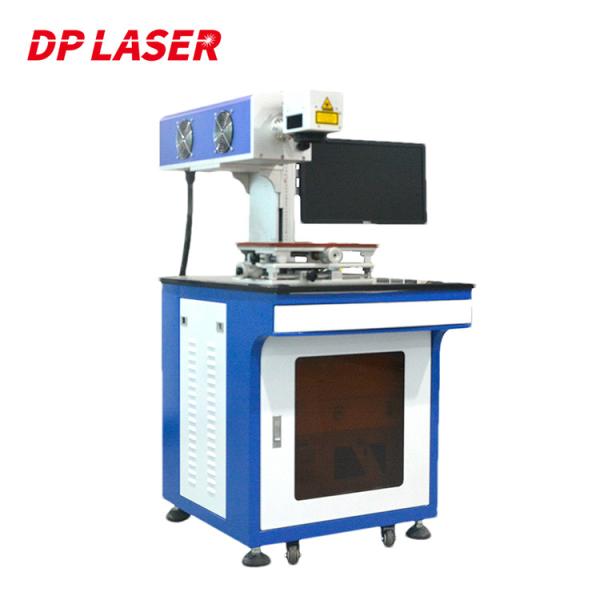

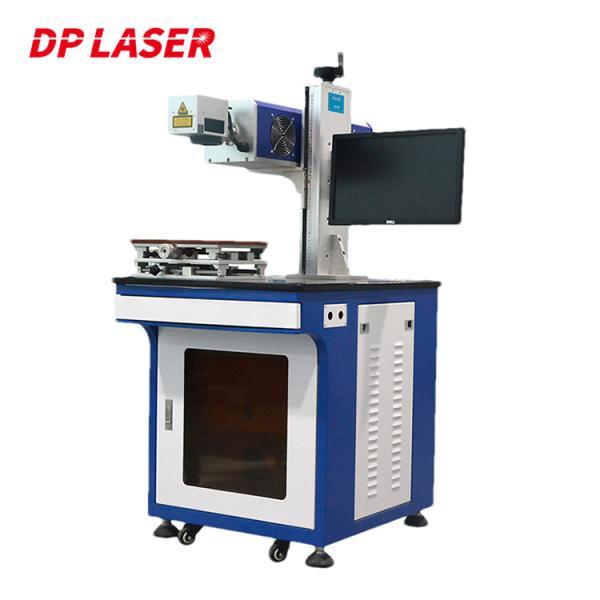

Carbon dioxide laser marking machine is the latest new generation of laser marking system. The system adopts industrial standard module design, adopts imported full set of metal-encapsulated carbon dioxide RF laser, is equipped with high-speed scanning galvanometer and beam expander focusing system, anti-interference industrial computer intelligent control, high-precision lifting working platform, realizes 24-hour continuous stability Reliable operation, high marking accuracy and high speed.


Features
1. Floor-standing design
2. Fast speed and high precision
3.24 hours continuous operation


Plastic 100w Co2 Laser Marking Machine 30W 50W 100W 150W 200W 250WPlastic 100w Co2 Laser Marking Machine 30W 50W 100W 150W 200W 250W

Laser Power 15W 30W 50W 100W 150W 200W 250W Optional
Laser Source Synrad Access Coherent Rofin CRD Optional
Control Board BJJCZ
Control Software EZCAD
Galvo Head Sino-Galvo
F-theta Lens 70mm-400mm Optional
Laser Lifespan 20,000 Hours
Laser Wavelength 10640nm
Marking Speed 0-8000mm/s
Power Consumption ≤800W
Cooling Mode Water Cooling / Air Cooling
Supported characters Any fonts downloaded on computer
Supported format DWG,DFX,BMP,JPG,PNG,TIF,PCX, TAG, GIF, PLT etc..
Supported Bar code CODE39, EAN, CODE128, Data Matrix, PDF417 etc..
Cabinet Size 950*650*1500mm
Machine Weight About 130KG
Voltage 110V/220V Optional

Application industry

Co2 laser marking machine can mark a variety of non-metallic materials and some metal products, such as bamboo products, wood, paper, ABS, PVC, epoxy resin, acrylic, leather, glass, architectural ceramics, rubber, etc. It is widely used in leather, food, beverage, fabric, electronics, wood, instrument, communication equipment, packaging and other industries, and can be combined with the assembly line for online marking.

Plastic 100w Co2 Laser Marking Machine 30W 50W 100W 150W 200W 250WPlastic 100w Co2 Laser Marking Machine 30W 50W 100W 150W 200W 250W
