Specifications
Brand Name :
DP LASER
Model Number :
Laser Marking Machine
Certification :
CE SGS FDA TUV ROHS
Place of Origin :
China
MOQ :
1 Set
Price :
Please contact us
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300 set/month
Delivery Time :
7-15 Work Days
Packaging Details :
Wooden boxes that meet international export standards
Laser Source :
RFH JPT Advanced Optowave Optional
Laser Type :
UV
Laser Power :
3W 5W 10W Optional
Power supply :
110V/220V Optional
Laser wavelength :
355nm
Condition :
New
Core Components :
Laser Source
Application :
Laser Marking
Weight (KG) :
130 KG
After-sales Service Provided :
Overseas engineers provide door-to-door service
Description

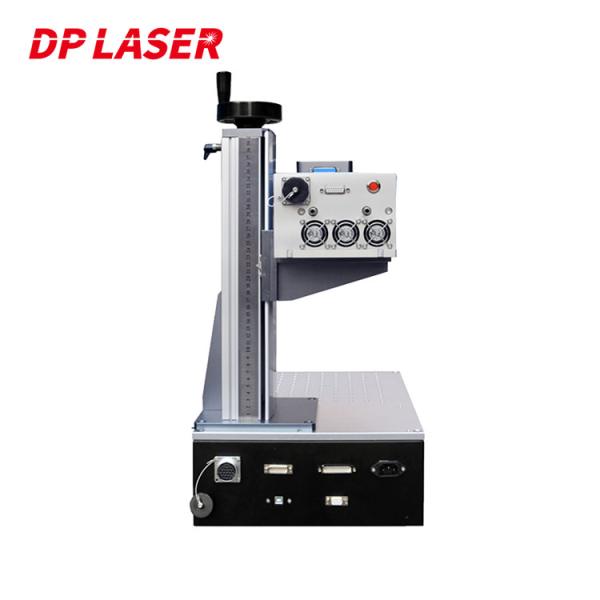

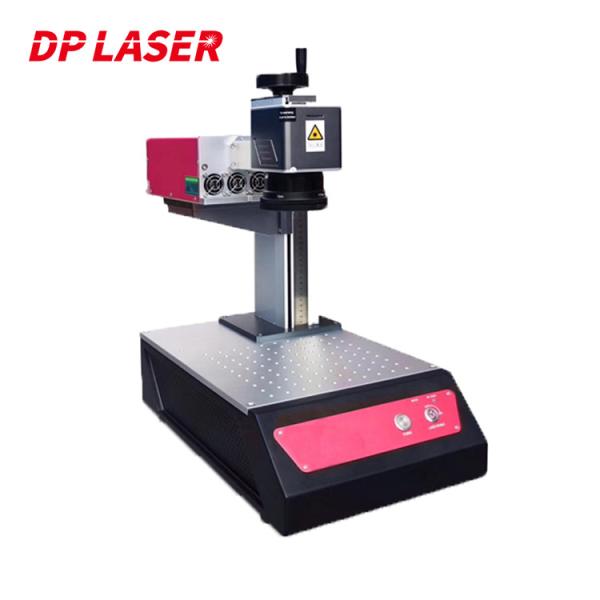

3W 5W 10W Metal Marker Printer Mini Portable UV Laser Marking Machine

Basic introduction

UV laser marking machine is equipped with deep ultraviolet laser, imported high-speed scanning galvanometer system, etc.; because the focusing spot of ultraviolet laser marking machine is extremely small, and the processing heat affected zone is very small, so ultraviolet laser marking machine can perform ultra-fine marking, special Material marking, UV laser marking machine is the first choice for customers who have higher requirements on marking effect.

Features

UV laser marking machine has the characteristics of high electro-optical conversion rate, long service life of nonlinear crystal, stable operation of the whole machine, high positioning accuracy, high operation efficiency, and modular design for easy installation and maintenance. In addition, a two-dimensional automatic workbench can be selected to realize multi-station continuous marking or large-format marking.

Applicable Industries

Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

3W 5W 10W Mini Portable UV Laser Marking Machine / Metal Marker Printer

3W 5W 10W Mini Portable UV Laser Marking Machine / Metal Marker Printer

3W 5W 10W Mini Portable UV Laser Marking Machine / Metal Marker Printer

Laser Power 3W 5W 10W Optional
Laser Source RFH JPT Advanced Qptowave Optional
Control Board BJJCZ
Control Software EZCAD
Galvo Head Sino-Galvo
F-theta Lens 110*110mm
Laser Lifespan 20,000 Hours
Laser Wavelength 355nm
Marking Speed 0-8000mm/s
Power Consumption ≤800W
Cooling Mode Air Cooling
Supported characters Any fonts downloaded on computer
Supported format DWG,DFX,BMP,JPG,PNG,TIF,PCX, TAG, GIF, PLT etc..
Supported Bar code CODE39, EAN, CODE128, Data Matrix, PDF417 etc..
Cabinet Size 320*549*668mm
Machine Weight About 35KG
Voltage 110V/220V Optional
