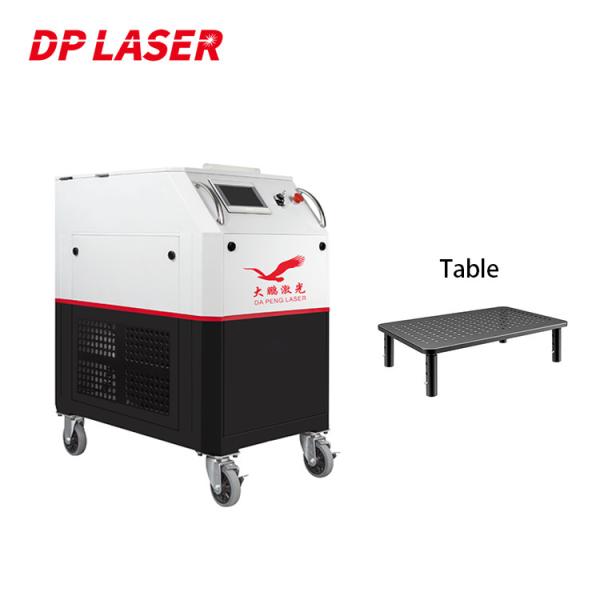

Handheld Pulse Fiber Laser Cleaning Machine 200w 220V Metal Products Cleaner
Handheld Pulse Fiber Laser Cleaning Machine 200w 220V Metal Products Cleaner
Handheld Pulse Fiber Laser Cleaning Machine 200w 220V Metal Products Cleaner
Handheld Pulse Fiber Laser Cleaning Machine 200w 220V Metal Products Cleaner
Handheld Pulse Fiber Laser Cleaning Machine 200w 220V Metal Products Cleaner
Handheld Pulse Fiber Laser Cleaning Machine 200w 220V Metal Products Cleaner
Specifications
Brand Name :
DP LASER
Model Number :
Laser Cleaning Machine
Certification :
CE SGS FDA TUV ROHS
Place of Origin :
China
MOQ :
1 Set
Price :
Please contact us
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300 set/month
Delivery Time :
7-15 Work Days
Packaging Details :
Wooden boxes that meet international export standards
Laser Source :
Raycus Max IPG JPT Optional
Laser Power :
200W Optional
Power Supply :
220V
Laser Type :
Fiber Laser
Laser source type :
Pulse Fiber Laser
Application :
Metal Stainless Steel Cleaning
Feature :
NON-TOUCH CLEANING
Dimension(L*W*H) :
642*1056*1089mm
Keywords :
Metal Cleaning Machine
After-sales Service Provided :
Overseas engineers provide door-to-door service
Description

Handheld 200W Pulse Fiber Laser Cleaning Machine Metal Products Cleaner


Features
1. Non-contact processing, no consumables, no damage, no chemical pollution
2. Handheld laser cleaning head, light, convenient and easy to use
3. Right angles, corners and grooves can be cleaned
4. Derusting, decontamination, degreasing, deoxidation

5. High cleaning efficiency, high precision and high cleanliness

Applicable Material

Stainless Steel, Carbon steel, Aluminum, Wood, Metal

Application industry

It is mainly used for laser cleaning and surface laser pretreatment of metal surfaces such as precision molds, metal products, ships, automobiles, medical equipment, sheet metal/spraying, etc.
Handheld Pulse Fiber Laser Cleaning Machine 200w 220V Metal Products CleanerHandheld Pulse Fiber Laser Cleaning Machine 200w 220V Metal Products CleanerHandheld Pulse Fiber Laser Cleaning Machine 200w 220V Metal Products CleanerHandheld Pulse Fiber Laser Cleaning Machine 200w 220V Metal Products Cleaner

Laser Power 200W 300W
Laser Source Raycus/IPG Raycus/IPG
Central Wavelength 1064±5 1064±5
Power Regulation Range 10-100 10-100
Outpit Power Instability ≤5 ≤5
Output Power Instability 10-50 20-50
Pulse Length 90-130 130-140
Maximum Monopulse Energy 10 12.5
Fiber Length 5/10m 5/10m
Laser Protection Class 4 4
Cooling Type Water Cooling Water Cooling
Dimensions 642*1056*1089mm 642*1056*1089mm

Handheld Pulse Fiber Laser Cleaning Machine 200w 220V Metal Products CleanerHandheld Pulse Fiber Laser Cleaning Machine 200w 220V Metal Products CleanerHandheld Pulse Fiber Laser Cleaning Machine 200w 220V Metal Products Cleaner

Cleaning Performance Parameters
Based material Surface Effective focal length Standard cleaning efficiency High cleaning efficiency Result
Cast iron Heavy rust 0.08mm >35mm 2000mm/m 3000mm/m Clean, no harm for base material
Mild steel Middle rust 0.5mm >45mm 1800mm/m 2400mm/m Clean, no harm for base material
Stainless steel Oil, light rust >50mm 2000mm/m 3000mm/m Clean, no harm for base material
Mould gear Middle oil with scrap iron >45mm 2000mm/m 2300mm/m Clean, no harm for base material
Aluminum oxide >35mm 2000mm/m 2300mm/m Clean, no harm for base material

DP Laser cleaning machine has advanced technology, with humanized design, small size, flexible operation, low energy consumption, environmental protection and other characteristics, with certain practicability and operability. Customers can preset the cleaning mode through the software, and can directly switch the mode to operate without adjusting the parameters, and start cleaning without chemical reagents, media, dust and water. Through automatic focusing, cleaning the surface of the object, and removing resin, stains, corrosion, coatings, paints, etc. on the surface of the object, the cleanliness is high.

Handheld Pulse Fiber Laser Cleaning Machine 200w 220V Metal Products CleanerHandheld Pulse Fiber Laser Cleaning Machine 200w 220V Metal Products CleanerHandheld Pulse Fiber Laser Cleaning Machine 200w 220V Metal Products CleanerHandheld Pulse Fiber Laser Cleaning Machine 200w 220V Metal Products Cleaner
