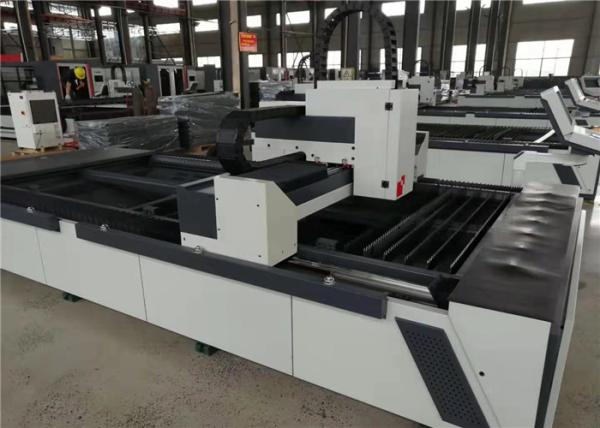

Carbon Steel Metal Laser Cutting Machine , CNC Fiber Laser Cutter 2000 Watt
Carbon Steel Metal Laser Cutting Machine , CNC Fiber Laser Cutter 2000 Watt
Carbon Steel Metal Laser Cutting Machine , CNC Fiber Laser Cutter 2000 Watt
Carbon Steel Metal Laser Cutting Machine , CNC Fiber Laser Cutter 2000 Watt
Carbon Steel Metal Laser Cutting Machine , CNC Fiber Laser Cutter 2000 Watt
Carbon Steel Metal Laser Cutting Machine , CNC Fiber Laser Cutter 2000 Watt
Specifications
Brand Name :
LEDAN
Model Number :
DFCD-2000
Certification :
CE ISO
Place of Origin :
China (Mainland)
MOQ :
1
Price :
USD/SET
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 Sets/month
Delivery Time :
20-30days
Packaging Details :
container standard packaging
Laser Power :
IPG Fiber Laser 700/1000/1500/2000w
Laser Source :
America / Russia IPG Fiber Laser Resonator
Servo Motor And Driver :
YASKAWA JAPAN
Laser Head :
Switzerland Raytools
Power Supply :
AC380V±5% 50/60Hz (3 Phase)
Linear Guide :
Taiwan HIWIN
Max Moving Speed :
120m/min
Description

Carbon Steel Metal Laser Cutting Machine , CNC Fiber Laser Cutter 2000 Watt

Fiber Plus Model Features:

- Equiped with IPG laser source from 1kw to 12kw

- Imported movement parts:Rack & Pinion,Servo Motor,Linear Guide etc

- Double driving synchonous technology make sure high speed and precision cutting

- Automatic Focus Cutting Head with auto focus, smart piercing, piercing detection functions

- CNC control system and operation software, Lantek Nesting software

- Machine Frame designs with suction system and cooper plate protection

- Double servo motor driver, bring higher speed and acceleration,

- Rapid Speed:120m/min,Acceleration:1.7G

- Fast pallet exchanger and full enclosure

- Cutting database help users choose optimal cutting parameter

- Dimension:3m*1.5m, 4m*2m, 6m*2m, 6m*2.5m, 8m*2m available

Application

Mainly for cutting metallic material such as mild steel, stainless steel, aluminum
alloy, titanium alloy, high temperature alloy ect

Performance And Technical Parameter:
Cutting Area 3000mm*1500mm,3000mm*2000mm,4000mm*1500mm4000mm*2000mm,6000mm*2000mm
Max Moving Speed 120m/min
Laser Power 500W/700W/1000W/1500W/2000W/2400W/3000W4000W/5000W
Transmison Precision Double Drive Rack
Driver Servo Motor
Supported Graphic Formats PLT,DXF,IGS,AI
Working Voltage 380V/50Hz
Power of the Machine <20KW
Work Environment 5-45℃ Humidity≤80%, No Condesnation
Feeding Automatic Exchangeble Table

Plate Positioning

Automatic Edge Searching

Carbon Steel Metal Laser Cutting Machine , CNC Fiber Laser Cutter 2000 Watt
