6 Joints 3D Laser Cutting Machine Adopts Automatic Robot Motion Technology
6 Joints 3D Laser Cutting Machine Adopts Automatic Robot Motion Technology
Specifications
Brand Name :
LEDAN
Model Number :
DFCR
Certification :
CE ISO
Place of Origin :
China (Mainland)
MOQ :
1
Price :
USD/SET
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 Sets/month
Delivery Time :
20-30days
Packaging Details :
container standard packaging
Cutting Head :
Precitec / Lasermech Imported α、β Axis Optional
Robot :
STAUBLI / KUKA/ABB Imported
Power :
0.5KW-3KW Optional
Cutting Range :
Customized
Laser Source :
Fiber Laser
Cooling :
Water
Description

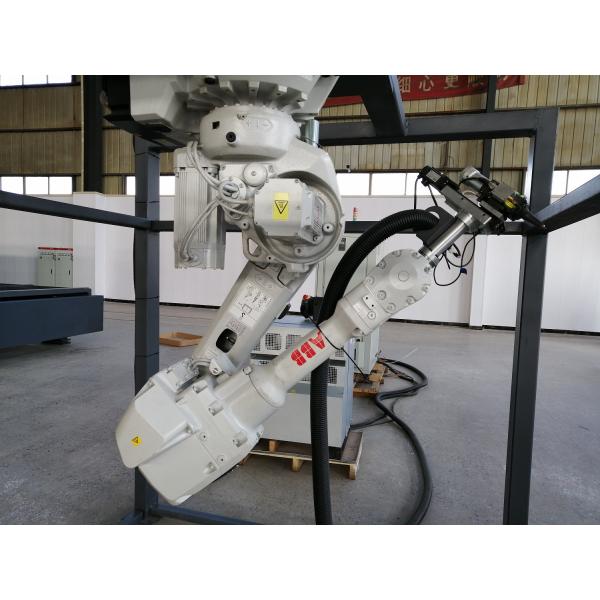

6 Joints 3D Laser Cutting Machine Adopts Automatic Robot Motion Technology

It adopts automatic robot motion technology and professional high-precision laser head. The laser output power is stable and the processing width is large. It can be used for sheet metal and stainless steel.
Different thickness metal materials are precisely cut and processed.

3D fiber laser cutting machine is widely used in aerospace, automotive steamship, machinery manufacturing, elevator manufacturing, advertising production, household appliance manufacturing, medical equipment, hardware, decoration, metal external processing services and other manufacturing industries.

Performance And Technical Parameter:
Cutting Radius 1400mm/1700mm/2000mm
Max Moving Speed 12m/min
Max Speed At the Load Center of Gravity 10m/s-12m/s
Re-position Accuracy of the Robotic Arm ±0.05mm/m
Position Accuracy of the Robotic Arm ±0.03mm/m
Laser Power 500W/700W/1000W/1500W/2000W/2400W/3000W
Aiming and Positioning CCD or Red Light
Working Voltage 380V/50Hz
Work Environment 5-45℃ Humidity≤80%, No Condesnation
Number of Joint 6
Protection Level of the Robtoic Arm IP65
Installation Top/Ground/Wall Hanging/Rail
Main Process Parts Automobile Coer and Special Shape Workpiece

Main Features:

1. Adpot automatic robot motion technolgy, equipped with high precision laser head stable output power, can process large working area;
2. It can cut different thickness of metallic materials like metal plate, stainless steel, aluminum, brass, copper and so on;
3. Simplify the operation by equipping with off-line programming software.

Application

Widely used in automobile industry, househlod appliance industry, sheet metal processing, aviation, aerospace, electronics,tubecutting, automobile, kitchen utensils, craft gifts, tool processing, decoration, advertising and other manufacturing industries.

Advantage

Advanced software system

Advanced hardware system

Professional CNC control System

High synchronous servo motors

Design and manufacture of high precision machine tools
