(PE-UV-03/05)

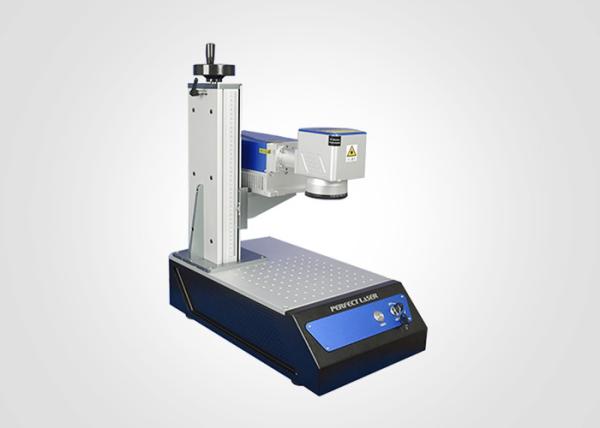

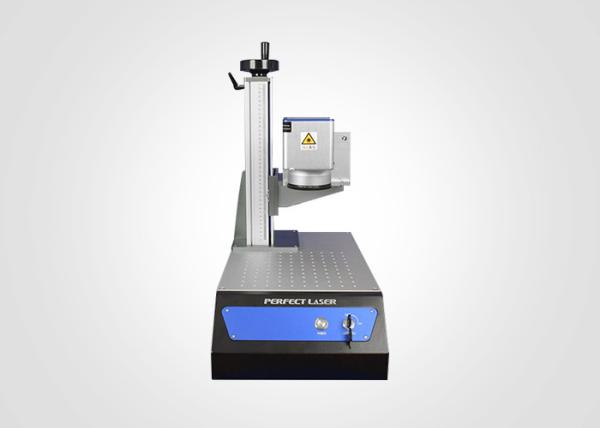

UV laser marker can be accurate to microns, metal or non-metallic materials can marked by UV laser. It’s widely used for marking on different types of products and equipment, such as used in food and medical package.
The whole machine has stable performance, small size and low power consumption.
1. Applicable for many different industries and fields.
2. Full power UV laser source.
3. Nano-engraved focus mirror.
4. Support vector graphics, two-dimensional codes, bar-codes, skip code, jumping code, etc.
5. Rapid speed marking effect.
6. Adjustable lifting handle for accurate focus distance.
7. This UV laser marking machine has big working table.
1. Applicable materials

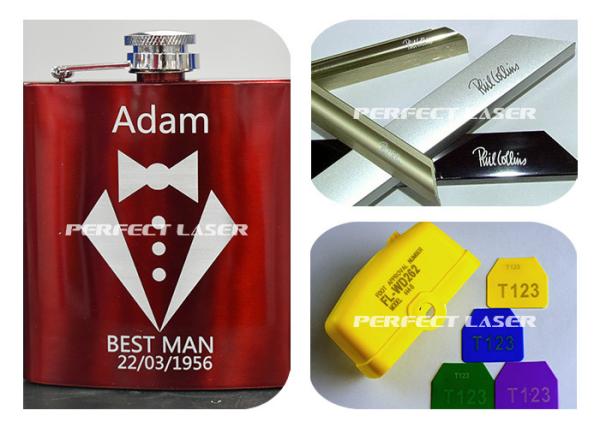

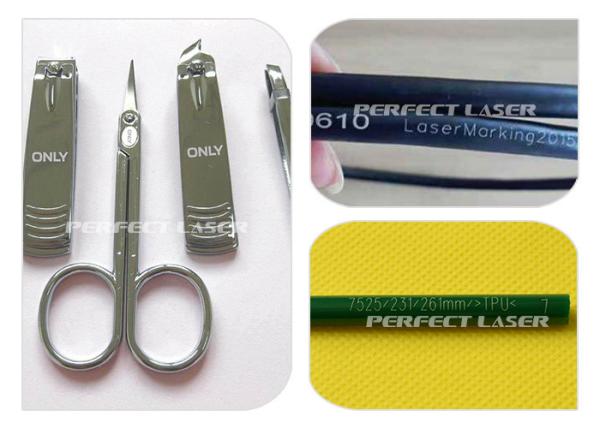

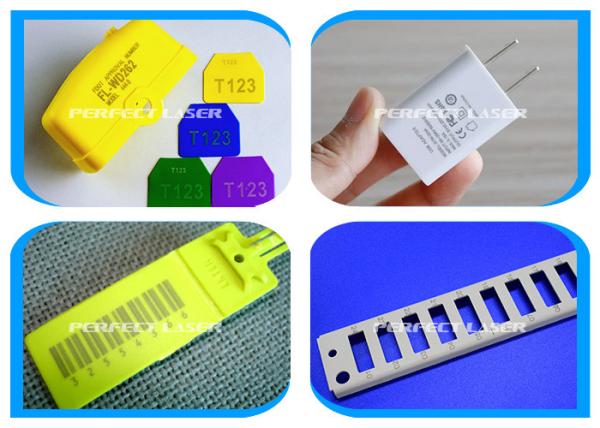

UV laser marking machine is widely used for marking on surface of metal and non-metal materials, such as stainless steel, carbon steel, brass, aluminum alloy, plastic, pvc, glass,ceramic and so on.
2. Applicable industry
UV laser marking machine is applicable for many different fields for different customized requirement, such as household DIY, store customization, business gift, maker teaching, product marking and so on.
Product Name | 3w 5w 10w Mini Small Size UV laser marking Engraving machine | |
Model No. | PE-UV-03 | PE-UV-05 |
Laser Power | 3 Watts | 5 Watts |
Marking Area | 150*150mm | |
Marking Speed | 7000mm/s | |
Line Speed | 600-1000 characters/min | |
Marking Precision | ≦0.001mm | |
Wave Length | 355nm | |
Input Voltage | 100-240 V | |
Cooling System | Air cooling system | |
Support System | Windows7/8/10 | |
Support Format | AI/PLT/PNG/DXF | |
Pulse Frequency | 20KHZ-60KHZ | |
Working Medium | Ultra violate | |
Working Temperature | 10--45℃ | |
Text Shaped | 0.6mm (Chinese character) 0.2mm (English letter) | |
Support Language | Multi-languages can be chosen (English is default, other is optional. Please inform us in advance which you want) | |
Product weight | 30.75 KG |
1. Well-trained and disciplined packing team.
2. Sophisticated and professional logistic agent.
3. Prompt deliver at the very day.
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
1. Good after-sales service, 24 hours online service.
2. Flexible and untraceable payment terms.
3. Free product consultation, program recommendation, proofing test,free after-sales service.
4. We provide high quality products with competitive price and fast delivery.
5. More than 20 years of experience in laser equipment research and development, production.
6. The products are exported to Germany, Norway, Poland, Finland,Spain, Britain, France, Russia, the United States, Brazil, Mexico, Australia, Japan, South Korea, Thailand, Indonesia, Uruguay and other countries.
