Desktop Laser Marking Engraving Machine Mini Portable For Metal Non Metal Materials
Desktop Laser Marking Engraving Machine Mini Portable For Metal Non Metal Materials
Desktop Laser Marking Engraving Machine Mini Portable For Metal Non Metal Materials
Desktop Laser Marking Engraving Machine Mini Portable For Metal Non Metal Materials
Desktop Laser Marking Engraving Machine Mini Portable For Metal Non Metal Materials
Desktop Laser Marking Engraving Machine Mini Portable For Metal Non Metal Materials
Desktop Laser Marking Engraving Machine Mini Portable For Metal Non Metal Materials
Desktop Laser Marking Engraving Machine Mini Portable For Metal Non Metal Materials
Specifications
Brand Name :
Pefect Laser
Model Number :
PEDB-150
Certification :
CE / ISO / SGS / TUV
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T, L/C, PayPal, Western Union
Supply Ability :
800 sets per month
Delivery Time :
7-10 Working Days
Packaging Details :
Sea-Worthy Packing or Air-Worthy Packing For Laser Marking Machine
Product Name :
PEDB-150 Mini Portable Desktop Laser Marking Machine & Engraving machine
Laser Power :
6W
Laser Wavelength :
1064nm
Marking Area :
175x175mm
Marking Accuracy :
≤0.001mm
Marking Speed :
600-1000 characters/min
Marking Depth :
0.001-0.5mm
Engraving Area :
170*170mm
Engraving Line Speed :
0-15000mm/s
Pulse Frequency :
20~60 kHZ
Description

6w Mini Portable Desktop Laser Marking & Engraving Machine

for both Metal and Non-metal Materials

(Model: PEDB-150)

Machine Introduction

PEDB-150 is a new mini portable desktop fiber laser marking machine, one machine for marking and engraving 2 fucntions. Small size and compact, support multi-scenario applications, can meet the customization needs of different industries, such as: home DIY, store customization, craft gifts, product identification, etc.

Main Features

1.The desktop laser marking & engraving machine is small and compact, light weight, only 6 kgs, easy to carry.

2.It can be used for both metal marking and non-metal engraving. One machine has two functions, which is economical.

3. It has a one-button automatic induction focus, no manual adjustment, and high precision.

4. It adopts integrated design, simple operation, easy to learn and use.

5. It adopts genuine board, no stuck and no flashback, low failure rate and high efficiency.

6. It has preview view mode / external outline mode, two modes for quick calibration preview and precise positioning, what you see is what you get.

7. It supports loss map, two-dimensional code, barcode, generation of skip code, LOGO logo, etc.

Application

1.Applicable industries:

It’s widely used for metal industry, mobile phones, jewelry, handicrafts, luggage, food and many other industries.

2. Applicable materials:

1) Metal: stainless steel, carbon steel, mild steel, copper, aluminum, alloy, etc.;

2) Non-metals: leather, plastic, bamboo products, fruits, etc.

Technical Data

Product Model PEDB-150 Mini Portable Desktop Laser Marking Machine & Engraving machine
Laser Power 6W
Laser Wavelength 1064
Marking Area 175x175mm
Marking Accuracy ≤0.001mm
Marking Speed 600-1000 characters/min
Marking Depth 0.001-0.5mm
Engraving Area 170*170mm
Engraving Line Speed 0-15000mm/s
Pulse Frequency 20~60 kHZ
Supported Formats AI / PLT / PNG / JPG / DXF etc.
Cooling System Air cooling
Supported Languages

9 kinds including Chinese/English

(please indicate which one you need, default is English)
Support System Windows7 / 8 / 10
Shaped Text

About 0.6mm (Chinese characters)

about 0.2mm (letters)
Input Voltage 100~240V
Working Temperature 10-45℃
Product Weight 6 kgs
Total Power <120W

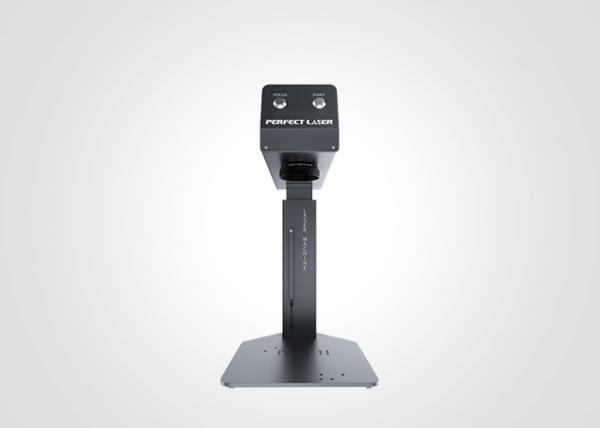

★ Machine parts
Desktop Laser Marking Engraving Machine Mini Portable For Metal Non Metal Materials
Desktop Laser Marking Engraving Machine Mini Portable For Metal Non Metal Materials
★ Packaging & Delivery

1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.

★Competitive Advantages

1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
