High Precision 9600dpi Double Head Vertical Tile Wood Rice Paper Outdoor Indoor Direct To Wall Poster Printing Machine
(Model: PE-H40)
★ Product Introduction:

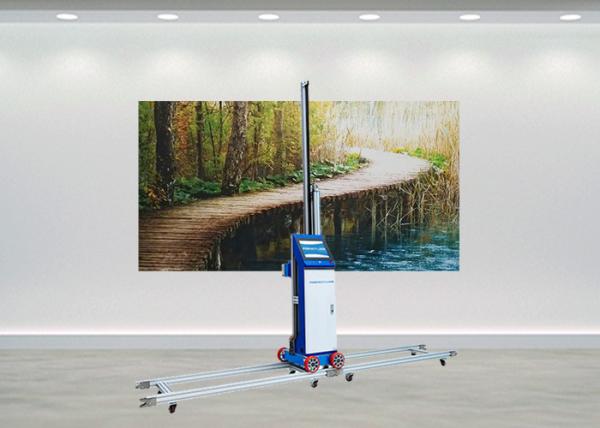

Perfect Laser PE-H40 double-head 3d wall poster printing machine
adopts the latest digital positioning technology and has the function of large image partitioning. A large image can be divided into multiple small images for printing, red cross positioning, and seamless splicing. The wall poster printing machine uses AI intelligent image processing, scans and analyzes pictures in different formats, matches colors, and precisely controls the ink output and printing.
★ Features:
1. The wall poster printing machine adopts Japanese Epson industrial-grade dual nozzles, double the speed, up to 64 square meters.
2. This machine uses special ink, which can work normally at -10°C-60°C (14°F-140°F) and relative humidity 10%-80%, without freezing, and inking continuously.
3. With negative pressure automatic pressure supply system, 400ml pigment storage, multi-color in one, easy to carry, and the horizontal wall printer has a clear and bright picture.
4. The wall poster printing machine’s body is small and exquisite, the program software is fully integrated, it is convenient to disassemble and transport, and it can work in any environment.
5. Built-in power supply.The wall poster printing machine can work normally for up to 12 hours in the event of a power failure or no power supply outdoors.
★ Application:
1. Applicable materials:
The wall poster printing machine is widely suitable for interior and exterior walls, putty powder wall, latex paint wall, white wall, imitation porcelain wall, diatom mud wall, canvas, tiles, glass, rice paper, wall clothing, color coated glaze, shell powder, color paint and so on.
2. Applicable industries:
The wall poster printing machine is widely used in home decoration, advertising industry, cultural and educational industry, government propaganda, hotel decoration, art experience museum, etc.
★ Technical Parameters:
Manufacturing State | PE-H40 In production | Flash Spray Test | Touch |
Data Transmission Method | USB2.0/3.0 | Ink Jet Test | Touch |
Sensor | Double | Z Axis Automatic | Have |
Length*width*height (host) | 40cm*50cm*230cm | Spirit Level | Have |
The Fastest Painting Speed | 64m²/h | Ultrasonic Sensor | 2pcs |
Ink Consumption Per Square | 6-10ML | Painted Mode | Two-Way |
Nozzle Model | Epson Print Head (Industrial Grade) | Atlas Type | External U Disk/Hard Disk |
X Axis Folding | Has (Optional) | Picture Processing | AI Intelligent Image Processing |
Nozzle Guard | Have | Automatic Tracking | Have |
Head Ink Tank | Can Be Split And Transported Separately | Automatic Memory | Have |
Motherboard Configuration | 8-Core CPU, 4GBDDR Memory | Memory Recovery | Have |
Highest Painting accuracy | 9600DPI | Quiet Zone Calibration | Have |
Painting Direction | Vertical | Step calibration | Have |
X Axis Guide | 2300mm | Nozzle Buffer | Have |
Y Axis Guide | 3000mm | Spray Distance | 0.5-2.0cm |
Z Axis Guide | 170mm | Ink Supply Method | Automatic Ink Supply Under Negative Pressure |
Display Screen | Comes With 12-inch Control Screen | Color Processing | Automatic Color Matching |
X Axis Effective Stroke | 1800mm | Painted Medium | All White Walls |
Y Axis Effective Stroke | Unlimited | Integrated Voltage Regulator | Have |
Z Axis Effective Stroke | 150mm | Laser Positioning | Have |
Total Body Weight | 40.5KG | Magnetic Limit | Have |
Total Track Weight | 18.8KG | Automatic White Jump | Have |
Ink Tank Capacity | 400ML | Battery Life | Have |
Nozzle Cleaning | One Key Automatic | Power-off Battery Life | About 12 Hours |
Certification | Green Environmental Protection Certification,National Standard Testing (GB18582-2001, GBT9756-2001), CE Certification | ||
Power Supply | AC110V(90-132V)/AC220V(180—264V)AC,47-63HZ | ||
Power Consumption | No Load 20W, Generally 75W, Up To 250W | ||
Noise | Standby <20dBA, drawing <50dBA | ||
Construction Temperature | -10°C - 60°C (14°F - 140°F) 10%-80% Relative Humidity, Non-condensing | ||
Storage Temperature | -30℃ - 60℃(-22°F - 140°F)10%-80%Relative Humidity, Non-condensing State | ||
Language | Chinese and English (Customizable) | ||
System Platform | WindowsXP/Win7/Win8/Win10 |
★ Machine parts:
★ Packaging & Delivery:
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
★ Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
