1000W 1500W 2000W Raycus IPG MAX 100m/ Min Fiber Laser Cutter Cutting Machine
1000W 1500W 2000W Raycus IPG MAX 100m/ Min Fiber Laser Cutter Cutting Machine
1000W 1500W 2000W Raycus IPG MAX 100m/ Min Fiber Laser Cutter Cutting Machine
1000W 1500W 2000W Raycus IPG MAX 100m/ Min Fiber Laser Cutter Cutting Machine
1000W 1500W 2000W Raycus IPG MAX 100m/ Min Fiber Laser Cutter Cutting Machine
1000W 1500W 2000W Raycus IPG MAX 100m/ Min Fiber Laser Cutter Cutting Machine
1000W 1500W 2000W Raycus IPG MAX 100m/ Min Fiber Laser Cutter Cutting Machine
1000W 1500W 2000W Raycus IPG MAX 100m/ Min Fiber Laser Cutter Cutting Machine
1000W 1500W 2000W Raycus IPG MAX 100m/ Min Fiber Laser Cutter Cutting Machine
1000W 1500W 2000W Raycus IPG MAX 100m/ Min Fiber Laser Cutter Cutting Machine
1000W 1500W 2000W Raycus IPG MAX 100m/ Min Fiber Laser Cutter Cutting Machine
1000W 1500W 2000W Raycus IPG MAX 100m/ Min Fiber Laser Cutter Cutting Machine
Specifications
Brand Name :
Perfect Laser
Model Number :
PE-F3015
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T, L/C, PayPal, Western Union
Supply Ability :
400 sets per month
Delivery Time :
20-35 working days laser engraving machine for sale
Packaging Details :
Sea-Worthy Packing or Air-Worthy Packing
Product name :
Raycus Max IPG CNC Metal Sheet Stainless Carbon Steel Fiber Laser Cutter Machine
Re-Location Precision :
±0.02mm
Supporting Format :
PLT, DXF, BMP, AI
Power Demand :
380V/50Hz
Cooling Way :
Water Cooling
Worktable Max. Load :
1000 kgs
Focus Method :
Following and Automatic Adjust Focus
Location Precision :
Offline Movement Control
Laser Source :
German IPG/ Sino-Tech / Raycus Fiber Laser Source
Max. Moving :
100m/ min
Description

1000W 1500W 2000W Raycus IPG MAX 100m/ Min Fiber Laser Cutter Cutting Machine

1000W 1500W 2000W Raycus IPG MAX 100m/ Min Fiber Laser Cutter Cutting Machine


★ Product Introduction:

The 500w high-precision fast fiber laser cutter is an excellent product produced by Perfect Laser. The fiber laser cutter uses the original Raycus or German IPG fiber laser, which can cut a variety of thin metal sheets such as 3-5mm stainless steel and 4-6mm carbon steel.This fiber laser cutter uses Japan's Yaskawa servo motor and is equipped with a double-rolling ball screw drive system, which makes it a higher cutting accuracy. It is a high-quality non-direct contact optical fiber laser cutter.

★ Features:

1. High-end imported technology: The Japanese servo motor used in this fiber cutting machine has the characteristics of stable operation, fast response, high sensitivity and good controllability.

2. High precision, fast speed, positioning accuracy ≤0.05mm, maximum moving speed 90m/min, capable of cutting on different types of metals, cutting more quickly and finely.

3. Long life and low maintenance cost: The life of the original Raycus and German IPG fiber laser can be as long as 150,000 hours; through optical fiber transmission, no additional maintenance is required, and the machine has a longer service life.

4. Pre-positioning function: This machine adopts the "red pointer", which can realize the tracking and pre-positioning of the laser path, and can automatically adjust the focus to make the cutting more accurate, ensure the cutting level, and avoid the waste of materials.

5. Low cost: The electrical/optical conversion efficiency of the fiber laser cutting machine is high, the conversion efficiency is 25%~30%, the energy consumption is low, and the working cost is greatly reduced. Professional CNC operating software: using the latest version of CNC, simple and user-friendly design, compatible with DXF, PLT, G code and other formats.


★ Application:

1.Applied Materials:

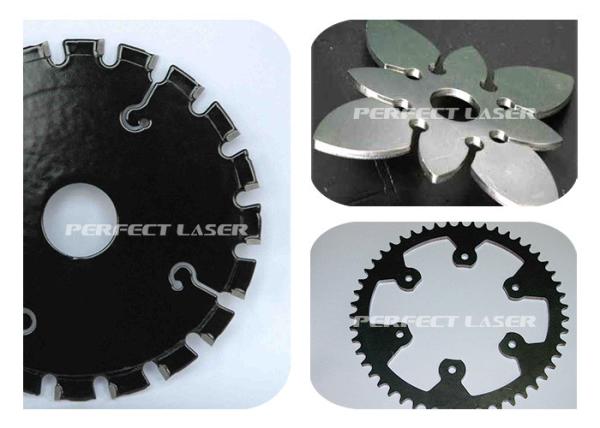

The 500w optical fiber cutter is mainly used for non-contact cutting of thin metal sheets, 3-5mm stainless steel, 4-6mm carbon steel, titanium alloy, galvanized steel, galvanized steel, silicon steel, pickling board and other fragile alloy materials.

2.Applied Industry:

Kitchen electrical, machine frame equipment, electrical equipment, sheet metal processing, precision metal parts (aerospace), electronic appliances, subway accessories, automobile machinery, metallurgical equipment, craft gifts, advertising signs, lighting hardware and other industries.


★ Technical Parameters:

Model PE-F500-2513 PE-F500-3015
Laser Power 500 watt
Laser Source German IPG/ Sino-Tech / Raycus Fiber Laser Source
Laser Type Fiber Laser
Laser Technology Germany Technology
XYZ Working Area 2500*1300*150mm 3000*1500*150mm
Max. Cutting Thickness (mm) 1-5mm carbon steel
Max. Cutting Speed 5-20 Meters / Min (up to Materials)
Max. Location Speed 60m/min
Laser Wavelength 1070nm
Minimum Line Width ≤0.1mm
Location Precision ≤±0.05mm
Re-Location Precision ±0.02mm
Max. Moving Speed 100m/min
Supporting Format PLT, DXF, BMP, AI
Power Demand 380V/50Hz
Cooling Way Water Cooling
Worktable Max. Load 1000 kgs
Transmission Method Ball Screw Transmission
Table-Driven System Japanese Imported Panasonic / Yaskawa Servo Motor &Driving System
Focus Method Following and Automatic Adjust Focus
Control Method Offline Movement Control
Control Software Perfect Laser Professional Fiber Laser Cutting Software

★ Machine parts:

1000W 1500W 2000W Raycus IPG MAX 100m/ Min Fiber Laser Cutter Cutting Machine1000W 1500W 2000W Raycus IPG MAX 100m/ Min Fiber Laser Cutter Cutting Machine​

★ Packaging & Delivery:

1. Prompt deliver at the very day.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.

★Competitive Advantages:

1. 100% custom pass guaranteed.

2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.

3. Flexible and Untraceable payment terms.

4. Good after-sale service.

5. We offer high quality products at competitive price in quick delivery.
