Specifications
Brand Name :
Perfect Laser
Model Number :
PEDK- 13090M
Certification :
CE / ISO / SGS / TUV
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, PayPal, Western Union
Supply Ability :
500 Set per Month
Delivery Time :
10-15 Working Days
Packaging Details :
Sea-Worthy Packing or Air-Worthy Packing
Product Name :
CO2 Laser Cutter Machine
Working Area :
1300x900mm
Cooling Type :
CW-5000
Positioning Accuracy :
±0.02mm/m
Packing :
Standard Plywood Case Comply with Export Standard
Control Software :
Perfect Laser Professional Mixed Laser Cutting Machine Software
Guarantee :
12 month guarantee for whole machine 10 month guarantee for laser tube
Working Voltage :
AC110-220V ±10%/10A,50-60HZ
Compatible Software :
CorelDraw, Photoshop, AutoCAD, All type of AutoCAD software
Description

130w 150w Double Head Non-Metal Acrylic Plastic Board Wood Metal Stainless Steel Carbon Steel Co2 Mixed Cutting Machine

(Model:PEDK-13090M)

★ Product Introduction:

PEDK-13090M is a double-head hybrid co2 laser cutter machine, which can cut both metals and non-metals. It is economical and economical. The co2 laser cutter machine is equipped with imported motors, imported rails, and imported laser lenses. The life of the core components is greatly increased. The laser power is aspiring, the output beam quality is high, the processing efficiency and precision are improved, and the good cutting effect is ensured.

130w CO2 Laser Cutting Machine 20m/ Min Double Head Acrylic Plastic Board

130w CO2 Laser Cutting Machine 20m/ Min Double Head Acrylic Plastic Board


★ Features:


1. The core components are all imported, the laser output quality is good, the spot is small, and the service life is long.
2. The closed workbench of co2 laser cutter machine effectively
reduces noise and dust, and is green and environmentally friendly.
3. Lifting worktable (optional accessory), which can adjust the distance between the cutting head and the object, making the application range wider.
4. Red light position system, auxiliary positioning, high processing accuracy, and clear traces.
5. The co2 laser cutter machine can support multiple formats of files, such as AI, PLT, BMP, JPG, DXF, DST, etc. It can be connected to an external USB, and the operation is simple.

130w CO2 Laser Cutting Machine 20m/ Min Double Head Acrylic Plastic Board

130w CO2 Laser Cutting Machine 20m/ Min Double Head Acrylic Plastic Board

130w CO2 Laser Cutting Machine 20m/ Min Double Head Acrylic Plastic Board

130w CO2 Laser Cutting Machine 20m/ Min Double Head Acrylic Plastic Board


★ Application:

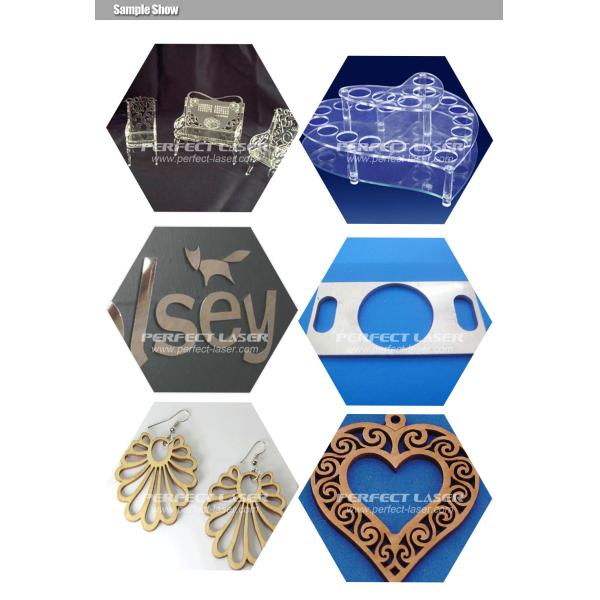

1. Suitable materials: acrylic, plastic board, wood board, stainless steel, carbon steel, steel plate, iron plate, and many other metal and non-metal materials;
2. Suitable industries: Acrylic products, signage, advertising sign production, metal crafts, gift models, furniture toys, flooring, advertising displays, hardware knives, mechanical parts, instrument and electrical parts, saw blades, spring blades and other industries.

130w CO2 Laser Cutting Machine 20m/ Min Double Head Acrylic Plastic Board

★ Technical Parameters:

Product Name CO2 Laser Cutter Machine
Model PEDK-13090M
Working Area 1300x900mm
Laser Power 150w
Laser Type CO2 Sealed Laser Tube, 10.6um
Transmission Method Belt Transmission
Driving System High-precision 3-phase “LEADSHINE” Step Motor and Driving System
Working Table Thicken Strip Working Table
Cooling Type

Water Cooling

150w-180w Machine use CW-5000

260w-300w Machine use CW-6000

Laser Output Control (0-100% Set by Software )
Smallest Character Engraving Chinese: 2.0mmx2.0mm, English Letter: 1.0mmx1.0mm
Highest Scanning Precision 4000DPI
Positioning Accuracy ±0.02mm/m
Positioning Speed 20m/min
Max. Cutting Thickness 40mm
Max. Cutting Speed 20m/min
Controlling Software Off-computer Controlling System
Graphic Format Supported BMP, PLT, DST, DXF, and AI, etc
Compatible Software CorelDraw, Photoshop, AutoCAD, All type of AutoCAD software
Auxiliary Equipment Exhaust Fan and Air Exhaust Pipe
Working Voltage AC110-220V ±10%/10A,50-60HZ
Power <2000w
Packing Standard Plywood Case Comply with Export Standard
Control Software Perfect Laser Professional Mixed Laser Cutting Machine Software
Guarantee

12 month guarantee for whole machine

10 month guarantee for laser tube

Training

VCD Training Video for Easy Learning

Engineer Overseas Installation & Training is Available


★ Machine parts:



130w CO2 Laser Cutting Machine 20m/ Min Double Head Acrylic Plastic Board

★ Packaging & Delivery:

1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.

130w CO2 Laser Cutting Machine 20m/ Min Double Head Acrylic Plastic Board


★Competitive Advantages:

1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
