IPG Fiber Laser Cutting Machine , Sheet Metal Laser Cutting Machine High Speed
IPG Fiber Laser Cutting Machine , Sheet Metal Laser Cutting Machine High Speed
IPG Fiber Laser Cutting Machine , Sheet Metal Laser Cutting Machine High Speed
IPG Fiber Laser Cutting Machine , Sheet Metal Laser Cutting Machine High Speed
Specifications
Brand Name :
Huahai Laser
Model Number :
HB-FW
MOQ :
1set
Payment Terms :
T/T, L/C, Western Union
Delivery Time :
25-30 days
Packaging Details :
Standard fumigation - free tri-board export wooden cases
Price :
Negotiable
Supply Ability :
50sets/month
Laser source :
Germany IPG
Using for :
Metal pipe cutting
Cutting Speed :
30m/min
Power :
1000W 2000W 3000W
Color :
Red and White
Laser :
Optic fiber
Description

1KW 2KW 3KW Metal Sheet Tube Laser Cutting Machine Stainless Steel Pipe Fiber Laser Cutting Machine

Main Features of Pipe Cutting Machine

♦ Highly integrated with good system performance and high life.
♦ High automation, strong anti-interference ability and fast dynamic response.
♦ Centralized operation, automatic loading and unloading, making the processing flexible and fast.
♦ Imported special pipe cutting software, making cutting more professional and efficient.

Characteristics

1. Stability and reliability of light path system and control system.
2. Imported original fiber lasers,high and stable function,lifespan is over 100000 hours.
3. Higher cutting quality and efficiency,cutting speed is up to 80m/min with appearance

and beautiful cutting edge.
4. German high performance reducer,gear and rack;Japanese guide and ball screw.

Basic Configurations

Worthing /Raytools cutting head, Japan Yaskawa servo motor in XY axis, Japan Panasonic servo motor in Z axis, Taiwan Hiwin square rail, Japan THK guide rail or Taiwan PMI guide rail, Taiwan APEX rack, Taiwan TBI ball screw, Japan SMC or AIRTAC Pneumatic components, France Motoreducer, Cypcut control system, Schneider Electronic Components in France,Tongfei, S&A water chiller.

Parameters of Pipe Cutting Machine

LASER SOURCE
RAYCUS LASER
CUTTING HEAD
RAYTOOLS BT-240
LATHE BED
Huahai Laser
DRIVE MODE
DUAL DRICE
TRANSMISSION

TAIWAN YYC RACH AND PINION
GUIDE RAIL
1 SET OF PMI FROM JAPAN
SERVO MOTOR AND DRIVER
4 SETS OF YASKAWA FROM JAPAN
REDUCER
GERMANY NEUGART
WATER CHILLER
DOLUYO 1P
CONTROL SYSTEM
CYPCUT FROM SHANGHAI, CHINA
COMPUTER
ADVANTECH INDUSTRY COMPUTER
POWER REQUIREMENT
3 PHASE AC 380V 50HZ
GROSS WEIGHT
3.05MTS
TERMINAL ROW
GERMANY WEIDMULLER
RELAY
GERMANY SIEMENS
SOLENOID VALUE
TAIWAN AIRTAC
PROPORTIONAL VALUE
JAPANESE SMC
WORKING SIZE
3000*1500 MM

Model
HB-HC
Processing Area
6000mm*(20mm-200mm)
Length range of pipe cutting
0~6000mm
Laser Power
500W/750W/1000W/1500W/2000W/3000W
Maximum velocity of movement
120m/min
X/Y positioning accuracy
±0.05mm
X/Y Repeated positioning accuracy
±0.03mm/m
Machine dimension
13.5m*2.5m*2.5m

Stainless Steel
0.4-3mm
0.4-4mm
0.4-5mm
0.4-6mm
0.4-8mm
0.4-10mm
Carbon Steel
0.4-6mm
0.4-10mm
0.4-12mm
0.4-14mm
0.4-16mm
0.4-20mm
Aluminum
0.4-2mm
0.4-3mm
0.4-3mm
0.4-4mm
0.4-6mm
0.4-8mm
Fiber Power
500W
750W
1000W
1500W
2000W

3000W

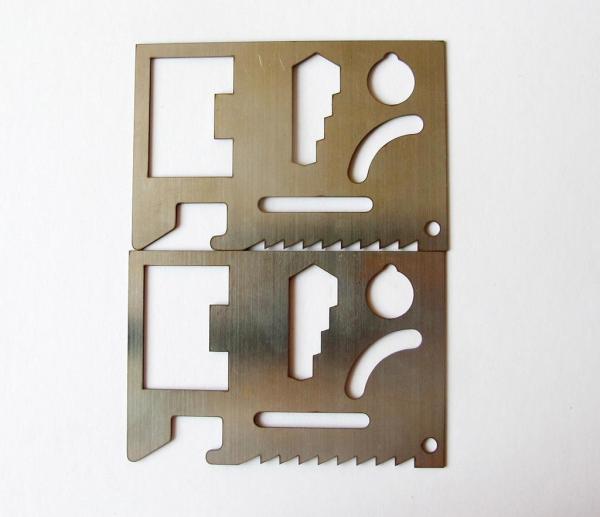

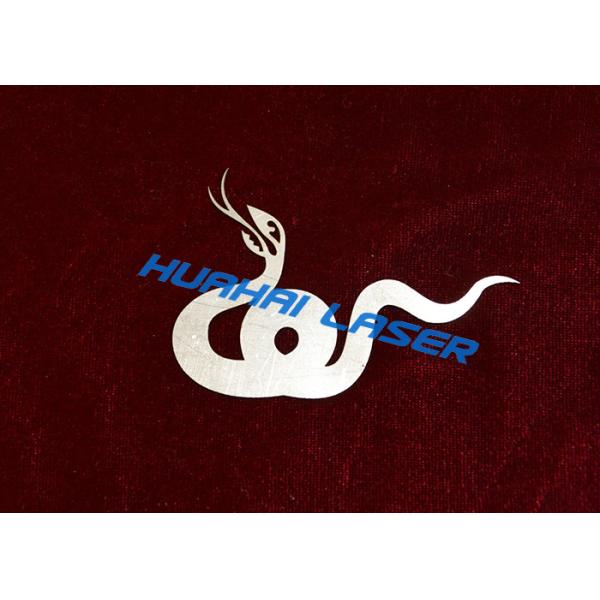

Samples and machine photos

IPG Fiber Laser Cutting Machine , Sheet Metal Laser Cutting Machine High SpeedIPG Fiber Laser Cutting Machine , Sheet Metal Laser Cutting Machine High SpeedIPG Fiber Laser Cutting Machine , Sheet Metal Laser Cutting Machine High Speed
