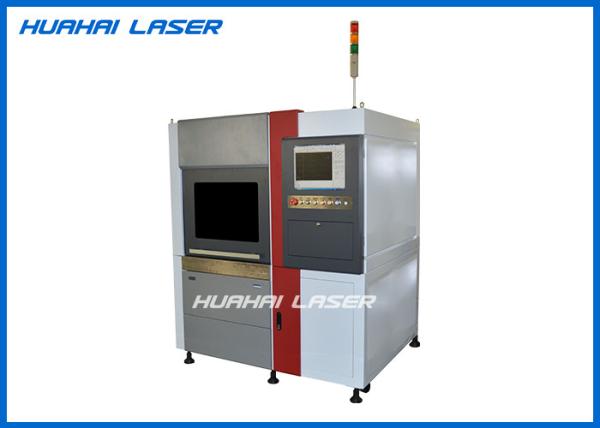

High Precision Metal Fiber Laser Cutting System 600mmx400mm Super Flexible Optical Effects
High Precision Metal Fiber Laser Cutting System 600mmx400mm Super Flexible Optical Effects
High Precision Metal Fiber Laser Cutting System 600mmx400mm Super Flexible Optical Effects
High Precision Metal Fiber Laser Cutting System 600mmx400mm Super Flexible Optical Effects
Specifications
Brand Name :
HUAHAI LASER
Model Number :
HB-HC
Certification :
CE , FDA Certificate
Place of Origin :
CHINA
MOQ :
ONE SET
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 sets per month
Delivery Time :
10-15 working days
Packaging Details :
standard wooden case for export
Laser wave length :
1064nm
Laser source :
Raycus or IPG or JPT
Working area :
600x400mm
Keyword :
Fiber Laser Cutting Machiens
Function :
Precision cutting for metal
After-sales service provided :
Engineers available to service machinery overseas
Description

Small Size Precision Metal Fiber Laser Cutting Machine with 600mmx400mm Factory Price

Machine Production:

1) Excellent beam quality: Smaller focus diameter and high work efficiency.

2) High cutting speed: Cutting speed is more than 20m/min

3) Stable running: Adopting the top world Raycus fiber lasers, stable performance,life 100,000 hours;

4) Low cost & Low maintenance: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption. Fiber line transmission no need reflect lens.

5) Easy operations: fiber line transmission, no adjustment of optical path.

6) Super flexible optical effects: Compact design, easy to flexible manufacturing requirements.

Application Materials:

Used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy,galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.

Application Industries:

Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.

Technicial Parameters:

Item Name

Technical Parameter

1

Model

HB-HC

2

Laser generator

Raycus/JPT/IPG fiber laser

3

Laser power

500W/750W 1000W

4

Laser wavelength

1064nm

5

Working area

600mm*400mm

6

X axis travel

400mm

7

Y axis travel

600mm

8

Z axis travel

Z axis travel 60mm

9

X Y Z axis repositioning accuracy

± 0.02mm

10

X Y axis max position speed

36m/min

11

X Y axis max acceleration

0.8 G

12

Max cutting speed

20m/min

13

Notch gap width

0.1-0.2 mm

14

Cutting accuracy

±0.1mm

15

Installed capacity

8 KVA
16 Rated power voltage 220V/110V 50-60Hz

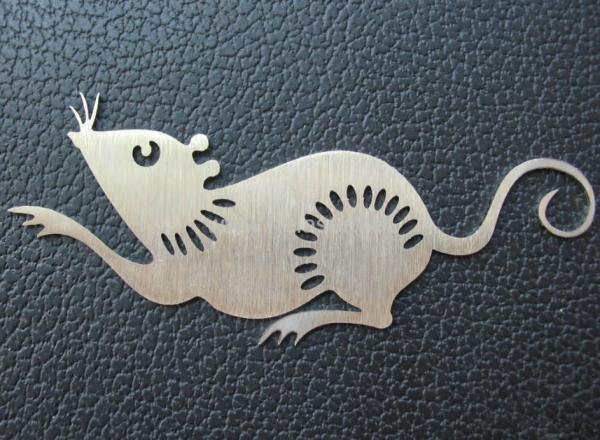

Cutting samples:

High Precision Metal Fiber Laser Cutting System 600mmx400mm Super Flexible Optical Effects
