Handheld Channel Letter Laser Welding Machine , Automatic YAG Laser Welding Machine
Handheld Channel Letter Laser Welding Machine , Automatic YAG Laser Welding Machine
Handheld Channel Letter Laser Welding Machine , Automatic YAG Laser Welding Machine
Handheld Channel Letter Laser Welding Machine , Automatic YAG Laser Welding Machine
Specifications
Brand Name :
Huahai Laser
Model Number :
HB-HW
Certification :
FDA,CE
Place of Origin :
Wuhan,China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100sets/month
Delivery Time :
10days
Packaging Details :
Standard export wooden box packaging
Usage :
stainless steel AD words welding
Max. Output Power :
300w
Single Pulse Energy :
80J
Pulse Width :
<15mm
Wavelength :
1064nm
Focal Spot Diameter :
0.2-3mm
Description

300 Watts Handheld Automatic YAG Channel Letter Laser Welding Machine For Metal

Applicable Material:

Stainless steel,Galvanized iron,Steel,Titanium and other metals.

Applicable Industry:

Widely used in all kinds of stainless steel ,LED channel letter ,LOGO identity,signage,advertising products such as rapid,precision welding.

Advantages:

1. Red point could position quickly, with CCD display, microscope optional
2. Adjustable working table allows welding letters in different sizes.
3. Fast working speed; professional fixture for fixing focal spots, easy for welding without using CCD or microscope
4. Capable of partial heating process.
5. Able to weld complicated, special or tiny letters.
6. Low noise and no pollution.
7. Ultrafine positioning rod makes the welding of tiny corner easier without changing the spot position.
8. By turning a knob, the laser cavity can move in any direction freely for the different sizes letters.
9. The adjustment of parameter setting is very easy; up to 10 sets of the parameters could be memorized for your option.

Features:


(1) Humanization design: very comfortable for operation and reduces fatigue
(2) Welding surface is smooth, without grinding and polishing, saving time and labor
(3) For the advertising industry, special long optical path, scale the wider
(4) High efficiency, special positioning devices, suitable for all kinds of irregular pattern welding
(5) Specially designed long-focus lens with F=200mm, can meet the demand for welding high fonts
(6) Easy installation and fast, simple operation

Specifications:

Type HB-HW300 HB-HW400
Laser source Nd3+:YAG Rod
Rated power 300W 400W
Max. single-pulse energy 90J 120J
Total power 6KW 12KW
Power supply 220V, 40A 380V, 60A
50/60HZ compatible 50/60HZ compatible
Laser wavelength 1064nm
Facula diameter 0.30-3.0mm
Molten pool diameter 0.3mm-3mm
Pulse width 0.2ms-20ms
Pulse frequency 1-50Hz
Controlling system Single-chip microprocessor
Operation interface English
Observing system CCD
Locating system Infrared and locating rod
Working table scale 1000*750mm
3-axis itinerary X=700mm,Y=150mm,Z=200mm

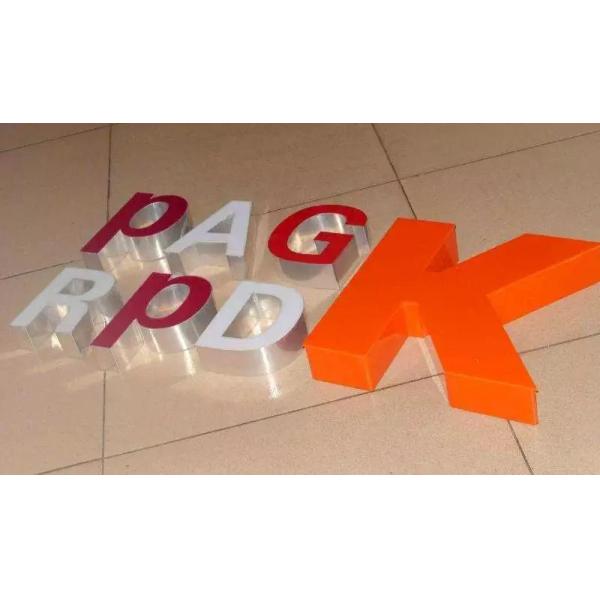

Samples:

Handheld Channel Letter Laser Welding Machine , Automatic YAG Laser Welding Machine
