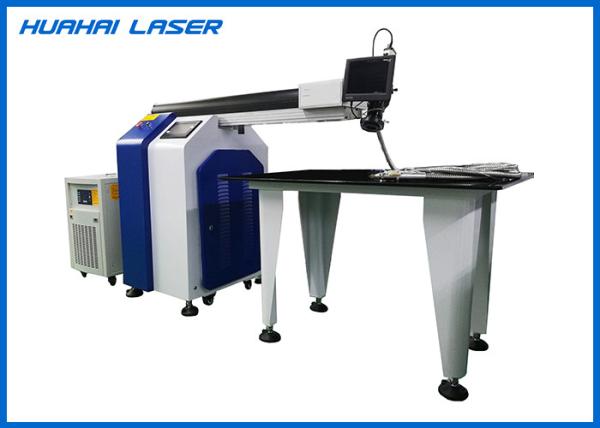

YAG Type Laser Welding Machine For Stainless Steel / Aluminium No Noise
YAG Type Laser Welding Machine For Stainless Steel / Aluminium No Noise
Specifications
Brand Name :
Huahai Laser
Model Number :
HB-HW
Certification :
CE FDA
Place of Origin :
China Made
MOQ :
One set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/P, Western Union
Supply Ability :
80 sets per month
Delivery Time :
8-10 workdays
Packaging Details :
wooden case
Material :
stainless steel ,alloy ,aluminium
Power :
300w/400w/500w
Certificate :
CE FDA
Warranty :
One year
Description

YAG Type Channel Letter Laser Welding Machine 300W 400W 500W With Handheld Welding Head For Welding SS Aluminium

Introduction :

1. Aplication material: stainless steel, steel plate, iron plate and other metal and alloy.

2. Super Welder laser welding word machine advantages: high accuracy, can weld small and complex typeface and LOGO, high speed, no chromatic aberration and trace after welding, with beautiful appearance, no need processing.

3. Aim at advertising word industry, special king-size light path, arbitrary rotation for 360, higher flexible range.

4. No protuberant welding spot on the welding surface, no need the process of polishing and burnishing, saving working time, graceful and steady for the structure.

5. No noise and no pollution.

6. Option CCD Monitor, welding result is much clearer.

Advantages:

1. High depth-to-width ratio, small welding seam

2. Little thermal distortion, small heat affected zone

3. High welding speed

4. Non-contact welding, flexible transmission

5. CCD camera monitoring system

6. Uniform distribution of welding spot energy

Parameters :

Model

HB-HW Laser Welding Machine
Laser Power 300W/500W
Single-pulse Energy 100J/120J
Pulse Width 0.5-15ms
Pulse Frequency 0.5-0Hz
Laser Spot Size Adjusting Range 0.1-3mm
Welding Pool Diameter 0.3-2mm
Whole Power Consumption 9KW
Power Resource AC220V , 50HZ/40A
Standard Configuration Working Table 750*1000mm Max Loading 200KG
Sight Positioning CCD CCD Synchronism High Definition Camera
Laser Device Vertical Travel 150-200mm
Laser Device Horizontal Direction 200-800mm
Warranty 12 Month from Delivery Date
MOQ 1 Set
Delivery Time 10 Days
Packaging Dimensions 1530*830*1100 + 720*510*950mm
After-sale Service Technology Support and Offer Solution on L

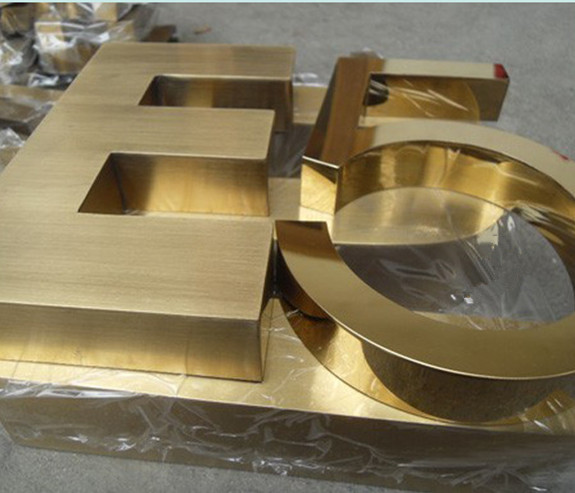

Samples :

YAG Type Laser Welding Machine For Stainless Steel / Aluminium No Noise

YAG Type Laser Welding Machine For Stainless Steel / Aluminium No Noise
