Stainless Steel Parts Advertising Channel Letter Handheld Laser Welding Machine YAG Laser Welder For AD Words Welding

Product Introduction

The working principle of this laser deposition welding system makes most use of the welding technology of high-energy laser energy and

concentration of fixed-point to deal with all the tiny part of the welding effectively.And it makes up the shortage of traditional soldering and argon arc welding technology. Thermal strain and postprocessing are avoided, without environmental pollution, which greatly improves the strength and quality of the connection of metal character or signs.

Product Application for laser welding machine

Application in a variety of boutique words, precision words,mirror word,steel words,titanium words,galvanized sheet words, 3D aluminium words, stainless steel words, precision metal words, titanium plane words, titanium Gold words,seiko titanium,plane copper words,globe plane copper words, and so on. And such these advertisement word and all kinds of metal marking LED metal are being welded and formed.

Machine Features

1. Used super tempered glass working table.About 12mm thickness,with explosionproof film and paint,flat and smooth.

2. Laser crystals: Aadopt the domstic super 7*145 laser rods,every piece all have the LQC qualification certificate.With High gain, low laser threshold, high laser power, beautiful solder joints, stable activity, good thermal conductivity and thermal shock properties.

3. Laser power : Adopt eight super laser power and imported IGBT bipolar transistors, to make the power supply pulse xenon lamp current more constant, high-frequency continuous welding, not easy to decline, and long life.

4. High-power constant-temperature refrigeration water tank,with high control accuracy, Germany EBM electronic fan as a part of the matching condensation, large air volume, low noise and filtration devices, effective filtration of water impurities.

5. Controller:Independent high-definition touch control screen, control pulse current,the setting parameters will be automatically saved(english and chinese for option)

6. Laser head easy to adjust,the vertical stroke can up to 210mm.

7. Used CCD micro monitor, the welding effect is clear.

8. Specially-made moving optical path, flexible, extending focusing lens F = 200MM

9. 5m long handheld tube,suitble for different materl’s welding,more convenient.

10. Easy operation: Men and women all can work, high efficiency, starting up can use directly, welding speed is 5 times than the traditional technology.

11. Environmental and safe: With germany technology, no noise, no pollution, no radiation, can keep working in 24 hours.

12. Innovative structure, stable and solid, easy to operate, humanization,beautiful and atmosphere.

Parameter

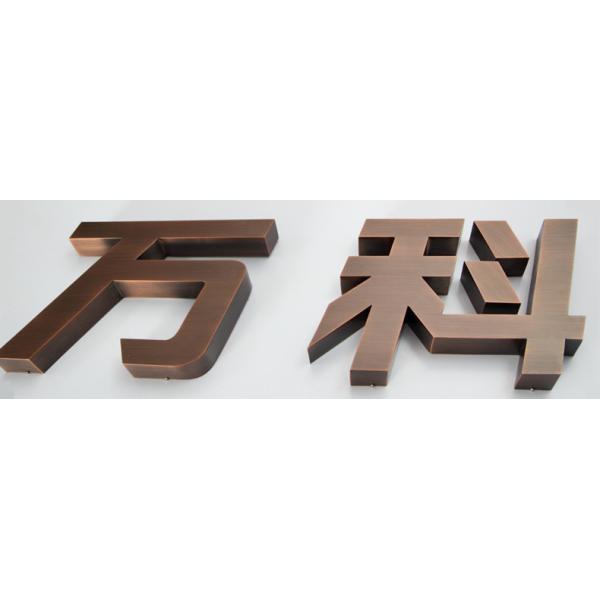

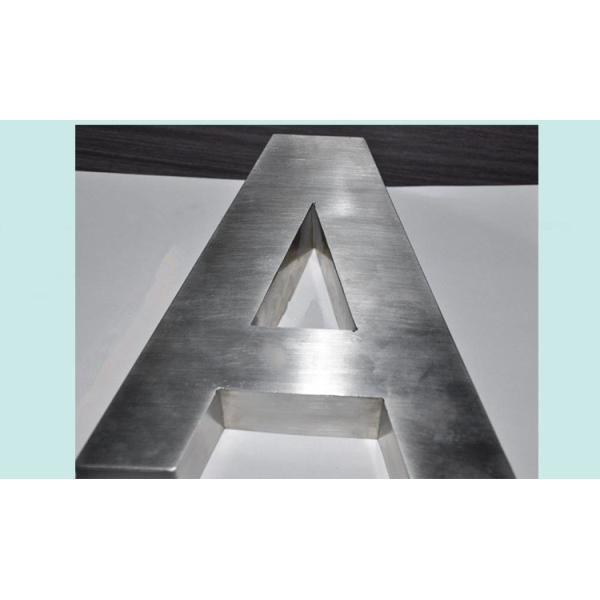

Sample
