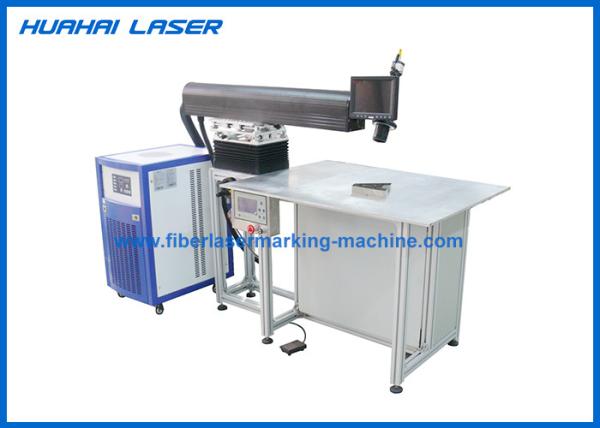

Advertising Sign Aluminum Laser Welding Machine Convenient Easy Installation
Advertising Sign Aluminum Laser Welding Machine Convenient Easy Installation
Advertising Sign Aluminum Laser Welding Machine Convenient Easy Installation
Advertising Sign Aluminum Laser Welding Machine Convenient Easy Installation
Specifications
Brand Name :
Huahai Laser
Model Number :
HB-HW
Certification :
FDA,CE
Place of Origin :
Wuhan,China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100sets/month
Delivery Time :
10days
Packaging Details :
Standard export wooden box packaging
Wavelength :
1064nm
Laser Head Brand :
Worthing
Laser Source Brand :
RAYCUS
Servo Motor Brand :
Panasonic
Warranty :
12 months
Raw material :
Stainless steel,Galvanized steel,Titanium alloy,Aluminum alloy
Description

Aluminum Alloy Advertising Sign Channel Letter Laser Welding Machine

Applications:


Material are mainly stainless steel, copper, aluminum, alloys. And its welding field can be extensive, like cold work alloy steel, hot work alloy steel, nickel tool steel, steel alloy, high tenacity aluminum alloy, etc. Other metals like gold, silver, brass, aluminum-magnesium alloy, titanium, and platinum are also applicable.
It is mainly used in advertising industry for welding channel letter .But the application can also be extended to other fields ,like aeronautical and space, mechanism, electron, communication, dynamic, chemical industry, automobile manufacture, the close welding of lithium ion batteries and other industries.

Main Features:


● The metal sign laser beam welder adopts an ergonomic design, which is comfortable to operate as well as release fatigue and the accompanied software is easy to use.
● Because of the smooth appearance after welding, you don't need to waste time polishing the finished weld.
● A specially enlarged light path and widened telescopic range for the advertising industry make it is possible to weld irregular patterns of characters.
● To suit the high requirement of characters welding, a long focus lens (F=200mm) has been custom designed.
● The machine is easy to install and operate.

The machine can be used to weld the following metal parts:

1. Stainless steel laser welding
2. Galvanized steel laser welding
3. Titanium alloy metal laser welding
4. Aluminum alloy metal laser welding

Specifications:

Type HB-HW300 HB-HW400
Laser source Nd3+:YAG Rod
Rated power 300W 400W
Max. single-pulse energy 90J 120J
Total power 6KW 12KW
Power supply 220V, 40A 380V, 60A
50/60HZ compatible 50/60HZ compatible
Laser wavelength 1064nm
Facula diameter 0.30-3.0mm
Molten pool diameter 0.3mm-3mm
Pulse width 0.2ms-20ms
Pulse frequency 1-50Hz
Controlling system Single-chip microprocessor
Operation interface English
Observing system CCD
Locating system Infrared and locating rod
Working table scale 1000*750mm
3-axis itinerary X=700mm,Y=150mm,Z=200mm
Dimensions P1: 1160*610*1150mm P1: 1260*710*1150mm
P2: 1420*870*1100mm P2: 960+710*1150mm
P3: 1420*870*1100mm
Gross Weight 280Kg 340Kg

Samples:

Advertising Sign Aluminum Laser Welding Machine Convenient Easy InstallationAdvertising Sign Aluminum Laser Welding Machine Convenient Easy Installation
