1064nm Channel Letter Laser Welding Machine For Stainless Steel Parts Advertising
1064nm Channel Letter Laser Welding Machine For Stainless Steel Parts Advertising
Specifications
Brand Name :
HUAHAI LASER
Model Number :
HB-HW
Certification :
CE , FDA certificate
Place of Origin :
CHINA
MOQ :
ONE SET
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 sets per month
Delivery Time :
5-7 working days
Packaging Details :
wooden case for export
Name :
Automatic 3d channel letter bender / letter bending machine
Condition :
New
Wavelength :
1064nm
Material / metal processed :
Stainless Steel,Aluminum
Application :
Bending Metal Materials,Construction Projects,Making Sign Channel Letters
After-sales service provided :
Engineers available to service machinery overseas,Online support,Video technical support
Description

Stainless Steel Parts Advertising Channel Letter Handheld Laser Welding Machine Price​

Machine Production:

With the booming of global advertising industry, metal letters has been more and more popular because of its colorfulness,attractiveness, heating-proof, frozen-proof, no deformation, no fadedness (8-10 years color preservation), corrosion proof, rain-proof, and spontaneous combustion proof and some other good features.
AD metal letters are made of stainless steel, aluminum, brass or other metal sheet being cut, polished, hemmed, and welded. The core feature of AD metal letters is being rustproof, with long life span and dimensional looks. It's widely used in LED illuminated billboard, exterior/interior signs, branding, door plate and etc.

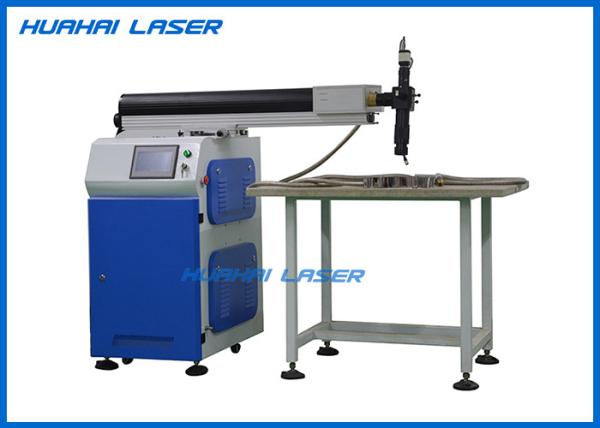

Huahai Laser Channel letter aluminum laser welding machine is used for making a variety of stainless steel letter, LED luminous characters, AD Logos, signs and other fast welding.Logo making, fine word production, metal word production, Copper factory, advertising production company, and so on. Perfectly weld for 0.1-2mm stainless steel, galvanized plate and bronzing plate; 0.1~1.2mm copper brass and aluminum.


Features:

1. Red light finds the welding point fast, CCD intuitive observation, optional microscope.
2. Marble working platform, to ensure that the bright face plate does not scratch.
3. Machining speed, dedicated fixed focus position of the rotation of the bearing rod, without the need for CCD and microscope. It can quickly focus on the welding.
4. Small thermal deformation and heat affected zone.
5. local heat treatment can be carried out on the metal word;
6. Available for the processing of complex shape of parts and small words.
7. Processing without noise, no pollution to the environment;
8. Ultra fine bearing rotating positioning rod, friction plate welding word, also need not adjust the spot position in the font corner.
9. Owing to the advanced processing method, the quality of the existing metal character is greatly improved.
10. LED ring special lighting lamp, no dead spot.
11. The self-produced high peak laser power supply, for other brand is difficult to weld aluminum. The machine can easily achieve (400W models for welding aluminum models).
12. standard models and double light path optional hard light welding small, 5 meter long fiber pen welding with Chinese characters.


Application:


Widely used in all kinds of stainless steel, LED channel letter, LOGO identity, signage, advertising products such as rapid precision welding.

Technical parameters:

Model HB-HW300w/400w/600w
Laser power 300w/400w/600w
Laser medium Nd:YAG and fiber
Laser wave length 1064nm
Welding min. Molten pool 0.1mm
Welding depth 1mm
Pulse width 0.1-20ms continuously adjustable
Pulse rate 1-200Hz continuously adjustable
Viewing system CCD camera and red light positioning
Power ≤6KW
Power source 220V/50Hz/30A
Table format 1000x800mm

After-service

1) Free Pre-Sales Consulting / Free Sample Marking
2) Strict Quality Control of Production
3) 5-7 Days Quick Delivery
4) 1 Year Quality Guarantee
5) 12 hours Quick Feedback & After-Sales Service
6) Quick Back-up Parts Available & Technical Assistance
7) Free Training Service
8) Special Designing, Customized, OEM Order is accepted
.
