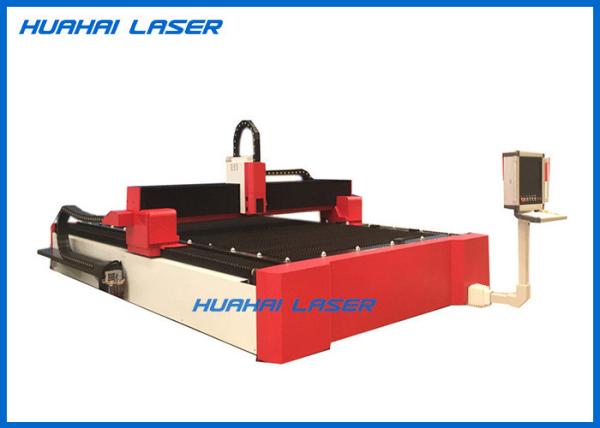

Metal Fiber Laser Cutting Machine , 500W Fiber Laser Cutter With Raycus Laser Source
Metal Fiber Laser Cutting Machine , 500W Fiber Laser Cutter With Raycus Laser Source
Metal Fiber Laser Cutting Machine , 500W Fiber Laser Cutter With Raycus Laser Source
Metal Fiber Laser Cutting Machine , 500W Fiber Laser Cutter With Raycus Laser Source
Specifications
Brand Name :
Huahai Laser
Model Number :
HB-HC
Certification :
CE,FDA,RoHS
Place of Origin :
Wuhan,China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100sets/month
Delivery Time :
20 working days
Packaging Details :
Standard export wooden box packaging
Applicable Material :
Metal, stainless steel/silver/gold/brass
Laser Type :
Fiber Laser
Cutting Area :
1300*2500mm 1500*3000mm
Cutting Speed :
0-24,000mm/min
Graphic Format Supported :
ported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Cutting Thickness :
0.5-22mm(depend on materia)
Description

500watts Fiber Laser Cutting Machine With Raycus Laser Source For Metal Plate Cutting

Description:

This machine adopting high quality fiber laser and high precision WIRON square railv drivre by helical gear.Controlled by advanced automatiic numerical system.This high technology machine is a combination of laser cutting and automatic CNC machine.
Such perfect combination guarantee its high speed,precision,efficient and low cost .
So it is a preferred cutting machine for batch processing of metal material.

Features:

1. High speed,High precision,High endurance and Low cost.
2. Easy to operate.And fiber transmission saves the complex laser path.
3. Equipped with automatic discharging system,which saves processing time and cost of plate.Utilization rate of plate can reach to 95%.
4. Open worktable ,simple operation and small space occupation.
5. HIgh performance cast aluminum guide rail,after finite element analysis,realize highly accelerated speed circular cutting.
6. High-rigidity heavy chassis,reducing the vibration generated during high-speed cutting greatly.

Application Industries:


Electric Cabinet,Petroleum Manufacturing,Shipping building,Elevator Manufacturing,Construction Machinery, Agricultural Machine,Aerospace,Advertising Decoration,Steel Processing,Fitness Equipment,Home Decoration,Automotive Manufacture.


Applicable materials:


Laser cutting machine is professional used in rapid cutting on metal plates, such as stainless steel, carbon steel, galvanized plate, many kinds of alloy, etc. If you want to cut high reflection metal materials, such as brass, copper, aluminum etc. Huahai Laser can customize the metal cutting machine according to your demands.

Specifications:

Laser output power 500W/750W/1000W/1500W//2000W
Laser wavelength 1070 nm
Max cutting speed 12m/min
Max cutting thickness 3-15mm according to watt and material
Output energy regulating 10%~100%
Input electric power for laser ≤2KW
Type of cooling Water cooling
Laser source IPG/Raycus
Cutting head Raytool
Controlling system Cypcut
Drive mode Imported servo motor
Max-range for cutting 3000mm×1500 mm/ 2500x1300mm
Power supply 380V/50HZ
Gross weight 3MTS

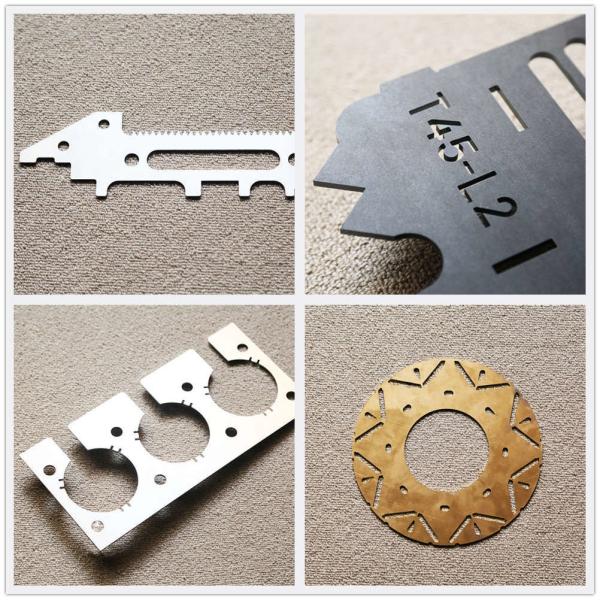

Samples:

Metal Fiber Laser Cutting Machine , 500W Fiber Laser Cutter With Raycus Laser Source
