800W Handheld Laser Welding Machine For Steel Aluminum Alloy Door Windows
800W Handheld Laser Welding Machine For Steel Aluminum Alloy Door Windows
Specifications
Brand Name :
HUAHAI LASER
Model Number :
HB-FW500
Certification :
CE, FDA
Place of Origin :
HUBEI, CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 sets per month
Delivery Time :
10 days
Packaging Details :
Durable export wooden box
Laser Wavelength :
1064nm
Warranty :
2 years
Laser Source :
JPT 800W
Fiber length :
5-10m customized
Cooling mode :
water chiller inside
Power supply :
220V or 380V 50/60HZ
Description

800W Handheld Laser Welding Machine For Steel Aluminum Alloy Door Windows

Product Application

It can weld many different kinds of metal, includes stainless steel, carbon steel, brass, aluminum alloy, Zinc plated board, etc.

It is widely used in kitchen and sanitary industry, aerospace, instruments, metal processing industry, household appliances industry, advertising industry, die industry, stainless steel products industry, stainless steel engineering industry, doors and windows industry, handcraft industry, household goods industry, furniture industry, automobile parts industry etc.

Advantages

Compared to old welding methods :

Safety ---It has the laser beam output control. Only when the welding head touches the metal surface, the machine can work. It can meet the CE and FDA safety standard. Level Ⅳ

Low consumption ---Its electricity consumption is only 1-2 degree in one hour. That’s other old method cannot compete.

Performance ---The welding spot is even and the welding surface is very smooth and beautiful. Not need the second process after welding. No need skilled arc welder workers. It will save much time cost and labor cost.

Convenience ---Portable handheld welding head is suitable for holding. The machine only have one box, which can be moved easily. No matter how big of your article, it can do the work.

The standard welding head fiber is 5M long, we could offer 10M customized.

Small dimension ---The integrative design makes the machine dimension small. It is suitable for all transportation ways, includes the express, by air, by sea, by train.

Technical Parameters

Model HB-FW500 HB-FW800 HB-FW1000
Max.laser output power 500W 800W 1000W
Working mode Continuous or modulate
Laser wavelength 1070mm
Beam quality M2<1.1 M2<1.15 M2<1.2
Standard output laser power ± 2% ± 2% ± 2%
Line width <4nm <4-5nm <5nm
Power supply AC220V ±10% 50/60Hz AC220V ±10% 50/60Hz AC380V ±10% 50/60Hz
Cooling system Water cooling Water cooling Water cooling
Straight modulate 0-5KHZ 0-5KHZ 0-5KHZ
Whole machine power consumption 4KW 5KW 6KW
Welding ability
Metal Output power (W ) Welding depth (mm) Speed (m/min)
Stainless steel 500 1.5 1
Stainless steel 500 0.5 8
Stainless steel 750 2 1
Stainless steel 750 0.5 10
Stainless steel 1000 2.5 1
Stainless steel 1000 0.5 15

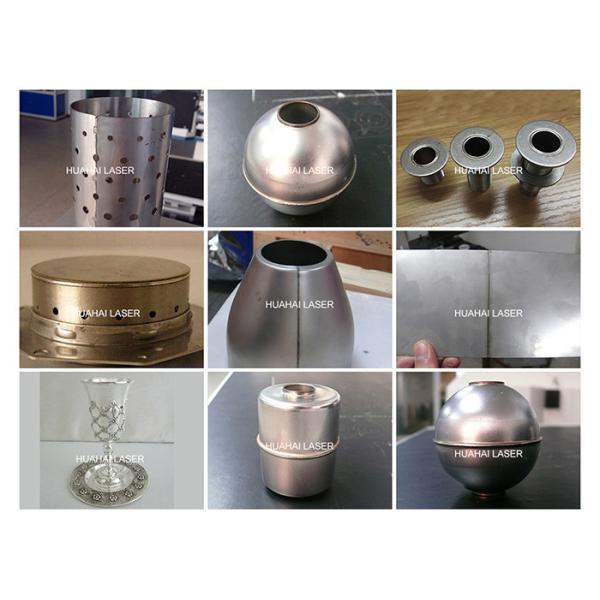

Sample show

800W Handheld Laser Welding Machine For Steel Aluminum Alloy Door Windows
