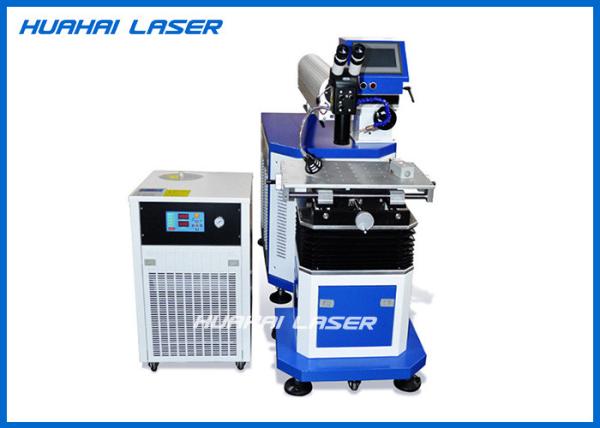

Micro Precision Laser Mould Welding Machine Smooth Mobile Arm Easy Operation
Micro Precision Laser Mould Welding Machine Smooth Mobile Arm Easy Operation
Micro Precision Laser Mould Welding Machine Smooth Mobile Arm Easy Operation
Micro Precision Laser Mould Welding Machine Smooth Mobile Arm Easy Operation
Micro Precision Laser Mould Welding Machine Smooth Mobile Arm Easy Operation
Micro Precision Laser Mould Welding Machine Smooth Mobile Arm Easy Operation
Specifications
Brand Name :
Huahai Laser
Model Number :
HB-FW
MOQ :
1set
Payment Terms :
Western Union, T/T, L/C
Delivery Time :
7-10 work days
Packaging Details :
Standard fumigation - free tri-board export wooden cases
Certification :
CE FDA
Place of Origin :
Wuhan,China
Price :
Negotiable
Supply Ability :
100sets/month
Spot adjusting range :
0.1 - 3mm
Laser cooling :
Water cooling
Laser type :
Nd:YAG pulse xenon lamp
Pulse frequency :
≤50Hz
Display version :
Engilsh
Single Pulse Energy :
120j
Description

Micro Precision Mold Laser Welding Machine YAG Laser Welder For Metal Mold Mould Die Repair Weld Equipment

Huahai mould laser welding machines were designed and Produced by our Company directly .It can repairing the general size mould (mold) very well and smooth. Our this kind of laser welding machines use Germany Laser Source and the most best quality Laser power supply for it . Feedback laser Energy system keep welding effects stable during the welding action and EMI technoligy with it .

Main Features

1. Ceramic converging cavity is imported from the Britain. Laser welder is corrosion resistant and high temperature resistant, and has 8 -10 years’ service life. The life of xenon lamp is more than 8 million times.

2. Use the most advanced light shielding system to eliminate the irritation to eyes by light during working.

3. The laser head and optics part can be rotated for 360°, upward/downward lifting and forward/backward pushing, suitable for repairing of large, medium and small moulds.

4. The parameters are controlled by intelligent remote controller, which is simple and convenient.

5. The work bench can be lifted, and moved in three dimensions.

6. The size of light spot can be adjusted.

7. Smooth mobile arm, easy to operate.

Main Advantages

1. Using the anti- erosive, high-temperature resistant and ceramic reflector cavity imported from England, and the life-span of the cavity up to 8-10 years, and that of the Xenon more than 8 million times.
2. Adopting the most advanced auto light-shielding system in the word to prevent the Laser from stimulating your eyes.
3. The Laser head and the entire optical path can rotate 360 degrees, and it uses the electric lift and drives horizontally.
4. Electric adjustment of the size of the light spot.
5. Both manual welding and automatic mass production are available.

Applicable materials and fields

high alloy steel, hot forging high alloy steel, nickel steel, high-grade steel, copper alloy, beryllium copper, high strength and toughness aluminum alloy and other metal materials.

Applicable industry:digital products , mobile phones, toys, automobiles, motorcycles and other mould marking industries.

The shape of welding

point, circle, arc and square, etc.

Technical Parameters

Type
HB-FW200M
HB-FW300M
HB-FW400M
Three axis table
X=250mm,Y=180mm
Table capacity
≤200KG
≤200KG
≤200KG
Machine battery
220V±10%/50/60z
380V±10%/50/60Hz
380V±10%/50/60Hz
Laser type
Nd:YAG pulse xenon lamp
Nd:YAG pulse xenon lamp
Nd:YAG pulse xenon lamp
Spot adjusting range
0.1~3mm
0.1~3mm
0.1~3mm
Peak wavelength
1064nm
1064nm
1064nm
Pulse width
≤20ms
≤20ms
≤20ms
Rated output power
180W
270W
360W
Maximum laser power
200W
300W
400W
Pulse frequency
≤50Hz
≤50Hz
≤50Hz
Laser output focal length
100mm
100mm
100mm
Laser cooling
Water cooling
Water cooling
Water cooling
Monitor
Microscope( rotate360º)
Microscope( rotate360º)
Microscope( rotate360º)
Protective gas
1(argon)
1 (argon)
1 (argon)
Cold water capacity
2700W
3500W
5000W
Wire diamter
0.1mm~0.6mm
0.1mm~0.8mm
0.1mm~1.0mm
Dimension
Main engine
1250*580*1200mm
Chiller
700*500*900mm
Main engine
1250*580*1200mm
Chiller
700*500*900mm
Main engine
1250*580*1200mm
Chiller
700*500*900mm
Power
900*600*700MM

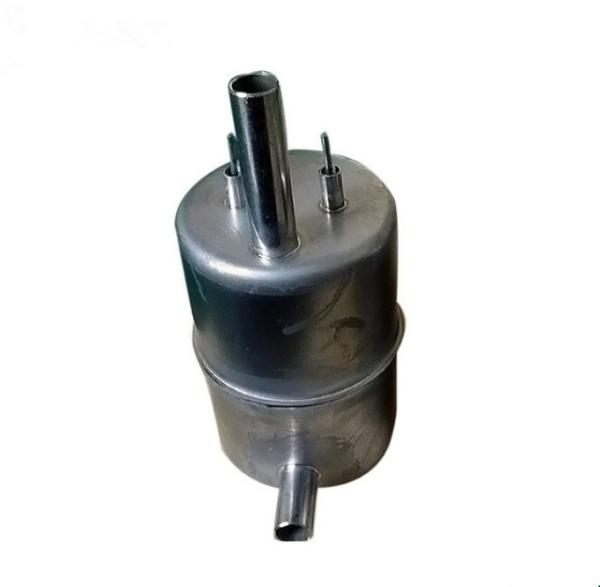

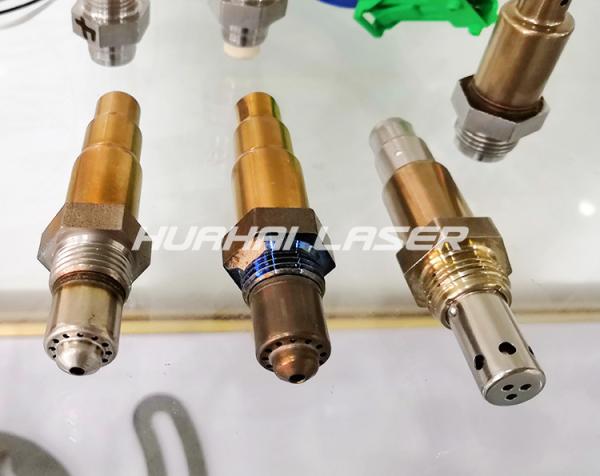

More photos and sampls

Micro Precision Laser Mould Welding Machine Smooth Mobile Arm Easy OperationMicro Precision Laser Mould Welding Machine Smooth Mobile Arm Easy Operation
