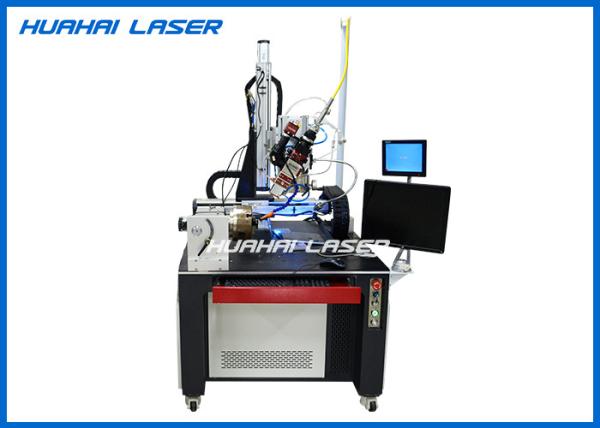

Water Cooling Fiber Laser Welding Machine , 1500W Laser Spot Welding Machine
Water Cooling Fiber Laser Welding Machine , 1500W Laser Spot Welding Machine
Specifications
Brand Name :
HUAHAI LASER
Model Number :
HB-FW1500
Certification :
CE , FDA
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
200sets per month
Delivery Time :
7-10 working days
Packaging Details :
standard export wooden case
Laser source :
Raycus
Laser Power :
1500w
Laser wavelength :
1064nm
Warranty period :
2 years
Voltage :
220V or 380V 50/60kHZ
Cooling Mode :
water cooling
Welding head :
Ospri
Travelling distance :
400*300*150mm
Control software :
C6L
Laser Lifetime :
100000 hours
Description

1500W Raycus Fiber Laser Welding Welder Machine For Steel And Brass

Product advantages

1. high speed ,high precision, more refined appearence .

2. the size of solder joints can be adjusted according to the requirements, and the heat affected zone is small, which will not cause the deformation of product precision .

3. it can weld small and fine geometry, suitable for all size of products.

4. density welding does not appear porosity and trachoma , can be directly grinded and polished .

5. the laser beam quality is excellent, the weld speed is fast ,the welding seam is strong and beautiful , and the utility model has the advantages of high efficiency and perfect welding scheme for users.

6. industrial PC control, the workpiece can do plane trajectory movement, you can weld points, straigh line, circles, squares ot straight line, and arcs composed of arbitrary planar graphics.

7. high convesion rate, low energy consumption, long time use can save a lot of processing costs for uesrs.

8. high relibility, can be 24 hours continuous and stable prosessing, to meet the need of industrial mass pruduction and processing.

9. special customization ability, according to customer demand tailored exclusive models.

Application Of Fiber Laser Welding Machine

Titanium, aluminum, copper, zinc, gold, sliver, alloy, carbon steel and stainless steel, cooper-brass, cooper-titanium, nickel-cooper, cooper-titanium and many other heterogeneous metals. It can implement precision between the same metals and dissimilar metals.

1. Auto parts industry, Engine cylinder gasket, Hydraulic tappet seal welding.
2. Filter seal welding, The sport plug welding, The valve push rod welding.
3. Anti-collision airbag electric detonator seal welding, The crankshaft or cylinder liner or heat treatment, etc.
4. Stainless steel advertising words, Microelectronics components, precision parts. High digital components, optical fiber connector, medical apparatus and instruments, etc.

Technical Parameter

Configuration Description
laser source Raycus
output power >750W
Welding head Ospri
wavelength 1080±10nm
Frequency 20-50khz
Red pointer yes
Max Power consumption 10000W
power range 10-100%
X Y Z Axis traveling distance 300*300*200mm
Cooling system Constant temperature water-cooled machine
Software C6L
operation moudle continuous or modulate
Line width <5nm
Focus distance 150mm
voltage for main machine AC380V±10% 50/60KHZ
voltage for Chiller AC220V±10% 50/60KHZ
Protective gas N 2, purity 99.5%-99.999%
Rotary jig 130mm
safety glasses 1 pair
protection lens 2 pcs
24 hours continuous working Yes
laser lifetime >100000 hours

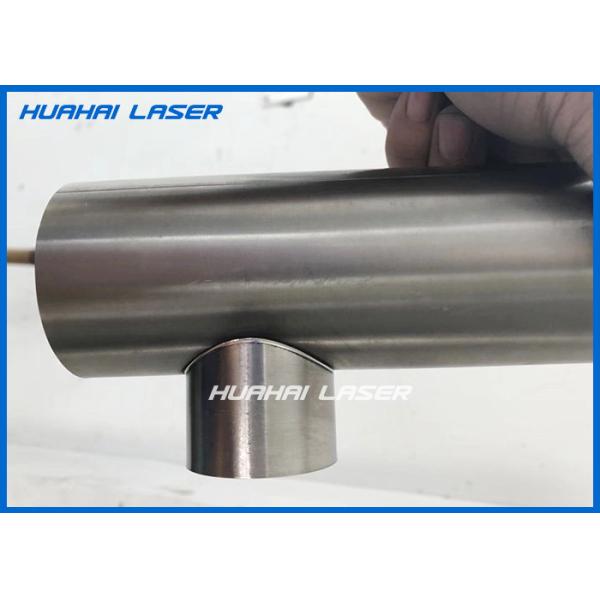

Sample show

Water Cooling Fiber Laser Welding Machine , 1500W Laser Spot Welding Machine
