Automatic Fiber Laser Cleaning Equipment 10mm - 80mm Accurate Paint Removal Effects
Automatic Fiber Laser Cleaning Equipment 10mm - 80mm Accurate Paint Removal Effects
Automatic Fiber Laser Cleaning Equipment 10mm - 80mm Accurate Paint Removal Effects
Automatic Fiber Laser Cleaning Equipment 10mm - 80mm Accurate Paint Removal Effects
Specifications
Brand Name :
Huahai Laser
Model Number :
HB-HC
Certification :
CE
MOQ :
1
Payment Terms :
T/T, Western Union
Delivery Time :
15 work days
Packaging Details :
Standard wooden export package
Place of Origin :
Wuhan, China
Price :
Negotiable
Supply Ability :
100sets/month
Laser source :
IPG , Raycus , JPT
Laser power :
100W 200W 300W 500W
Clean width :
10-80mm
Applied industry :
Ship , truck , bike metal paint oil laser cleaning
Warranty :
Two years
Laser type :
Fiber laser
Description

Laser Cleaner 200W 500W Metal Rust Oxide Painting Coating Removal Laser Remover Cleaning Equipment

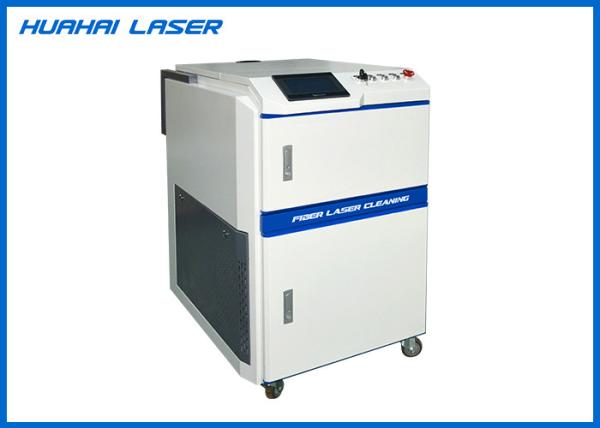

Machine description

Huahai Laser 's Laser cleaning machine is a new generation of surface cleaning and high-tech products. It has the functions of easy installation, manipulation and automation. When connecting the power and opening the equipment, cleaning function can be carried out without chemical reagent, medium, dust, water. Handheld laser rust remover also can automatic focusing and surface cleaning. Not only that, handheld laser cleaner can clear surface resin, grease, dirt, stains, objects burning, coating, embroidered paint.

Technical Advantages


1, Clean or remove the surface paint layer quickly and smoothly.
2, Accurate cleaning and paint removal effects;
3, No damage to the substrate;
4, Low cost;
5, Investment recovery is fast;
6, No need to sand grit or chemical;
7, The equipment does not need to be set up.

Main Features

1. Non-contact cleaning without damage to parts matrix.
2. Precision cleaning, laser cleaning machine can achieve precise location and selective cleaning.
3. Handheld laser cleaner can remove rust without any chemical cleaning fluid, no supplies, safety and environmental protection.
4. Simple operation, just turn on the power, the machine can achieve automated cleaning.
5. Handheld laser rust remover cleaning efficiency is very high, save time.
6. Laser cleaning system is stable, no maintenance.

Application Field

Marine industry, auto parts, rubber molds, high-end machine tools, tire molds, rails, stone ,environmental protection industry and other industries.

Parameters

Voltage

Single-phase 220V±10%, 50/60Hz AC

Machine power consumption

800W / 2000W / 3000W / 4500W

Placed environment

Flat, no vibration, no impact

Working temperature

5℃～40℃

Working environment humidity

≤80%

Optical parameter

Average laser power

≥100W 200W 300W 500W

Power adjustment range (%)

10-100(adjustable)

Repeat frequency(KHz)

50-100(adjustable)

Cleaning efficiency(m2/h)

4 / 9 / 16 / 25

focal length(mm)

160 / 210

Cooling way

Air cooling for 100w / Water cooling for 200w 300w 500w

Mechanical parameters

Machine size

Different model different size

Weight

140Kg - 350Kg

Fiber length

5m(Customized accepted)

Scanning head weight

2.5Kg / 3.5KG

Scanning width

10-80mm

Moving way

Handheld

Laser source

Raycus , IPG

Laser power

100w

SPECIFICATIONS FOR FIBER LASER CLEANING MACHINE

Laser

Laser Medium

Fiber laser

Laser Power Rate

W

100 /200 /300 / 500

Laser Wavelength

Nm

1064

Cleaning Parameters

Cleaning Width

Mm

10-80

Cleaning Effective

m3/h

Depend on

Cleaning Rate Adjusting Scope

%

10-100

Power Supply

Power Voltage

V

220 / 110 (±10%)

Frequency

Hz

50/60

Whole Power Rate

W

800 / 2000 / 3000 / 4500

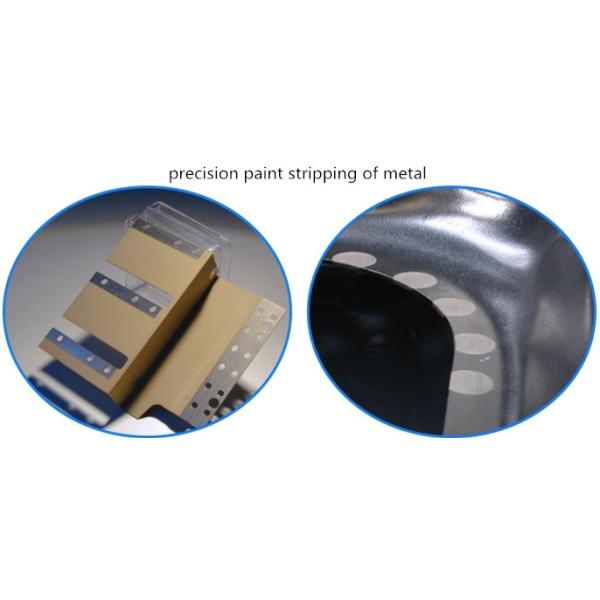

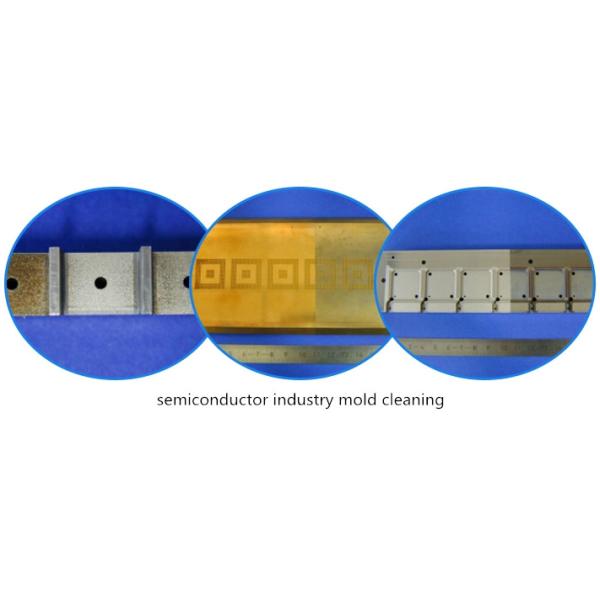

Samples

Automatic Fiber Laser Cleaning Equipment 10mm - 80mm Accurate Paint Removal Effects

Automatic Fiber Laser Cleaning Equipment 10mm - 80mm Accurate Paint Removal Effects
