High Reliability Industrial Laser Welding Machines 400W Low Loss Easy Operation
High Reliability Industrial Laser Welding Machines 400W Low Loss Easy Operation
High Reliability Industrial Laser Welding Machines 400W Low Loss Easy Operation
High Reliability Industrial Laser Welding Machines 400W Low Loss Easy Operation
Specifications
Brand Name :
Huahai Laser
Model Number :
HB-HW
Certification :
FDA,CE
Place of Origin :
Wuhan,China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100sets/month
Delivery Time :
10days
Packaging Details :
Standard export wooden box packaging
Power :
400watts
Wavelength :
1064nm
Laser Head Brand :
Worthing
Laser Source Brand :
RAYCUS
Servo Motor Brand :
Panasonic
Warranty :
1 year
Description

400W Channel Letter Laser Welding Machine For Aluminum , Stainless Steel

Introduction:

1. Application material: stainless steel, steel plate, iron plate and other metal and alloy
2. Laser welding word machine advantages: high accuracy, can weld small and complex typeface and LOGO, high speed, no chromatic aberration and trace after welding, with beautiful appearance, no need processing
3. No protuberant welding spot on the welding surface, no need the process of polishing and burnishing, saving working time, graceful and steady for the structure
4. No noise and no pollution
5. Option CCD Monitor, welding result is much clearer
6. Engineers can quickly learn to operate
7. Low loss, one hour down to 2 KW/h

Main Features:


● The metal sign laser beam welder adopts an ergonomic design, which is comfortable to operate as well as release fatigue and the accompanied software is easy to use.
● Because of the smooth appearance after welding, you don't need to waste time polishing the finished weld.
● A specially enlarged light path and widened telescopic range for the advertising industry make it is possible to weld irregular patterns of characters.
● To suit the high requirement of characters welding, a long focus lens (F=200mm) has been custom designed.
● The machine is easy to install and operate.

Application:

Advertising letter laser welding machine is used for making a variety of Stainless Steel Letter,Iron Steel, Aluminum, LED Luminous characters, LOGO, signs and other fast welding.

Specifications:

Type HB-HW400
Laser source Nd3+:YAG Rod
Rated power 400W
Max. single-pulse energy 120J
Total power 12KW
Power supply 380V, 60A
50/60HZ compatible
Laser wavelength 1064nm
Facula diameter 0.30-3.0mm
Molten pool diameter 0.3mm-3mm
Pulse width 0.2ms-20ms
Pulse frequency 1-50Hz
Controlling system Single-chip microprocessor
Operation interface English
Observing system CCD
Locating system Infrared and locating rod
Working table scale 1000*750mm
3-axis itinerary X=700mm,Y=150mm,Z=200mm
Dimensions P1: 1260*710*1150mm
P2: 960+710*1150mm
P3: 1420*870*1100mm
Gross Weight 340Kg

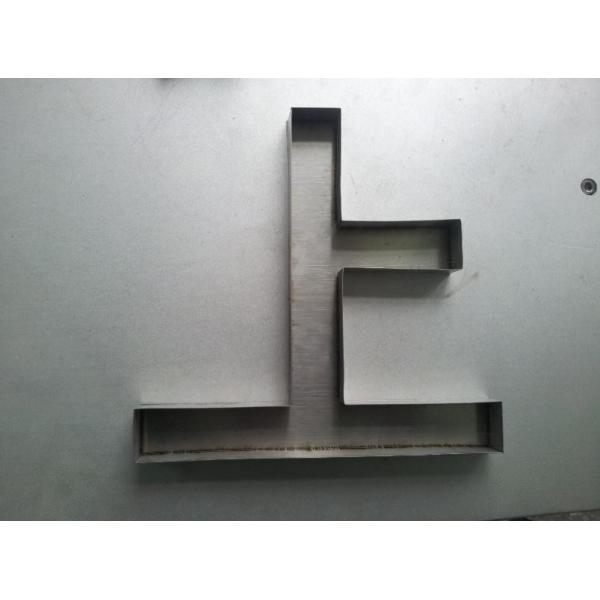

Samples:

High Reliability Industrial Laser Welding Machines 400W Low Loss Easy OperationHigh Reliability Industrial Laser Welding Machines 400W Low Loss Easy Operation
