High Speed Jewelry Laser Welder 150W 200W For Silver Gold Copper Polyfunctional
High Speed Jewelry Laser Welder 150W 200W For Silver Gold Copper Polyfunctional
High Speed Jewelry Laser Welder 150W 200W For Silver Gold Copper Polyfunctional
High Speed Jewelry Laser Welder 150W 200W For Silver Gold Copper Polyfunctional
Specifications
Brand Name :
Huahai laser
Model Number :
HB-SW 150W/200W
Certification :
CE FDA
Place of Origin :
Wuhan China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 sets/ Month
Delivery Time :
5-10 working days
Packaging Details :
Wood Package
Output Power :
150W 200w
Laser Style :
YAG
Power Supply :
220V+_10, 50/60hz ; 380V+_10, 50/60hz
Usage :
Jewelry Laser Welding Machine
Description

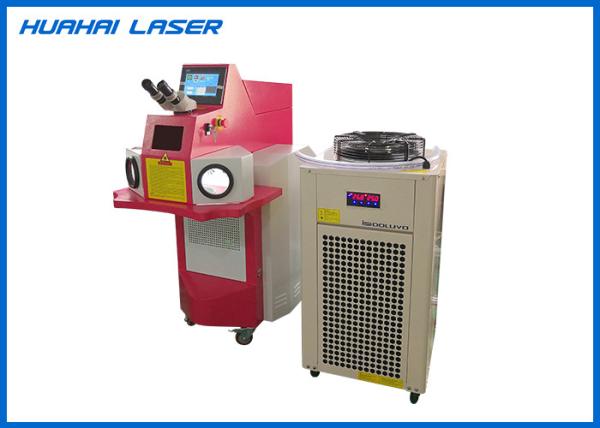

HUAHAI Laser Jewelry Laser Welding Machine For Silver , Gold , Copper

(HB-SW 150W/200W)

Introduction of Jewelry Laser Welding Machine:

This welder is mainly used in perforating and spot welding of gold and silver jewelry. The laser spot welding is an important aspect of laser process technology application. The spot welding process is thermal conduction, i.e. the laser radiation heats the surface of work piece, and the surface heat diffuses to the interior through thermal conduction and melts the work piece by controlling the width, energy, peak power and repeating frequency of laser pulse to form specific molten pool. Because of its unique advantage, it is widely used in the process of gold and silver jewelry and welding of mini and small parts.

Application of Jewelry Laser Welding Machine:

Widely used in aviation, aerospace, sports products, jewelry, golf head, medical instrument, titanium alloy denture, instrument, electronics, machinery, automobile, etc, especially for the perforating of gold and silver jewelry, spot welding, repairing, inlay and welding of claw.

Parameters:

Model No. HB-SW 100W HB-SW 150W HB-SW 200W
Laser Source Nd: YAG
Laser Wavelength 1064nm
Rated Power 100W 150W 200W
Laser Energy 40J 60J 80J
Pulse Width ≤20ms
Pulse Frequency ≤50Hz
Beam Diameter 0.1-3.0mm
Power Supply 220V±10% /50Hz
Observing System microscope
Chamber Illumination LED lamps
Parameters Memorization 10 groups
Protection Alert flow alert
Language Display Chinese/English
Shield Gas Supply One line
Cooling System water cooling
Power Consumption 4KW 5KW 6KW
Welding Chamber Dimensions 300mm*450mm*150mm(L*W*H)
Machine Dimensions 920mm*560mm*1220mm (L*W*H)
Running Environment 5℃-30℃, 5%-75% humidity
Net Weight 130kg(welder)+50kg(chiller)

Samples:

High Speed Jewelry Laser Welder 150W 200W For Silver Gold Copper Polyfunctional
