YAG Jewelry Laser Welding Machine , Jewellery Laser Soldering Machine 200 Watt
YAG Jewelry Laser Welding Machine , Jewellery Laser Soldering Machine 200 Watt
YAG Jewelry Laser Welding Machine , Jewellery Laser Soldering Machine 200 Watt
YAG Jewelry Laser Welding Machine , Jewellery Laser Soldering Machine 200 Watt
Specifications
Brand Name :
Huahai Laser
Model Number :
HB-SW
Certification :
CE,FDA
Place of Origin :
Wuhan,China
MOQ :
1set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100sets/month
Delivery Time :
10days
Packaging Details :
Standard export wooden box packaging
Price :
Negotiable
Usage :
Jewelry welding
Laser type :
YAG
Wavelength :
1.06μm
Pulse Width :
0.2-20ms
Focal Spot Diameter :
0.1-3.0mm
Adjustment range of light spot :
0.1-0.3mm
Cooling System :
Water Cooling
Input voltage :
AC 220V 50Hz
Pulse Frequency :
0-20Hz
Applied material :
gold ,silver,titanium,white gold
Description

200watts YAG Jewelry Laser Welder for Gold Silver Stailess Steel Ring Bracelet Necklace Welding

Introduction:


Spot welding is an important and basic aspect of laser welding technology. When laser radiation heats the surface of work-piece, the surface heat diffuses to the interior through thermal conduction and melts the work piece by controlling the width, energy, peak power and repeating frequency of laser pulse to form specific molten pool. Because of this unique feature, it is widely used in processing of precious jewelry or welding of precision parts.

Advantages:


1. Energy, pulse width, frequency and focus can be adjusted within a wide range to achieve different welding effects.
2. Ceramic reflector used in the laser pump chamber is imported, which is corrosion resistant, high temperature resistant, high electrical/optical conversion.
3. World-leading automatic light shielding system is employed to remove harmful lighting on eyes during operation.
4. 24-hour continuous operation, with stable operating performance,
5. Free of maintenance within 10000 hours.
6. Personalized design in compliance with ergonomics principles.

Application:


This welder is specially used for spot welding, perforating, repairing, retipping and resizing of gold/silver/titanium/platinum jewelry and small accessories. Also widely used in aviation, aerospace, sports products, medical instrument, titanium alloy denture, instrument, electronics, machinery, automobile, etc.

Jewelry laser welder is designed for jewelry ornaments manufacturing, jewelry repairing, rings or bracelets resizing, gold and silver re-tipping, stone setting, eyewear welding or repairing, denture welding, small auto parts welding, etc. Generally, it is especially suitable for tiny target precision welding. It works on gold, platinum, titanium, silver, copper, nickel, aluminum, magnesium, stainless steel, etc.

Specifications:

Model No. HB-SW200
Laser Source Nd:YAG
Laser Wavelength 1064nm
Rated Power 200W
Laser Energy 80J
Pulse Width 1.5~20ms adjustable
Pulse Frequency ≤50Hz
Beam Diameter 0.1-3.0mm

Focal Length

100mm
Power Supply 220V±10% /50Hz and 60Hz compatible
Observing System microscope 10X
Chamber Illumination LED circle lamps
Parameters Memorization 10 groups
Protection Alert flow alert
Language Display Chinese/English
Shield Gas Supply One line(Argon)
Cooling System water chiller
Power Consumption 6KW
Welding Chamber Dimensions 340mm*540mm*180mm(L*W*H)
Machine Dimensions

Welder:970mm*570mm*1220mm (L*W*H)

Chiller:430*370*585mm(L*W*H)
Running Environment 5℃-30℃, 5%-75% humidity
Net Weight 150kg(welder)+65kg(chiller)

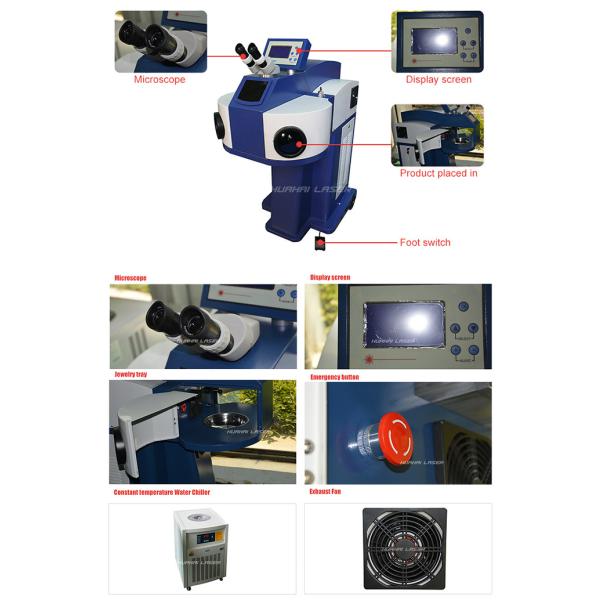

YAG Jewelry Laser Welding Machine , Jewellery Laser Soldering Machine 200 Watt

Samples:

YAG Jewelry Laser Welding Machine , Jewellery Laser Soldering Machine 200 WattYAG Jewelry Laser Welding Machine , Jewellery Laser Soldering Machine 200 Watt

Service:


1) Free Pre-Sales Consulting / Free Sample Welding
2) Strict Quality Control of Production
3) 1 Year Quality Guarantee
4) 12 hours Quick Feedback & After-Sales Service
5) Quick Back-up Parts Available & Technical Assistance
6) Free Training Service
7) Special Designing, Customized, OEM Order is accepted
