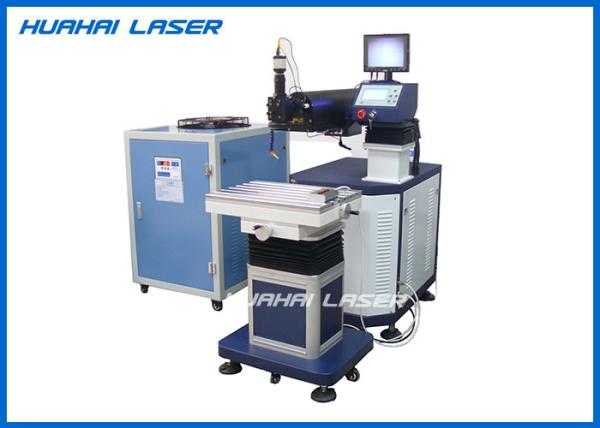

300w Handheld Die Mould Laser Welding Machine For Stainless Steel Laser Spot Welding

Introduction:

Laser welding a high efficient precision welding method which is in the use of high energy density laser beam as a heat source . Laser welding is one of the important aspects of laser processing technology. Laser radiates and heats the workpiece surface, The surface heat diffuses to the inside through heat conduction, Then the laser makes the workpiece melting and form the specific welding pool by controlling the laser pulse width, energy, peak power and repetition frequency. Due to its unique advantages, it has been successfully applied to the precise welding for micro parts and small parts.
Laser welding is fusing welding technology, laser welder puts laser beam as the energy source, and make it impact on the weldment joints to realize welding .

Features:

1) Ceramic converging cavity is corrosion resistant and high temperature resistant, and has 8-10 years service life. The life of xenon lamp is more than 8 million times.
2) Using the most advanced light shielding system to eliminate the irritation to eyes by light during working.
3) The laser head and optics part can be rotated for 360°,upward/downward lifting and forward/backward pushing, suitable for repairing of large, medium and small moulds.
4) The parameters are controlled by intelligent remote controller, which is simple and convenient.
5) The work bench can be lifted, and moved in three dimensions.
6) The size of light spot can be adjusted.

Application:

laser welder was originally designed for mould industry which apply in molding and repairing of plastic molds, die-casting molds, extrusion molds, glass molds, plastic blow molds, rubber molds, molds of digital products/mobile phone/toy/automobile/motorcycle, also can be used in metal sheet stitching welding, pipe/ tube conjunction welding, and manufacturing of sensor, level switch and fine auto parts, etc.

Specifications:

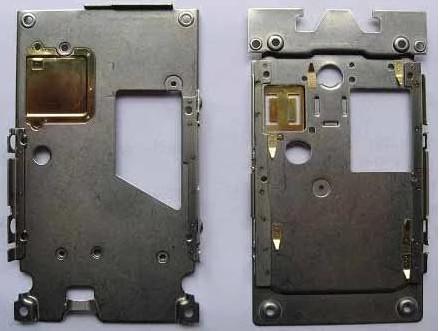

Samples:
