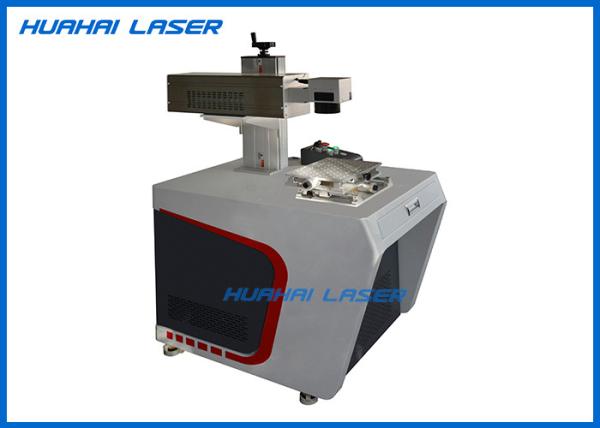

High Precision UV Laser Marking Machine Reliable With CE / FDA Certification
High Precision UV Laser Marking Machine Reliable With CE / FDA Certification
Specifications
Brand Name :
Huahai Laser
Model Number :
HB-HM02P/HM03P/HM05P/HM07P/HM10P
Certification :
CE FDA ROHS
Place of Origin :
China Hubei
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, D/P
Supply Ability :
100 sets per month
Delivery Time :
10-12 workdays
Packaging Details :
Wooden cases
Material : :
All plastic All metal
Warranty : :
One year
Service life: :
30,000hours
Power : :
2W /3W /5W /7W /10W
Description

UV Laser Marking Machine for metal and plastic with CE and FDA For Precision Marking

Advantages :

Focused UV light spot size is small , heat affected area during processing is mimimum,So it is used inultra fine and special material’s marking.

Since UV laser did not produce any thermal effects and burning issues, the result of the marking is precise , smooth and steep.

Features :

1. Nice laser beam quality, smaller focused spot size, ultra-fine marking, and the minimum character can up to 0.2mm.

2. 355nm outgoing wavelength makes it small heat-affected area without thermal effects and burning problem.

3. Motorized up down table, auto focusing, and rotating functions are optional.

4. High speed and high precision.

5. Stable working performance without consumable material, small size and easy operation.

Machine advantages :

1. UV laser ,cold marking , laser beam more gentle , mark more delicate and clear ;

2. High-speed galvanometer scanning with excellent performance of servo motors, marking high speed high accuracy;

3. Industrial control computer strong anti-interference, ensure the long-term stability of the industrial environment; Powerful, friendly interface control software, easy to master, improve the work efficiency.

Parameters :

Laser type UV laser type
Working mode Cool processing
Model HB-HM03P/HM05P/HM07P/HM10P
Wavelength 355nm
Power 2W /3W/ 5W /7W/ 10W
Laser output power ≥2W /3W/ 5W /7W/ 10W
Pulse width ≤18ns
frequency of laser 0-100kHz
Standard engraving range 110mm×110mm/175*175 mm
Repeating precision ±0.005mm
Minimal linear Width ≤0.01mm
Marking speed 7000mm/s
Electrical Power 220V
Cooling system Air cooling/Water cooling
UV Laser source China RFH laser /USA Advanced optowave laser source /Singapore
Galvo Top brand made in China
Control card and software Taiwan Markingmate
Lens Imported one

Principle:

Low Power DPSS UV Lasers is featured with compact structure with extremely convenient installation and debugging. They have adopted the built-in laser diode technology to avoid the effect of fiber shaking on output laser. Besides, the beam quality is excellent enough to ensure the stability and reliability for mass production, which can meet the special manufacturing and processing demand in harsh industrial working condition.

Samples:

High Precision UV Laser Marking Machine Reliable With CE / FDA CertificationHigh Precision UV Laser Marking Machine Reliable With CE / FDA Certification
