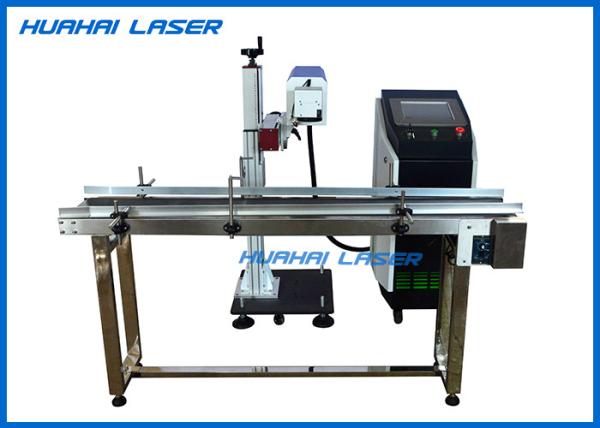

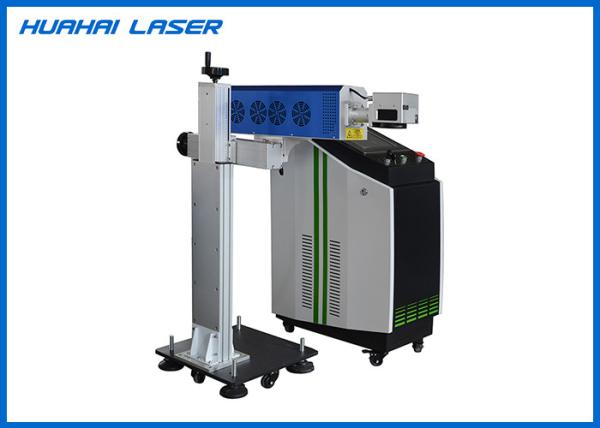

Light Weight CO2 Marking Machine Good Flying Marking Effect Simple Maintenance
Light Weight CO2 Marking Machine Good Flying Marking Effect Simple Maintenance
Light Weight CO2 Marking Machine Good Flying Marking Effect Simple Maintenance
Light Weight CO2 Marking Machine Good Flying Marking Effect Simple Maintenance
Light Weight CO2 Marking Machine Good Flying Marking Effect Simple Maintenance
Light Weight CO2 Marking Machine Good Flying Marking Effect Simple Maintenance
Specifications
Brand Name :
HUAHAI LASER
Model Number :
RF-HB30
Certification :
CE , FDA
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
200sets per month
Delivery Time :
7-10 working days
Packaging Details :
standard export wooden case
Laser source :
COHERENT / Synrad
Laser Power :
30w, 60w
Laser wavelength :
10.64um
Warranty period :
2 years
Voltage :
220V or 110V 50/60kHZ
Cooling Mode :
air cooling
Laser head :
sino-galvo
Working area :
110*110mm
Supported files :
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, JPG, etc
Control system :
Touch screen operation
Control software :
profession flying marking software
Description

Fly marker / cheap co2 on-line flying auto number date coding laser marking machine for food & beverage packaging

The characteristics

1. using modular design, without the control cabinet design concept, mobile safe and fast, easy to use a machine to maximize the production and cost savings;

2. installation fast, easy to operate, maintenance is simple, ordinary technical staff in 1 hours can learn how to install and use.

3. long life: the theory of the light time is 25000-30000 hours.

4. flying marking effect is good, the system is equipped with precision, function of software and hardware control, tracking fast moving workpiece and control the output of laser. In case of rapid movements of the production line, the workpiece does not stop the for marking.

5. non-toxic, no pollution, no supplies, maintenance free.

6. marking high precision, fast speed, beautiful font, the marking is clear, not easy to wear.

Technical Parameter

Laser The sealed type metal RF CO2 laser generator.
Continuous output power ≥10W
Deflection mirror High precision dual dimensional scanning system
control system Software
cooling system Wind cooling
laser power S350-27
min wire width 0.03mm
Repeated positioning accuracy 0.01mm
Marking range 110mm×110mm
Environmental requirements temperature:0~40℃ humidity:0~95%
Mark line type Conventional line or point font
Number of characters Any line in the marking range
Adapt to the production line speed 0~189m/min ( passed the test of 20000 bottles / hour mineral water production line)
Machine size 800mmX750mmX154mm

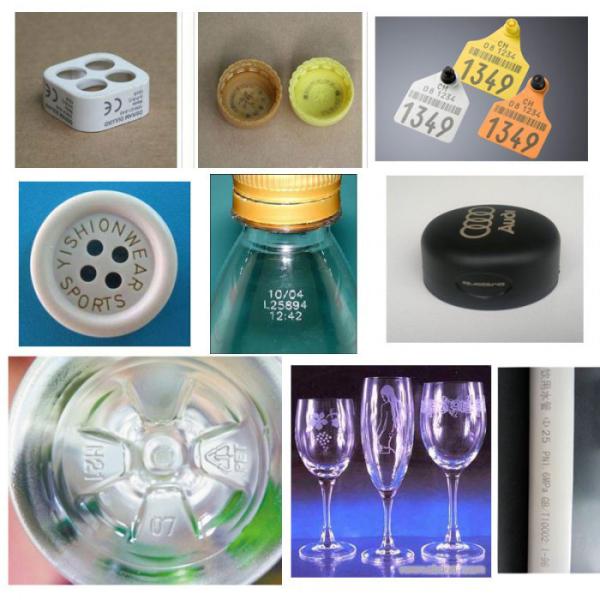

Sample

Light Weight CO2 Marking Machine Good Flying Marking Effect Simple Maintenance
