10W 532nm Green Laser Marking Machine , Glass Inside Crystal Green Laser Engraver
10W 532nm Green Laser Marking Machine , Glass Inside Crystal Green Laser Engraver
10W 532nm Green Laser Marking Machine , Glass Inside Crystal Green Laser Engraver
10W 532nm Green Laser Marking Machine , Glass Inside Crystal Green Laser Engraver
10W 532nm Green Laser Marking Machine , Glass Inside Crystal Green Laser Engraver
10W 532nm Green Laser Marking Machine , Glass Inside Crystal Green Laser Engraver
Specifications
Brand Name :
Huahai Laser
Model Number :
YLP-GL
MOQ :
1
Payment Terms :
T/T, Western Union
Delivery Time :
15 - 20 work days
Packaging Details :
Standard fumigation - free tri-board export wooden cases
Certification :
CE FDA
Place of Origin :
Wuhan,China
Price :
Negotiable
Supply Ability :
200sets/month
Marking material :
Crystal, glass, plastic
Laser Power :
5w / 10w 20w
Marking Depth :
0 ~0.5mm
Laser wavelength :
532nm
Color :
Depend on
Customized accept :
Yes
Description

10W 532nm Green Laser Marking Machine Glass Inside Crystal Laser Engraving Machine

Description of Green Laser Marking Machine

The laser marking machine adopts international advanced laser resonator design and control technology, the laser can obtain excellent beam quality in high power operation, long-term high stability, narrow pulse width laser.
Application: the equipment is suitable for the surface processing of most metal and nonmetal materials and the processing of coating film. Such as metal, ceramics, watch glasses, PC, electronic devices, instruments, PCB board and the control panel, plate panels, plastic etc.; applied to the glass surface and internal engraving crystal products, such as mobile phone screen, LCD screen, optical devices, automotive glass etc.. Specially suitable for high flame retardant material marking, engraving and other surface treatment.

Product feature

Extensive application: suitable for processing materials that have strong reaction to thermal radiation; can be integrated with the production line, suitable for marking most metals and nonmetal material.

Flexible and easy operating system:human-friendly and stable operation process; exclusive control software can be compatible with Auto CAD, Coreldraw, Photoshop,etc; Can automatically layout and adjust text symbols, graph, bar code, two dimensional bar code and serial number; Support PLT, PCX, DXF, BMP, JPG and other file formats, TTF word stock can be used directly.

Operation and maintenance cost is very low: use semiconductor end-pumped laser which has long service life, stable performance, high light conversion ratio and simple operation, needs no maintenance and save energy.

Application and market

Glass, crystal product surface and internal sculpture, such as cell phone screen, LCD screen, optical components, automobile glass, etc. Additionally, it also can be used for process on most metal and nonmetal material’surface and coating film, such as metal, ceramic, glasses clocks and watches, PC, electronic device, instrument, PCB and control panel to the exhibition board, plastic, etc.

Technical parameters

Laser wavelength

532nm

Light beam quality

<2

Power

5W/7W/9W

Repeating frequency

0-100KHZ

Carving range

70*70mm/100*100mm

Carving line speed

≤7000mm/s

Minimum character

0.15mm

Repeating precision

±0.004

Cooling method

Air cooling

Power supply

220V/50HZ/10A

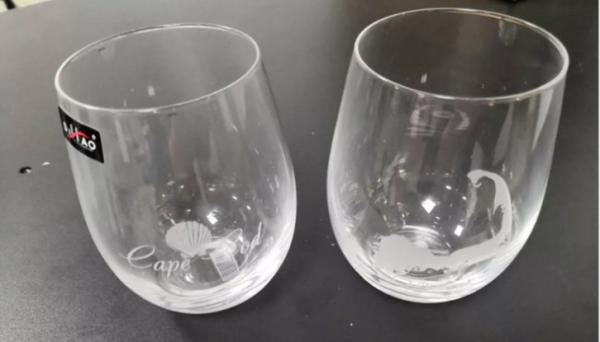

Sample

10W 532nm Green Laser Marking Machine , Glass Inside Crystal Green Laser Engraver10W 532nm Green Laser Marking Machine , Glass Inside Crystal Green Laser Engraver
