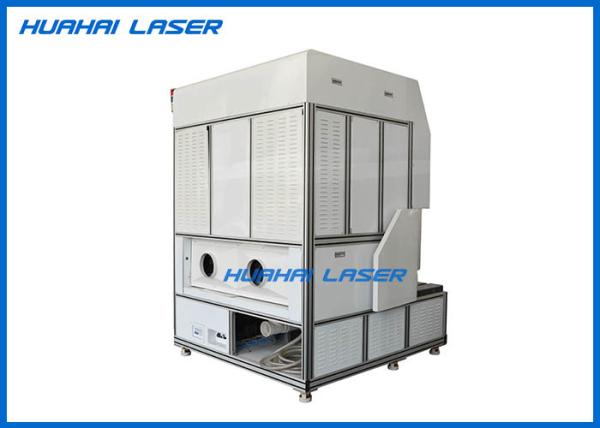

Versatile Dynamic CO2 Laser Marking Machine , Coherent RF Tube Marking Machine
Versatile Dynamic CO2 Laser Marking Machine , Coherent RF Tube Marking Machine
Versatile Dynamic CO2 Laser Marking Machine , Coherent RF Tube Marking Machine
Versatile Dynamic CO2 Laser Marking Machine , Coherent RF Tube Marking Machine
Versatile Dynamic CO2 Laser Marking Machine , Coherent RF Tube Marking Machine
Versatile Dynamic CO2 Laser Marking Machine , Coherent RF Tube Marking Machine
Specifications
Brand Name :
Huahai Laser
Model Number :
RF-HB
MOQ :
1
Payment Terms :
T/T
Delivery Time :
7-10 working days
Packaging Details :
Standard fumigation - free tri-board export wooden cases
Laser Source :
America Coherent
Galvo :
America CTI
Worktable :
Aluminum strip / honeycomb
Software :
Huahai
Cooling Mode :
Water cooling
Graphic Format Support :
AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
Price :
Negotiable
Description

Coherent RF Tube 180W 250W Co2 Dynamic Laser Marking Machine For LGP Dots Marking , Paper Card Laser Cutting Machine

Machine Description

As the high-tech product, Dynamic CO2 Laser Marking Machine adopts the technologies of Laser, Optics, Precision Machinery, Electronic technology, PC software technology and Cooling Project.

The machine adopts the 10.64um CO2 laser source, which can satisfy the application in different industries such as marking, cutting, engraving, color removal, paint processing, material micro-processing and etc. The equipment adopts Aluminum frame structure, and the latest motor driving in the whole worktable platform to ensure the stable qualities. The adjustment of laser optical path is droven by two galvanometer motors(XY), and the third axis is droven by pre-scanning gathered system to make a wildly adjustment for focus distance.

Equipment Performance

Dynamic Co2 laser marking machine adopts the technology of pre-dynamic focusing, to display the thinner laser spot, faster marking speed and better effects. Viable with large scale engraving or cutting. Advantages as follow:

1, Compared with traidtional post-dynamic focusing marking machine, it's no necessary for Dynamic Co2 laser marking machine to replace the different flat-field lenses to get different marking area. Thinner laser spot as well.

2, Fully enclosed laser optical system, no adjustment or maintenance needed, working at once after installation viable.

3, Original imported RF laser tube with high laser power, excellent laser spot, stable laser generation and lifetime of more than 20000h.

4, High precision and speed performance with cutting&engraving working, 20% higher efficiency than similar models.

5, Professional industrial thermostatic circulation of water cooling system ensures more stable running and lower consumption.

6, Strict multiply protection control system can be applied in wild operation temperature, to make sure the stable continuous working of 24h of laser marking system.

7, Application under Windows interface, AutoCAD, CorelDraw, Photoshop compatible, PLT, DXF, BMP ect supportive.

8, Especially applies RBI marking with light guild plate or acrylic, and cutting&engraving with leathers and footwears.

Parameters

Model RF-HB180 RF-HB250
Max.Marking Area

800x800mm

(800x600mm for Paper Cut)

 1500x1500
Laser power ≥180w ≥250w
Marking Speed ≤7000mm/s ≤10000mm/s
Power Consumption ≤ 5 kWh ≤ 7kWh
Worktable Marble Worktable/Aluminum Honeycomb Worktable
Laser Source Rofin/Coherent CO2 metal RF Laser Tube
Laser Wavelength 10.64μm
Laser Frequency 20kHz~200kHz
Scanner CTI America
Repetition Precision 0.01mm
Min.Letter Size 0.3mm
System Support WIN 7/WIN 8
Output Compatibility Auto CAD, Photoshop, CorelDRAW etc
File Formats PLT, DXP, BMP, JPG, AI etc
Software Character Integrated Function of Dotting Design, Vector Drawing, Marking, Scribing and Cutting
Power Supply 110V~380V/50Hz~60Hz
Cooling Way Circulation of Water Cooling

Samples

Versatile Dynamic CO2 Laser Marking Machine , Coherent RF Tube Marking Machine

Versatile Dynamic CO2 Laser Marking Machine , Coherent RF Tube Marking MachineVersatile Dynamic CO2 Laser Marking Machine , Coherent RF Tube Marking Machine
