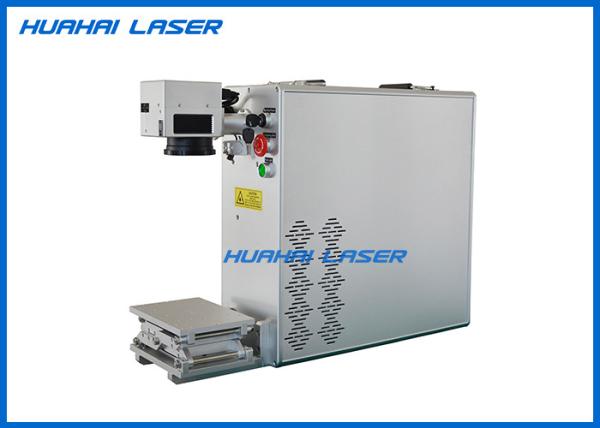

20W Fiber Laser Marking Machine , Stainless Steel Laser Engraving Machine
20W Fiber Laser Marking Machine , Stainless Steel Laser Engraving Machine
20W Fiber Laser Marking Machine , Stainless Steel Laser Engraving Machine
20W Fiber Laser Marking Machine , Stainless Steel Laser Engraving Machine
20W Fiber Laser Marking Machine , Stainless Steel Laser Engraving Machine
20W Fiber Laser Marking Machine , Stainless Steel Laser Engraving Machine
Specifications
Brand Name :
Huahai Laser
Model Number :
YLP-HB
Certification :
CE FDA ROHS ISO
Place of Origin :
CHINA MAINLAND
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C, D/P
Supply Ability :
100 sets per month
Delivery Time :
5-10 workdays
Packaging Details :
wooden box
Applied material :
Metal Plastic
Warranty :
Total three years for laser source ,One year for whole machine
After-sales service :
All life long
Watt :
20W/30W /50W /60W
laser type :
Fiber type
Marking area :
110-300mm
Description

Portable metal laser engraving machine 20w fiber laser marking machine stainless steel laser engraving machine

Feature:

1. Widely used for marking metal and nonmetal materials

2. High speed (7000mm/s), high precision (0.001mm)

3. Air cooling, no requirement to temperature

4. Double red dot focus system, easy to operate

5. Long lifetime (100000 working hours), no consumable

Parameter:

Model YLP-HB20
Laser power 10W 20W 30W 50W
Supports graphical format PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF
Beam quality m2 <2
Power stability (8h) <± 1% rms
Pulse repetition frequency 20KHZ ---- 100KHZ
Power consumed <800W
Minimum line width 50μm
Minimum character 0.3mm
Laser Wavelength 1064nm
Galvanometer Size 110 * 110mm (optional)
Whole machine power 500w
Cooling way Air cooling
Operating voltage 110/220V ± 10% /,50/60HZ
Ambient operating temperature 15 ° C - 35 ° C
Weight 80KG
Dimensions 600H * 200W * 700L (mm)
Packing plywood wooden packaging

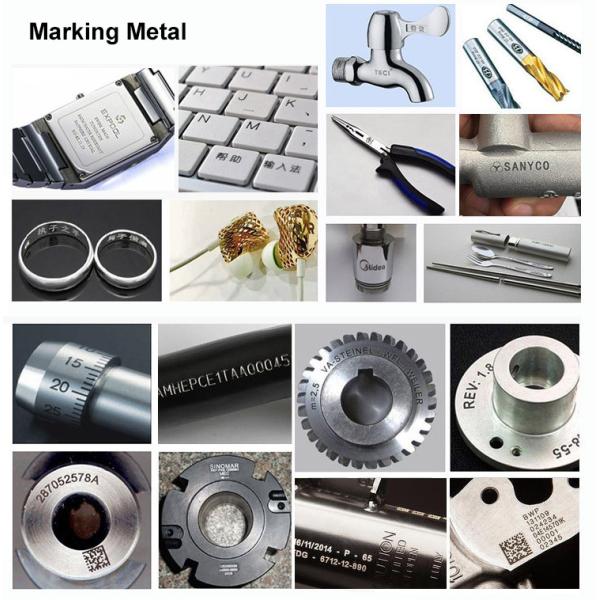

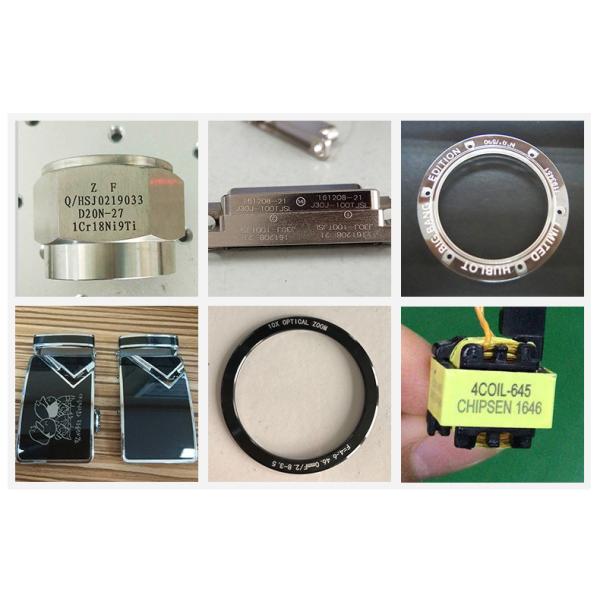

Applicable Industries:

1. It is mainly applied to the higher marking precision such as mobile phones buttons, plastic translucent keys,

2. electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware,

3. tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils,

4. stainless steel products, etc.

5. Electrical Engineering and Electrical part and component

6. Mobile (Cover,battery,keyboard, I Phone Case)

7. Jewellery(Ring,pedeant,bracelet),eyeglass,clocks and craft

8. Building materials,PVC pipe

9. Car motor car spare part ,Insturment and meters and cutting tool

plastic case,aviation and aerospace,

10. military product,hardware fitting and accessory,sanitary appliance

11. food and beverage ,Medicine package and medical instrument,solar Pv industry
