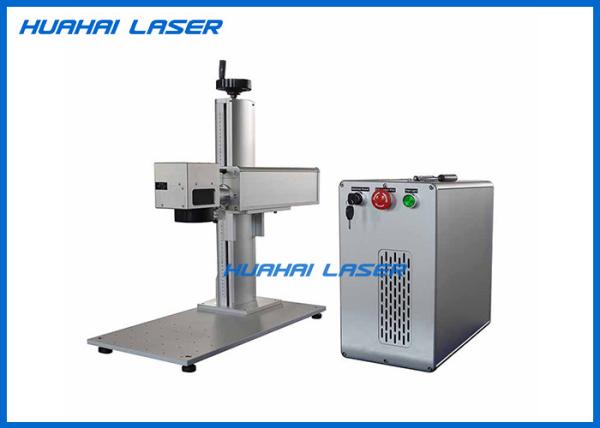

Fiber Type Color Laser Marking Machine Air Cooling High Temperature Resistance
Fiber Type Color Laser Marking Machine Air Cooling High Temperature Resistance
Specifications
Brand Name :
Huahai Laser
Model Number :
YLP-HB
Certification :
CE FDA ROHS ISO
Place of Origin :
CHINA MAINLAND
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C, D/P
Supply Ability :
100 sets per month
Delivery Time :
5-10 workdays
Packaging Details :
wooden box
Applied material :
Metal Plastic
Warranty :
Total three years for laser source ,One year for whole machine
After-sales service :
All life long
Watt :
20W/30W /50W /60W
laser type :
Fiber type
Marking area :
110-300mm
Description

Fiber Laser Marking Machine With China ,Germany Laser Source 20W 30W 50W 60W Metal Marking Using

Machine characters :

1) Portable type ,easy to move

2) Long time service life ,main component laser source can acheive 100,000hours.

3) The most popular machine type

4) Fiber laser type ,can meet the most marking requirement

5) Optional marking area ,110mm ,175mm ,200mm,300mm

Advantages :


1) Easy Operate without route maintenance
2) Higher precision, faster speed
3) Air cooling: Small size, low power consumption
4) Red light preview: show the marking position before marking

Component :

1. Fiber laser: The best Chinese fiber laser source Raycus brand, IPG/JPT/CAS laser brand also can be offered; NO maintenance laser source; fiber laser working time is 100,000 hours.
2. High speed galvo scanner: China domestic famous brand SINO GALVO scanner, stable and fast speed.
3. Up and Down Lifter laser head(desktop) and up and down worktable (optional easy to marking engraving different work piece
4. Rotary attachment: Diameter 80mm or rotary axis for ring for optional
5. High temperature resistance: perfect for marking medical equipment etc that requires sterilization
6. The durability & Finer Marking quality: optimizes it for use in jewelry, mobile phones, and other items of value.
7. Laptop Computer included with Free Powerful software
8. User friendly interface, easy operation set and deal different layers graphic in separate. Support PLT,PCX, AL, DXF, BMP,JPG formats file compatible AutoCAD, CorelDraw, Photoshop etc software Automatic serialization, date coding letter, symbol, pattern, figure, image, bar code, 2D code auto arrangement and amendment.

Parameters :

Type YLP-HB
Power 20W/30W/50W/60W
Laser Brand China Raycus/Germanay IPG/China JPT
Marking Area 110mm*110mm
Optional Marking Area 200mm*200mm/150mm*150mm/75mm*75mm/175*175mm
Marking Depth ≤1.5mm
Marking Speed 7000mm/s
Minimum Line Width 0.012mm
Minimum Character 0.15mm
Repeated Precision ±0.003mm
Life-span of Fiber Laser Module 100,000hours
Beam Quality M2 <1.5
Focus Spot Diameter <0.01mm
Output Power of Laser 10%~100% continuously to be adjusted
System Operation Environment Windows XP / W7--32/64bits / W8--32/64bits
Cooling Mode Air cooling
Temperature of Operation Environment 15℃~35℃
Power Input 220V / 50HZ / single phase or 110V / 60HZ / single phase
Power Requirement <400W
Communication Interface USB
Package Dimension 930*510*880mm
Gross weight 70KG
Optional (Not free of charge) Rotary Device, Moving Table, other customized Automation

Sample :

Fiber Type Color Laser Marking Machine Air Cooling High Temperature Resistance

Fiber Type Color Laser Marking Machine Air Cooling High Temperature Resistance
