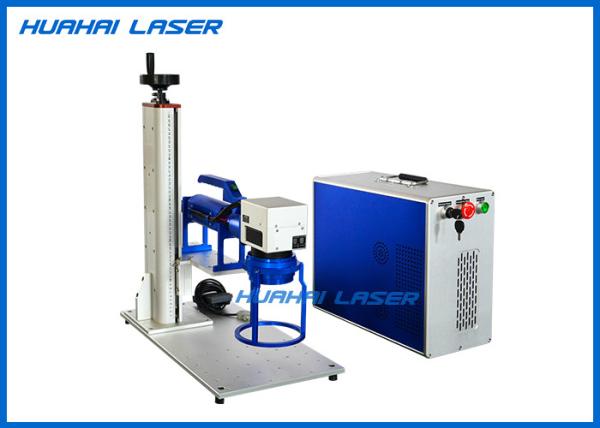

JPT Split Handheld Laser Marker , Stainless Steel Laser Marking Machine
JPT Split Handheld Laser Marker , Stainless Steel Laser Marking Machine
JPT Split Handheld Laser Marker , Stainless Steel Laser Marking Machine
JPT Split Handheld Laser Marker , Stainless Steel Laser Marking Machine
JPT Split Handheld Laser Marker , Stainless Steel Laser Marking Machine
JPT Split Handheld Laser Marker , Stainless Steel Laser Marking Machine
Specifications
Brand Name :
Huahai Laser
Model Number :
YLP-HB
MOQ :
1
Payment Terms :
T/T, Western Union, L/C
Delivery Time :
5-7 days
Packaging Details :
Standard fumigation - free tri-board export wooden cases
Laser source :
JPT MOPA
Laser frequency :
1-1000khz
Laser wavelength :
1064nm
Marking speed :
1-7000mm/s
Warranty :
2 years
Lifespan of laser source :
More than 100,000 hours
Price :
Negotiable
Description

JPT Split Handheld 20W 30W 60W 100W MOPA Stainless Steel Color Laser Marking Engraving Machine

Product Application

Mobile Phone keypad,plastic translucent keys,electronics components,integrated circuits (IC),electrical
appliances,communications products,sanitary ware,tools,accessories,knives,eyeglasses and clocks,jewelry,
auto parts,luggage buckle,cooking itensiles,stainless steel products and other industries.

Electronic Components : Resistance, capacitance, chips, printed circuit boards, computer keyboard.

Apparatus And Meter: Panel signs, precision equipment ,etc.,

Instrument: Panel signs nameplates, precision equipment ,etc.,

Hardware Tools : Knives, tools, measuring tool, cutting tool, etc.,

Automobile Parts : Pistons, piston rings, gears, shafts, bearings, clutch, lights, etc.,

Mechanical Parts : Bearings, gears, standard parts, motors, etc.,

Daily Necessities : Handicrafts, zipper, key holder, sanitary ware, etc.,

Jewelry: Rings Jewelry, gold, silver,etc.

Food, drinking packing: Plastic packings,etc.

Applicable Materials of fiber laser marking machine

Metal(including rare metals),engineering plastics,electroplating materials,coating material,plastic,rubber,
epoxy resin,ceramic,plastic,ABS,PVC,PES,steel,copper and other materials

Main Features of Huahai Laser Marking Machine

1. High-tech,and it can make on both metal and non-metal.
2. Self-clean system
3. Lifetime over 100000hours.
4. Accuracy and speed is very well.

5. This Fiber laser marking machine price is economic and reasonable.

Service

1. Twoyears quality guaranty, the machine with main parts(excluding the consumables)

shall be changed free of charge when if any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. 24 hours on line service each day, free technical support.
5. Machine has been adjusted before delivery

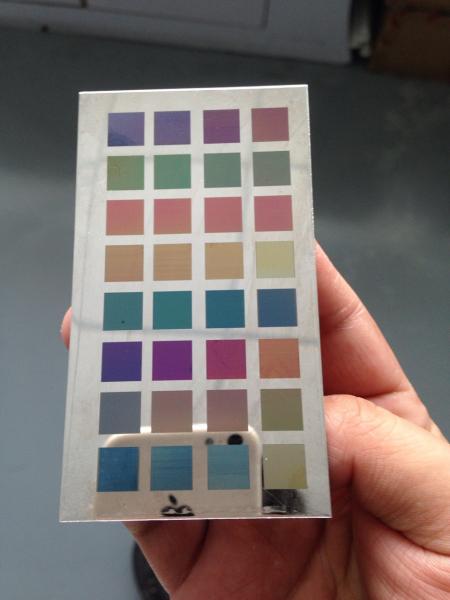

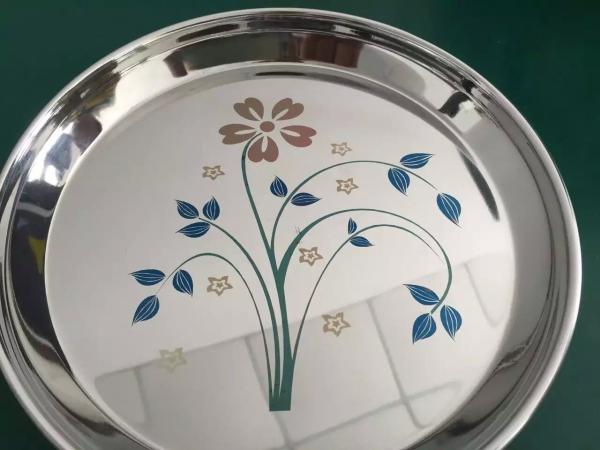

Samples by MOPA Fiber Laser

JPT Split Handheld Laser Marker , Stainless Steel Laser Marking MachineJPT Split Handheld Laser Marker , Stainless Steel Laser Marking Machine

Technical Parameters

Model

YLP-HB Series

Laser power

20W / 30W / 60W

Supports graphical format

PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF

Beam quality

m2 <2

Power stability

(8h) <± 1% rms

Pulse repetition frequency

1KHZ ---- 1000KHZ

Power consumed

<800W

Minimum line width

50μm

Minimum character

0.3mm

Laser Wavelength

1064nm

Galvanometer Size

110 * 110mm (standard)

Whole machine power

500w

Cooling way

Air cooling

Operating voltage

110/220V ± 10% /,50/60HZ

Ambient operating temperature

15 ° C - 35 ° C

Weight

80KG

Dimensions

600H * 200W * 700L (mm)

Packing

plywood wooden packaging

Marking software

EZcad

Power supply

Taiwan meanwell

Optional part

XY table , Rotary device etc.

Optional working area

150*150mm , 175*175mm , 300*300mm
