Energy Saving Industrial Laser Marking Machine Compact Long Service Life Time
Energy Saving Industrial Laser Marking Machine Compact Long Service Life Time
Specifications
Brand Name :
Huahai Laser
Model Number :
YLP-HB20W/30W/50W/60W
Certification :
CE FDA ROHS
Place of Origin :
China Wuhan
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/P, Western Union
Supply Ability :
100 set per month
Delivery Time :
5-10 workdays
Packaging Details :
wooden cases for sea air express
Applied material :
metal ,nonmetal
Power :
20W/30W/50W/60W /100W/120W
Feild :
laser marking/engraving/marking metal and plastic
Cooling mode :
Air Cooling
Name :
Fiber Laser Marking Machine
Feature :
Energy Saving
Description

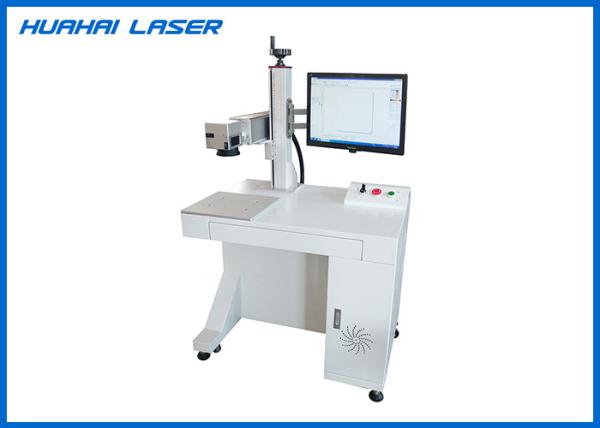

60W 50W 30W 20W Fiber Laser Marking Machine For Metal Marking,Engraving ,Printing

Huahai YLP-HB desktop Series fiber laser marking machine is your first solution to mark and engrave on all types of metals with over the top precision and quality results. Besides on metal ,the performance on plastic is nice too !

Wide application ,long service life and no manintance are the top of its advantages .

  • Personal items (Handphone, laptop, etc)
  • General appliances
  • Electronical parts
  • Marking of serial number
  • Marking of QR and Dot Matrix
  • And many more!

Application :

Metal: stainless steel ,carbon steel ,copper ,gold, silver, copper, alloy, aluminum, steel, iron, etc.
Non-metal: PPC ,PET ,PC ,ABS, Nylon, PES, PVC, Makrolon, Rubber,etc.

Auto Parts car body, frame, chassis, girders, piston rings, shafts, bushes, clutches, lights, engines, connecting rods, cylinders, pistons, cylinder liners, gears, pumps, spring steel plates, etc.
Electronic Components resistors, capacitors, chips, printed circuit boards, keyboards, etc
Mechanical Parts machine tools, hardware, steel pipes, casings, couplings, cones, pumps, body valves, flanges, fasten -ers; bearings, gears, standard parts, motor, etc
Instrumentation panels, signs, precision instruments, etc
Hardware Tools measuring tools, locks, cutting tools, etc
Daily Necessities crafts, zippers, key chains, jewelry rings, sanitary ware, etc

Products Advantages:

Long service life: Main spare such as laser source's service life is 100,000hours .

Compact: The high-tech product, which is combined of laser device, computer, auto controller ,conveyor ,rotator ,X-Y-Z slidding table .

High Precision: Re-position precision is 0.001mm

High Speed: Imported scanning system makes the scanning speed is up to 7m/s

Easily Operating: Afford the specific coding software based on Windows, You can input and output by computer according to edit in the both of the specific coding software and the graphic software such as AutoCAD, CorelDraw and Photoshop.

Energy Saving: The efficiency of optic-electrical converting is up to 30%

Low Running Cost: No wearing part. Free maintaining.No consumable .

Parameters :

Fiber laser marking machine
Laser Type Fiber laser
Laser Power 20W 30W 50W 60W 100W 120W
Model YLP-HB
Laser Wavelength 1064nm
Marking Area

75*75mm 110*110mm 150mm*150mm

175mm*175mm 200*200mm 300*300mm
Marking Depth ≤1.2mm
Marking Speed 7000mm/s
Minimum Line Width 0.012mm
Minimum Character 0.15mm
Repeated Precision ±0.003mm
Life-span of Fiber Laser Module 100 000hours
Beam Quality M2 <1.5
Focus Spot Diameter <0.01mm
Output Power of Laser 10%~100% continuously to be adjusted
System Operation Environment Windows XP / W7--32/64bits / W8--32/64bits
Cooling Mode Air cooling--Built-in
Temperature of Operation Environment 15℃~35℃
Power Input 220V / 110V 50HZ/60HZ single phase
Power Requirement <400W
Communication Interface USB
Machine Dimension/after package 1020*710*1100mm
Net Weight/gross weight 135kg
Optional Rotary Device, Moving Table, other customized Automation

Samples

Energy Saving Industrial Laser Marking Machine Compact Long Service Life Time

Delivery :3-10workdays

Package :wooden cases for air ,sea ,express transportation
