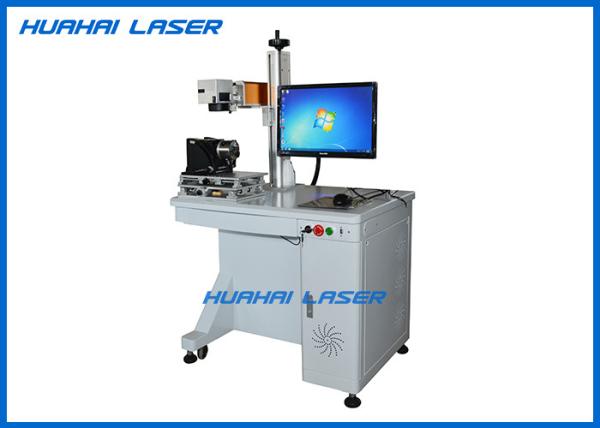

Floor Standing Fiber Laser Marking Machine 30 Watt For Plastic Security Seals / Power Bank
Floor Standing Fiber Laser Marking Machine 30 Watt For Plastic Security Seals / Power Bank
Specifications
Brand Name :
Huahai Laser
Model Number :
YLP-HB04
Certification :
CE, FDA
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
150 set per month
Packaging Details :
Durable export wooden box
Applicable material :
All metal and some plastic
Machine Type :
Floor-standing
Laser source :
China Raycus
Function :
Laser Marking, engraving
laser head :
JCZ G07
Focus lens :
Singapore wavelength
Description

30W Fiber Laser Marking Machine For Plastic Security Seals, Power Bank

Application:

Fiber laser marking machine can apply for a wide range of industries,

1. Automobile Parts: Pistons, Piston Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.

2. Electronic Components: Resistance, Capacitance, Chips, Printed Circuit Boards, Computer Keyboard, etc.,

3. Mechanical Parts : Bearings, Gears, Standard Parts, Motors, etc.,

4. Instrument : Panel Signs, Nameplates, Precision Equipment, etc.,

5. Hardware Tools: Knives, Tools, Measuring Tool, Cutting Tool, etc.

6. Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.

Main Features:

1. Excellent light quality:
Comparing with traditional solid laser marking machine, angle of divergence is only 1/4 of diode pump laser device. It is especially suitable for precision marking.
2. Low usage cost:
Photo electric conversion efficiency max is 30%, whole machine power consumption is less than 500W, it is the 1/10 of laser pump lamp marking machine. It greatly saves the cost in power consumption.

No consumable ink cost burden and eliminating the troubles of cleaning the inkjet printer nozzle everyday.
3. Free maintenance & long service life:
Using laser diode as the source of pump, full sealing light path design, its average no-failure operation is over 100000 hours.
4. Fast process speed:
Its processing speed is 5-10 times faster than traditional laser marking machine.

Laser Parameters:

Item 30W fiber laser marking machine YLP-HB04
Laser Wavelength 1064nm
Frequency 20-60Khz
Beam Quality M2:1.5
Laser Power For Option 20W/30W/50w/100w
Marking Speed <7000MM/S
Marking Depth ≤0.5MM
Positioning Precision ±0.001MM
Min. Line Width 0.01MM
Cooling Mode Air Cooling
Graphic Formats Supported PLT, DST, AI, DXF, BMP, JPG, CAD, CDR, DWG
Power Supply AC 110/220V±10%, 50/60Hz
Working Temperature 10-35 ℃
Working Humidity <75%( No condensation)
Working Environment Clean, free of dust
Overall Power Consumption < 800W
Laser Generator Safety Class Ⅳ
Sample Show:
Floor Standing Fiber Laser Marking Machine 30 Watt For Plastic Security Seals / Power BankFloor Standing Fiber Laser Marking Machine 30 Watt For Plastic Security Seals / Power Bank
