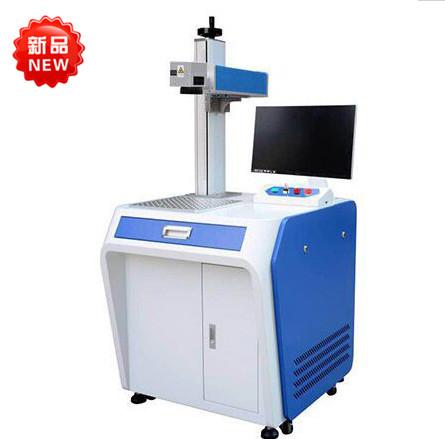

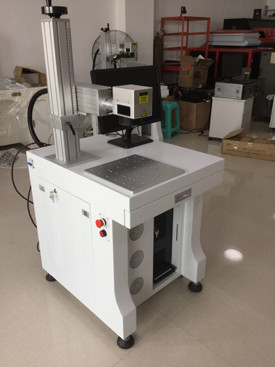

Table type fiber laser marking machine for metal/plastic engraving 20w 30w 50w
Table type fiber laser marking machine for metal/plastic engraving 20w 30w 50w
Table type fiber laser marking machine for metal/plastic engraving 20w 30w 50w
Table type fiber laser marking machine for metal/plastic engraving 20w 30w 50w
Table type fiber laser marking machine for metal/plastic engraving 20w 30w 50w
Table type fiber laser marking machine for metal/plastic engraving 20w 30w 50w
Table type fiber laser marking machine for metal/plastic engraving 20w 30w 50w
Table type fiber laser marking machine for metal/plastic engraving 20w 30w 50w
Specifications
Brand Name :
LS-LASER
Model Number :
LS-FDBA-30
Certification :
CE
Place of Origin :
CHINA
MOQ :
1piece
Price :
Negotiable
Supply Ability :
100pieces/month
Delivery Time :
immediately after payment
Packaging Details :
wooden box
Laser Type :
Fiber Laser
Laser Wavelength :
1064 nm
Marking Area :
100*100mm/300*300mm
CNC or not :
yes
laser power :
20w
apply to :
metal and nonmetal material
cooling system :
air cooling
Application: :
laser marking
control system :
china pc
color :
customized
laser beam :
red
Description

CE iso9000 certificate Fiber Laser Marking Machines For metal and nonmetal

Applicate material :

Metals and alloys (iron, copper, aluminum, magnesium, zinc and all other metals),plastics,rare metals and alloys (gold, silver,titanium), metal oxides (metal oxide may be), special surface

treatment(Phosphatize, aluminum anodizing, electroplating the surface), ABS material (electrical appliances shell, daily necessities), ink (translucent keys, print products), epoxy resin

(electronic components, packaging, insulation layer).etc.

Specifications:

Laser Sourse
IPG Series Pulsed, High Energy Ytterbium Fiber Lasers
Mode of operation Pulsed
Polarization random
Q-switched operation
Output power adjustment range 10%-100%
Nominal average output power W 10W / 20W / 30W / 50W
Central emission wavelength 1060-1070 nm
Emission Bandwidth (FWHM) <10 nm
Long-term average power instability <5%
Pulse width, (FWHM) 100 ns
Laser switching ON time 180 μsec
Laser switching OFF time 180 μsec
Pulse Repetition Rate* kHz 20-80 kHz
Energy per pulse (PRR = 20 kHz) 0.95 mJ
Typical beam quality, M2 <1.8
Output fiber delivery length 3m
Operating voltage 220V
Max. Power consumption 600W

What kind of materials can a GY laser cut / engrave?

Acrylic Cork Leather Paper Styrene
Anodized Aluminum Crystal coated metal Marble Plastic Tile
Anodized metal Fabric Matte board Polyester Veneer
Bamboo Fiberglass Melamine Polyester film Vinyl
Carbide Foam Mylar Pressboard Wood
Cardboard Glass Nylon Rubber
Ceramics Kevlar Painted metals Silicon
Composites Laminated plastic Painted materials Stone

Features

1 Imported fiber laser system

2 Excellent optical mode, long operating life, up to 100,000HS

3 The highest electro-optical conversion efficiency, up to 80%, but gross power less than 600W

4 Small size, steady, without maintenance, easy to operate

5 High precision, suited for fine processing on all metal and some non-metal.

Table type fiber laser marking machine for metal/plastic engraving 20w 30w 50wTable type fiber laser marking machine for metal/plastic engraving 20w 30w 50wTable type fiber laser marking machine for metal/plastic engraving 20w 30w 50wTable type fiber laser marking machine for metal/plastic engraving 20w 30w 50wTable type fiber laser marking machine for metal/plastic engraving 20w 30w 50w

Standard accessories:

A semic conductor module

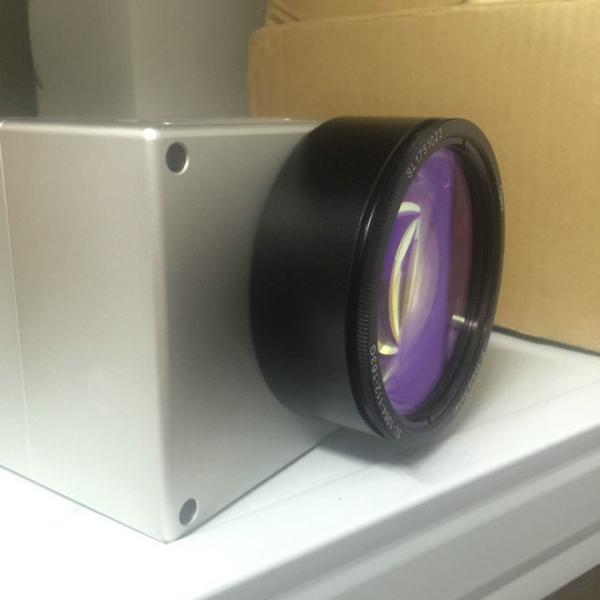

A set of high-speed vibrating mirrors

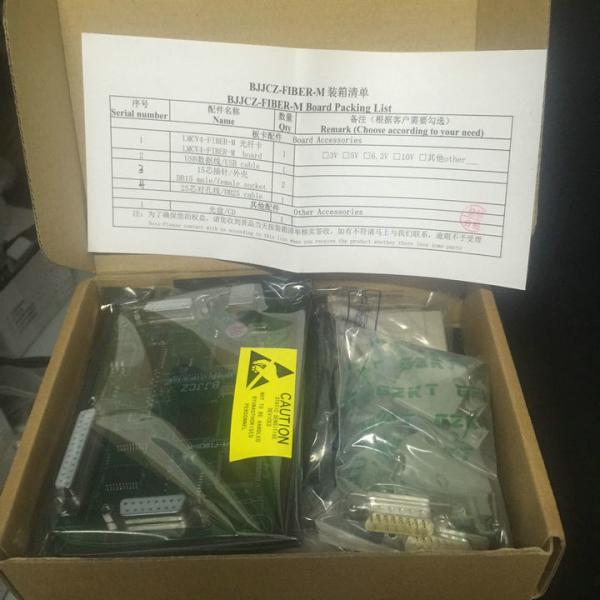

A set of marking control system
An industrial computer
A marking work table
A red laser pointer
A pedal switch
A set of marking software
A user manual

Quality Guarantee

The guarantee period of quality shall be 12 months counting from the date on which the commodity arrives at the port of destination.

Payment term T/T in advance

Production time 7-15 working days

Warranty: 1 year
