HD-SDI Fiber Extender(1 channel for CCTV Surveillance)
HD-SDI Fiber Extender(1 channel for CCTV Surveillance)
HD-SDI Fiber Extender(1 channel for CCTV Surveillance)
HD-SDI Fiber Extender(1 channel for CCTV Surveillance)
Specifications
Place of Origin :
China
Brand Name :
Fiber Linker
Model Number :
FL-CCTV311-T/R
MOQ :
1pair
Packaging Details :
Carton
Delivery Time :
5day
Payment Terms :
TT, Westen Union, Paypal
Supply Ability :
1000pcs
Description

Overview

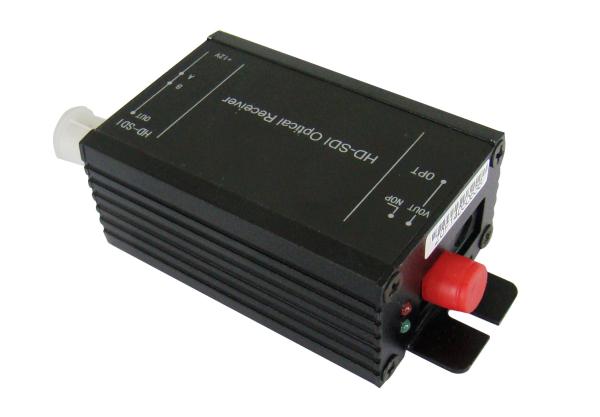

The FL-CCTV311-T/R is a HD-SDI video optical transceiver, or named SDI fiber extender, including a transmitter named FL-CCTV311-T and a receiver named FL-CCTV311-R, which achieves optical transmission of one HD-SDI signal and provides one reverse RS485 data channel, and can be widely used in high-definition video conference, high-definition video monitoring, intelligent transportation system and public security system. It is very cost-effective for CCTV surveillance, video surveillance projects.
Feature
Adopts high-definition transmission without compression technology to realize real-time, loss-free and high-quality video transmission
Comply with SMPTE-292M HD-SDI and SMPTE-259M SD-SDI standard, supports 1.485Gb/s and 270Mb/s
1080P@30,25,24,1080I@60,50 and 720P@60,50,30,25,24
With integrated HD-SDI reclocker and cable equalizer
With NOP (No optical signal) alarm indications, output status indicator and input lock indicator
One reversed RS485 channel, half duplex, up to 115.2Kb/s baud rate
12V DC power supply
Equipment size: 93.2mm × 46.2mm × 29.6mm
Specification

Item

Description

TX optical interface

Wavelength(nm)

Tx1310FP
/Rx1550

Tx1310FP/Rx1550

Tx1550DFB/Rx1310

Tx1550DFB/Rx1310

Tx1550DFB/Rx1310

Transmission distance (Km)

10

20

40

60

80

launched power (dBm)

-9~-3

-6~-1

-7~-2

-5~0

-2~+3

Connector

FC

FC

FC

FC

FC

Maximum receive sensitivity (dBm)

-32

-32

-33

-36

-37

RX optical interface

Wavelength(nm)

Tx1550FP
/Rx1310

Tx1550FP
/Rx1310

Tx1310FP
/Rx1550

Tx1310FP
/Rx1550

Tx1310FP
/Rx1550

Transmission distance (Km)

10

20

40

60

80

launched power (dBm)

-14~-7

-14~-7

-8~-3

-5~0

0~+5

Connector

FC

FC

FC

FC

FC

Maximum receive sensitivity (dBm)

-21

-21

-24

-24

-26

SDI Interface

Connector

BNC

Bit rate

1.485Gb/s and 270Mb/s auto adaptive

Impedance

75Ω

Return loss

>15dB

level

800mVp-p±10%

Rise and fall time(HD-SDI)

≤270ps

Rise and fall time(SD-SDI)

≤1.50ns

SD-SDI Alignment jitter (1KHz)

≤0.2UI

SD-SDI Timing jitter (10Hz)

≤0.2UI

HD-SDI Alignment jitter (100KHz)

≤0.2UI

Standard

Compliant toSMPTE-292M HD-SDI and SMPTE-259M SD-SDI standard

RS485 Interface

Connector

PHOENIX connector

Baud rate

0~115.2Kb/s

Bit error ratio

<10-9

Work mode

Half-duplex

Power and Consumption

Power supply

DC 12V

range

8V~14V

Power consumption

1.5W±10%

Environment Requirements

Working temperature

-30～+60℃

Relative Humidity

≤95％, no condensation

Storage temperature

-40～85℃

Equipment dimension

Equipment dimension

93.2mm×46.2mm×29.6mm

Keywords: HD-SDI optical transceiver, HD-SDI optical transmitter, HD SDI fiber extender, HD SDI to fiber converter
