uncompressed 4-ch DVI extender over fiber optic with loopout in transmitter and receiver
uncompressed 4-ch DVI extender over fiber optic with loopout in transmitter and receiver
uncompressed 4-ch DVI extender over fiber optic with loopout in transmitter and receiver
uncompressed 4-ch DVI extender over fiber optic with loopout in transmitter and receiver
Specifications
Brand Name :
Fiberlinker
Model Number :
FL3201-4L
Certification :
CE FCC
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 sets
Delivery Time :
5 days
Packaging Details :
Carton
Description

Introduction

FL3201-4L is DVI fiber extender device of high-definition video transmission using fiber optic, just need a single fiber will be able to transmit 4 channels of 1920X1200@60Hz DVI signal with optional audio, data, it supports EDID by manual operation. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.

Feature:

4-ch DVI-D video,4-ch loopout in tx and rx, 4-ch stereo audio , optional 4-ch duplex RS232 , 4-ch USB for keyboard and mouse over single fiber

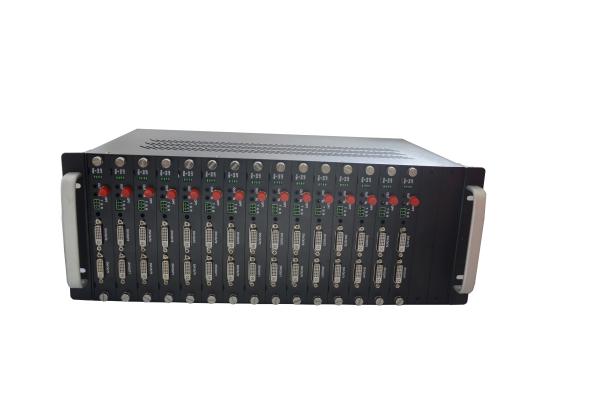

Support 4U rack with 13 cards

10-bit digital video encoding and compressed transmission technology

Long-distance transmission of industrial monitoring and large venues, etc.

Plug and play at any time, basically no need to be adjusted and could be up to image output of high-quality

Power and indicators of other parameter could monitor system status

Synchronous optic

Automatic identification of input video format, receiver output meets industry-standard video

Use DC-DC power conversion technology, effectively resist the power environmental interference

Application

Remote OB Van/Truck Video Feeds

Broadcast Studio Camera Feeds

Long-haul Signal Transport

TV station/video conference

Lecture Hall Projector Connectivity

Medical/Surgical Room Broadcast

Small corporate campus video links

Building to Building video conference calling

Technical:

Video
type DVI-D
input resolution MAX 1920X1080@60Hz
Input/output TDMS 5Gpbs
Input/output TDMS power level 1.2volts p-p
Input DDC level 5volts p-p (TTL)
Audio 4-ch bidirectional stereo audio
Data(optional) 4-ch dulpex RS232
Keyboard and Mouse( optional) PS2 connector, it also could use a PS2 to USB cable to connect USB host and K&B without any delay
Power Supply
Power Consumption 5W(max.)
Power Voltage 12VDC
Optic
Optic Fiber Complied with 1000BASE_LX of IEEE802.3z
Wavelength 1310/1550nm
Output Optical Power －9.5～－3dBm,
Receiver sensitivity －23dBm
Output Modulation Amplitude 180μW
Input Modulation Amplitude ≤15μW
Relative Speed -116 DB/Hz
Return Loss ≤10 dB
Rate of transmission 5G Hz
Distance 20KM, Max optional upto 80KM
Environment
Working Temperature -45℃~+70℃
Storage Temperature -65℃~+80℃
Relative Humidity 0~95%(non condensing)
Dimension
Size 1U standard

Keywords: DVI fiber extender , DVI to fiber converter, DVI optical transceiver, DVI fiber optic transmitter
