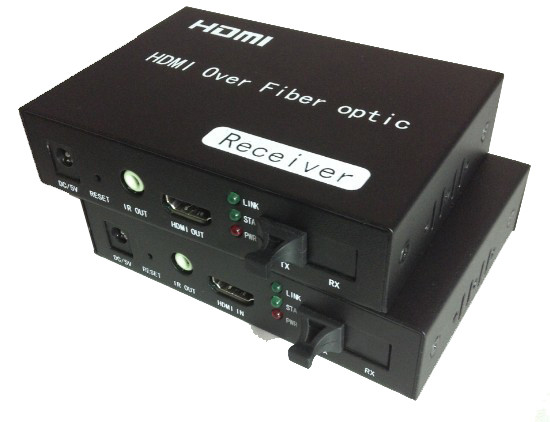

4K resolution HDMI Extender with bidirectional IR over single core fiber optic fiber
4K resolution HDMI Extender with bidirectional IR over single core fiber optic fiber
4K resolution HDMI Extender with bidirectional IR over single core fiber optic fiber
4K resolution HDMI Extender with bidirectional IR over single core fiber optic fiber
Specifications
Brand Name :
Fiberlinker
Model Number :
FL3101IR
Certification :
CE FCC
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 sets
Delivery Time :
5 days
Packaging Details :
Carton
Description

1.Overview

Fiber Linker HDMI Extender over fiber optic can extend the HDMI signal to a long distance with single fiber. Support HDTV video resolutions up to 4096X2160@30Hz. The HDMI Fiber Optic Extender also transmits audio and IR It is used widely by the project of video conference, Multimedia, remote teaching, video wall, and other digital video transmission.

2.Features

1-ch 1.4 HDMI and 3D

1-ch bidirectonal IR

Optional USB for keyboard and mouse

10G rate

Support HDCP, EDID(dual fiber).

Support 7.1 PCM setero audio

10-bit digital video encoding and uncompressed transmission technology

0-60KM transmission distance optional

Support DVI transmission

3. Applications

Remote OB Van/Truck Video Feeds

Broadcast Studio Camera Feeds

Long-haul Signal Transport

TV station/video conference

Lecture Hall Projector Connectivity

Medical/Surgical Room Broadcast

Small corporate campus video links

Building to Building video conference calling

4. Ordering Information

HDMI Fiber Optic Extender with USB

FL3101IR: 1-ch HDMI with embedded audio, USB for keyboard and mouse, single fiber, single mode, 2KM standard, stand alone.

Note: dual fiber supports HDCP, EDID, multimode could transmit 300M, single mode could be upto 60KM.

5. Specifications

Compliance DVI 1.0,HDMI v1.4
Maximum Pixel Clock Frequency 340 MHz
Maximum Video Bit Rate 10.2 Gbps
Supported Color Depth 24-bit
Supported Resolutions

1920x1080/60p,3840x2160/30p, 4096x2160/30p,

3840x2160/60p(YCbCr 420),4096*2160/60P(YCbCr 420)
Digital Audio Support 7.1 channel LPCM, 192 kHz, 24-bit audio capability
Connections
HDMI Input / HDMI Output 1x HDMI Female connector
Optical 1x SFP+ port
Cable
Fiber Cable Type / Max. Length 50/125μ OM3-300 Multi-Mode Fiber: ≤ 1,000 ft. (≤ 300 meters)
Extended Function
Support IR/232/485/KM Support Bi-Directional IR(Carrier Frequency 38KHz)
CEC CEC are NOT supported!
DDC Support
EDID Pass-through Support Pass-through
HDCP Pass-through Support Pass-through
Mechanical
Construction High-impact Alufer enclosure
Dimensions (L x W x H) 89mm x 104 mm x 28.3 mm
Net Weight 400 g
Environmental
Operating Temperature 32° to +122° F. (0° to +50° C)
Storage Temperature -40° to +185° F. (-40° to +85° C)
Operating Humidity 5% to 80% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)
Power Requirements
External AC Power Adapter Input: 100-240VAC / 50-60Hz 0.2A
Output: 5VDC, 2.0A 5/2.5mm jack
Power Consumption 3 watts
Warranty
Limited Warranty 2 year warranty

Contact Info

Email: alston@fiberlinker.com Skype: alston224
