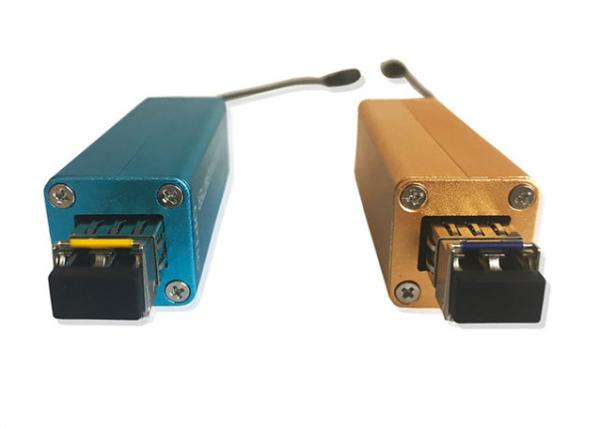

Rattler Gear 3G-SDI fiber optic extender with SFP optical module
Rattler Gear 3G-SDI fiber optic extender with SFP optical module
Rattler Gear 3G-SDI fiber optic extender with SFP optical module
Rattler Gear 3G-SDI fiber optic extender with SFP optical module
Rattler Gear 3G-SDI fiber optic extender with SFP optical module
Rattler Gear 3G-SDI fiber optic extender with SFP optical module
Specifications
Brand Name :
Fiber Linker
Model Number :
FL4001MN(MINI)
Place of Origin :
China
MOQ :
1pair
Price :
190USD
Payment Terms :
TT in advance
Delivery Time :
3 days
Packaging Details :
Cartoon
Signal :
3G-SDI
Support :
pathological sdi signal
Size :
MINI KIT
Fiber :
LC
Distance :
20KM
compatible :
HD/SD-SDI, ASI
Quality :
broadcast
Description

1. Overview

Fiber Linker’s 3G-SDI Fiber Optic Extender offers the digital transmission of fully uncompressed SDI (270Mbps),HD-SDI (1.485Gbps) , 3G-SDI(2.97Gbps)by single fiber overbroadcast quality with audio, RS485/RS232/RS422 serial data, Loopback output and IP Ethernet transmission. It is broadcasting quality, could compatible with ASI, TS stream.

2. Features

Our 3G-SDI Fiber Extender series support hot plug, stand-alone, 1U rack mount and 4U rack mount, we also could add other business or functions according to the requirements of customers. OEM&ODM is acceptable. If you have any requirements about video transmission over fiber optic, just contact us, we will supply the best solution

3. Specifications

3G-SDI Input

3G-SDI Output

channels

1

Channels

1

Signal standard

SMPTE 424M,292M, 259M, 297M, 305M, 310M,M2S,DVB-ASI, DVB-SSI and other Telecom/Datacom rate (19.4Mb/s -2.97Gb/s)

Signal level

800mV nominal

Reflection loss

>15DB

Rise/drop time

200ps nominal

equalization

1694Acable,>100m@2970Mbps,Belden

1694Acable,>200m@1485Mbps,Belden 1694A cable, >350m@270Mbps,Belden

Reflection loss

> 15dB

connector

75Ω BNC

Overshoot

10% amplitude

Jitter: < 0.3UI

Optic

Others

Channels

1

Transmission distance

20KM

Type

single mode (multimode optional)

Operating temperature

-45°C~+50°C

Wavelength

1310nm /1550nm

Power

1A@12VDC

Reflection loss

> 15dB

Average time trouble-free

>100000 hours

Connector

LC/PC (ST/PC optional)

Case

Stand alone( 1U rack mount optional)

4. Applications

Remote OB Van/Truck Video Feeds;
Broadcast Studio Camera Feeds;
Long-haul Signal Transport;
TV station/video conference;
Lecture Hall Projector Connectivity;
Medical/Surgical Room Broadcast;
Small corporate campus video links
5. Ordering Information
FL4001MN(MINI) : 1-ch 3G-SDI,single fiber, LC, 20KM, MINI kit.
