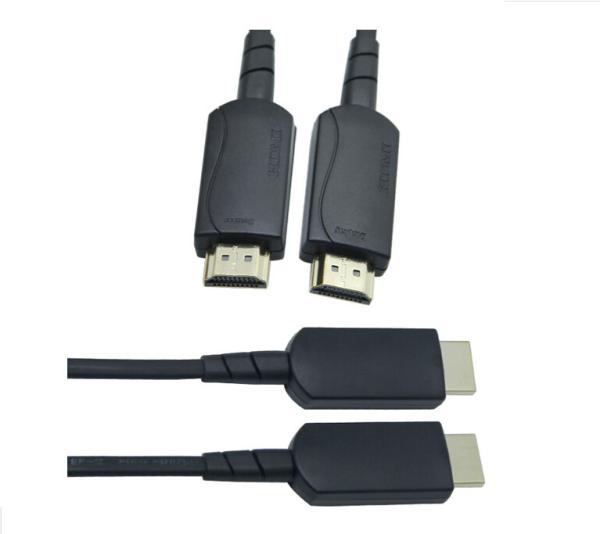

4K@60Hz HDMI 2.0 Active Optical AOC Fiber cable without power supply
4K@60Hz HDMI 2.0 Active Optical AOC Fiber cable without power supply
4K@60Hz HDMI 2.0 Active Optical AOC Fiber cable without power supply
4K@60Hz HDMI 2.0 Active Optical AOC Fiber cable without power supply
Specifications
Brand Name :
Fiberlinker
Model Number :
FL200H
Certification :
CE FCC
Place of Origin :
China
MOQ :
1 PCS
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1000 pcs
Delivery Time :
5 days
Packaging Details :
Carton
Name :
HDMI AOC
Cable :
fiber optic and coax
HDMI :
4K@60HZ
Distance :
15-300 meter optional
Description

Description

HDMI 2.0 Active Optical AOC Fiber cable which is also named as HDMI active optical cable has high performance, low power consumption and low cost.Using optical fiber cable to replace copper wire as the high-speed signal transmission medium, HDMI Active Optical Cable can perfectly transmit 1080P or 4k UHD image up to more than 100 meters or 300meters. Compared with the traditional copper wire, HDMI Active Optical Cable is much longer, softer, more slim, with better signal quality and perfect EMI/EMCfeature.Compared with other HDMI optical fiber transmission solution, HDMI Active Optical Cable is easy to use, has perfect compatibility, and no external power supply needed.

Features

200 meter Length.(Custom Length Available)

Low Power Consumption: 250mW (max). (Power Required)

Hot Plug and Play

Compatible with HDMI 1.4 standard.

Supports resolutions up to3840*2160/30p,3840*2160/60P,4096x2160/30P,4096*2160/60P

Supports 3840*2160/30P resolution with color depth up to 24 bits/pixel

Supports HDMI bit-rates up to 6 Gbps/color 10 Gbps total

Support HDCP 2.0

Self-detecting function for EDID information

No loss of signal – delivering crystal clear digital images instantly.

Hybrid optical cable with fiber and copper wire

Application

Digital Signage

LED signboards in streets and in stadiums

Medical Imaging Equipment

Airplane On-board Video System

Conference Room Video Equipment

Remote monitor for traffic, industrial, military control

LCD, Projector, Plasma display connection

Large video wall system

TV Broadcast Station

Home Theater

Specifications

Item Description
Units Transmitter (Source) Receiver (Sink)
HDCP & DDC HDCP 2.0 Fully Support bi-directional EDID and HDCP communication
Video Bandwidth 6Gbps/x3Channel (max)+ Clock.

Supported

Resolution & Distance

 3840*2160/30p,4096x2160/30P,P up to 200 meters
O/E Converter 4 channel 850 nm VCSEL array 4 CH GaAs PD array
Connector Type HDMI type A
Cable Type Hybrid type with OM3 fiber and copper wire
Cable Length 15m/20m/30m/40m/50m/60m/70m/80m/90m/100m (with +/-30cm tolerance) Custom length available.

Cable Outer Diameter

 5.2mm
Jacket Outer Material PVC/TPU(Custom)
Cable Weight TBD Cable Weight TBD
Cable Color TBD Cable Color TBD
Differential Input 100 ohm (typ)
Power Consumption 250mW (max)
Power Supply Non external power required
