4 channels H.265, MPEG4 SDI encoder to ASI and IP
4 channels H.265, MPEG4 SDI encoder to ASI and IP
4 channels H.265, MPEG4 SDI encoder to ASI and IP
4 channels H.265, MPEG4 SDI encoder to ASI and IP
Specifications
Brand Name :
Fiberlinker
Model Number :
FL-1145
Certification :
CE FCC
Place of Origin :
China
MOQ :
1 PCS
Supply Ability :
100 sets
Delivery Time :
5 days
Packaging Details :
Carton
Description

Overview

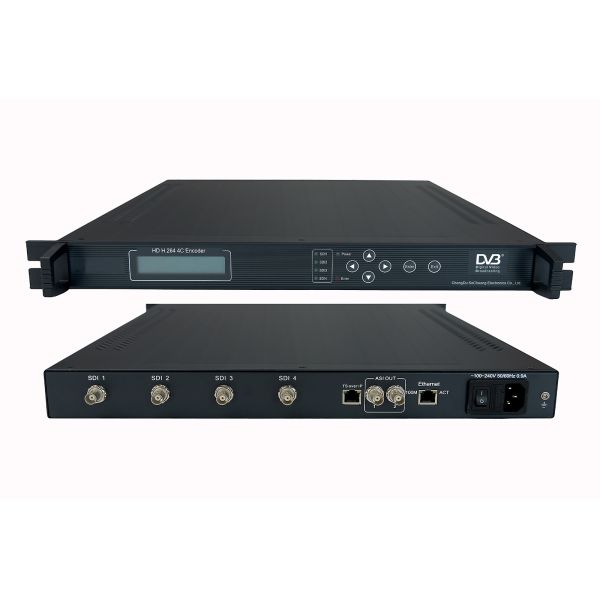

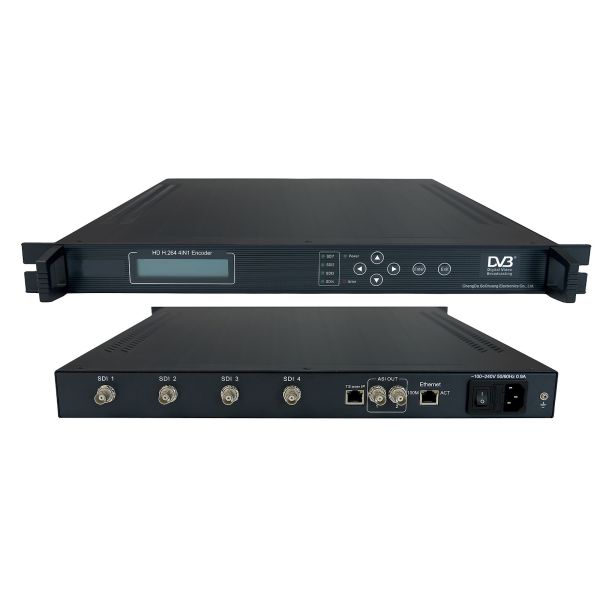

FL-1145 is 4 channels HD-SDI to ASI and IP Encoder. 4-channel MPEG-4 AVC/H.264 HD (High Definition) SDI encoder has 4×SDI input and generates ASI (DVB, BNC) transport stream and 4×SPTS (TS over UDP) output. It supports multiple HD formats including 1080i/p and 720p. It suits 1U rack and provides front panel LCD operation and NMS (Network Management Software) controlling. Its high-integrated and cost-effective design makes it widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting and terrestrial digital TV, etc.

Features

H.264/AVC High Profile Level 4.0 video encoding, advanced video pretreatment algorithm, MPEG-1 audio encoding

4×SDI input

Support multiple HD formats including 1080i/p and 720p

LCD/Keyboard control by front panel and network management by Ethernet

Technical Specification

Input 4×SDI BNC interface
Video Coding 4:2:0 encoding H.264 HP@L4 MP@L3
H.264 Adaptive Field Frame (AFF)
H.264 Field-Based (FB)
full HD: 1920×1080×60/50i/p, 1280×720×60p/50p, 720×480×60i (NTSC), 720×576×50i (PAL)
Standard ISO/IEC14496-10 (H.264/MPEG-4 AVC)
Audio Coding Bitrate 128, 160, 192, 224, 256, 320, 384Kbps
Property MPEG-1 Layer2
Sample Bitrate 32KHz, 44.1KHz, 48KHz
Output 2×ASI DVB standard, BNC interface
IP IP/UDP (TS over IP), SPTS/Unicast/Multicast
Output Bitrate 1 to 20Mbps (4:2:0) per channel
Control NMS (Ethernet port, RJ-45), Keyboard + LCD
General Features Size 482mm×410mm×44mm
Temperature Range 0~45°C (Operation); -20~80°C (Storage)
Power 100-240VAC, 50Hz, 25W

Keywords: HD-SDI Encoder with ASI and IP out, HD-SDI IPTV Encoder, HD-SDI to IP encoder. HD-SDI to ASI Encoder
